l Single-mode bypass module: IOM-2SM-BE
l Multi-mode bypass module: IOM-2MM-BE
SG-6000-X7180 uses IOM-2SM-BE and IOM-2MM-BE modules.

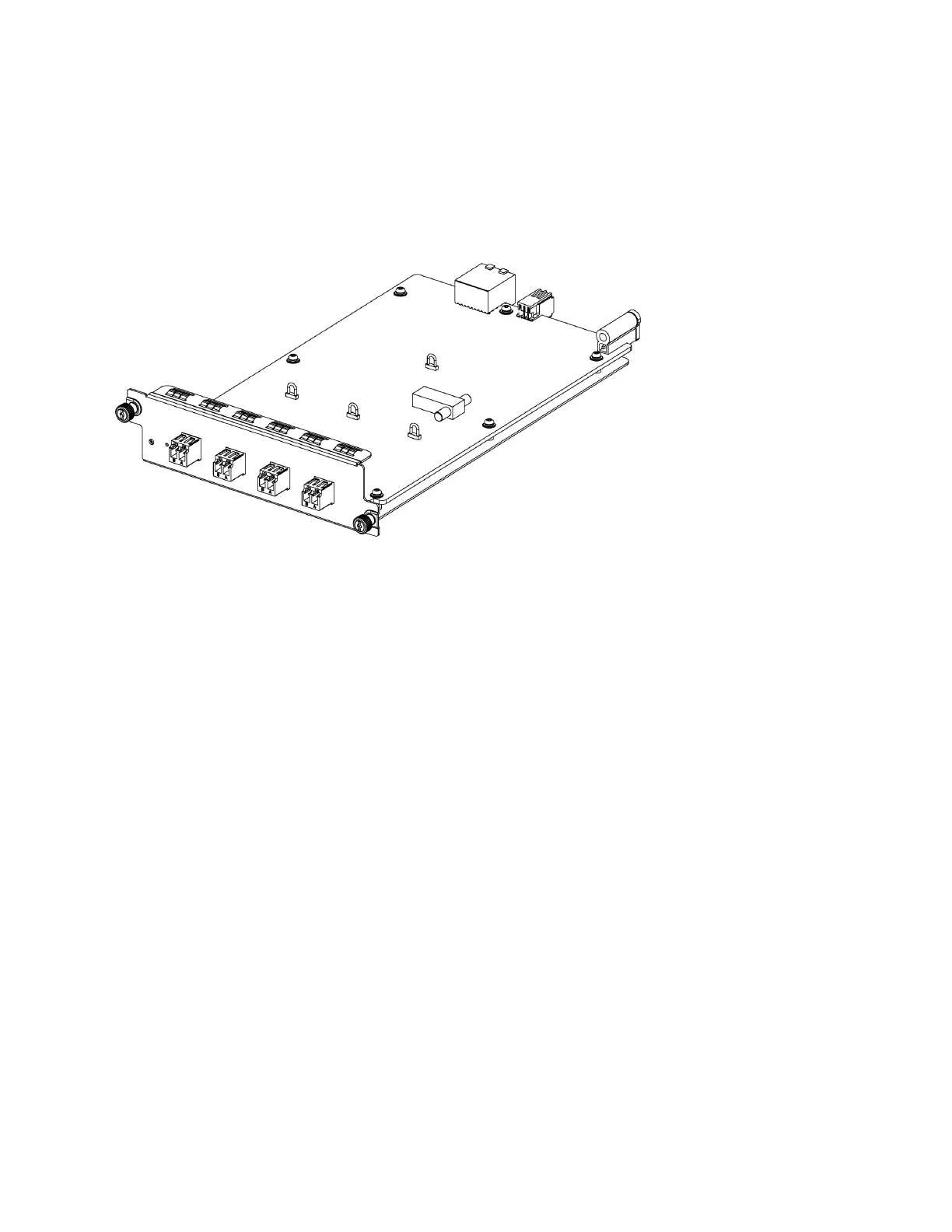

IOM-2SM-BE/IOM-2MM-BE is shown as below:
Power Module
Eight power modules can be installed in SG-6000-X10800. The power of 220V AC power mod-
ule is 1600W (in the country or region where the standard voltage is 110V, the power is 800W)
and the power of -48V DC power module is 1100W. You should install at least three (in the coun-
try or region where the standard voltage is 110V, at least six) 220V AC or four -48V DC power
modules to power the device.
Four power modules can be installed in SG-6000-X9180. The power of 220V AC power module
is 1600W (in the country or region where the standard voltage is 110V, the power is 800W) and
the power of -48V DC power module is 1100W. You should install at least two (in the country or
region where the standard voltage is 110V, at least three) or two -48V DC power modules to
power the device.
Four power modules can be installed in SG-6000-X8180. The power of 220V AC power module
is 1300W (in the country or region where the standard voltage is 110V, the power is 1000W) and
the power of -48V DC power module is 1300W. You should install at least one 220V AC power
module (in the country or region where the standard voltage is 110V, two are recommended) or
Chapter 1 Product Profile 39
