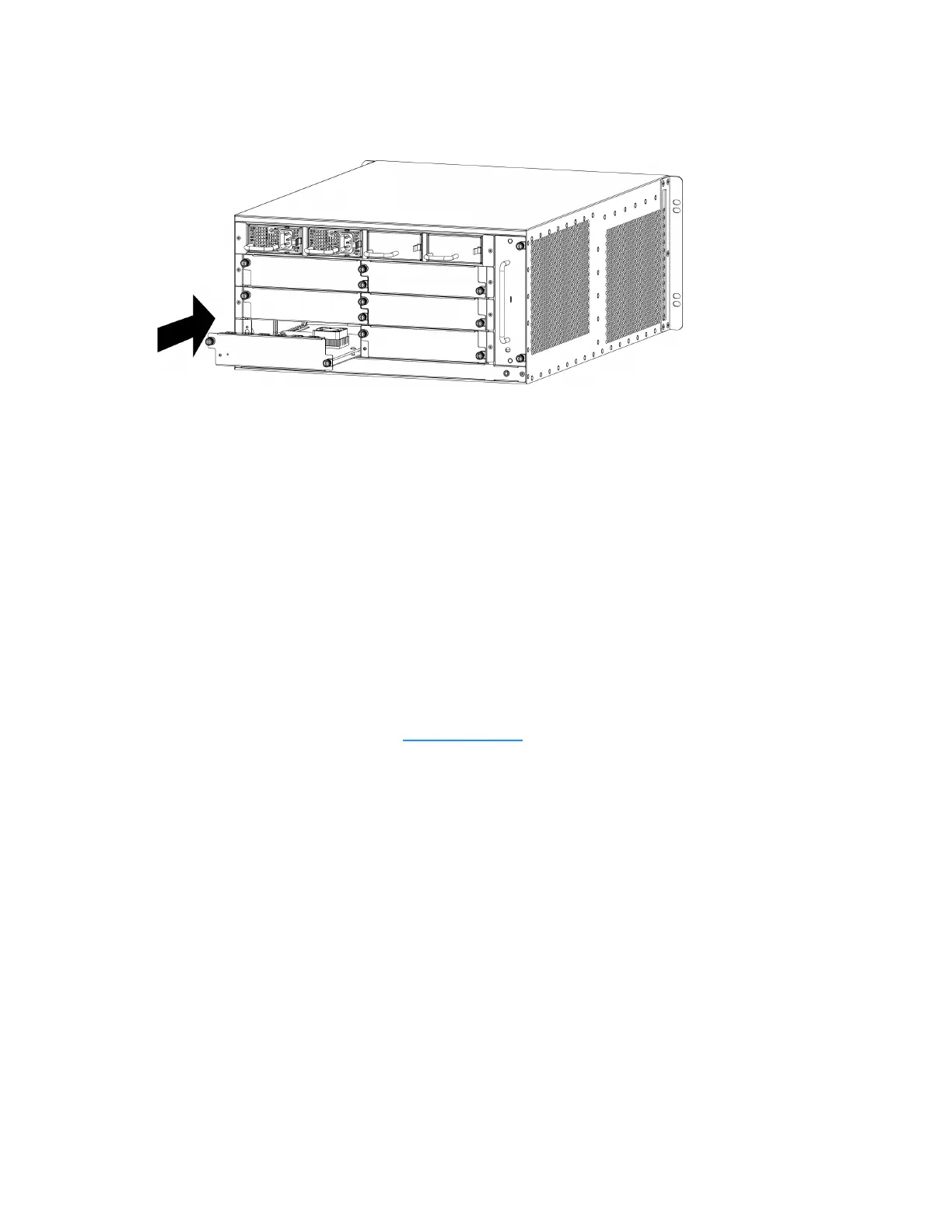

5. Position the SCM so that its front side faces you, and slide the SCM into the slot until you
feel resistant, as shown below.
6. Tighten the screws on the SCM with a cross screwdriver.
Installing an SSM
The device requires at least one SSM and it supports up to 10 SSMs. SSM is located in Slot1 to
Slot10.
The following section takes SSM-20 as an example to describe the installation of SSM.
To install an SSM, take the following steps:
1. Wear an electrostatic discharge (ESD) strap around your bare wrist and connect the strap to
an ESD point on the chassis. See ESD Prevention.
2. Take the SSM out of its antistatic bag.
3. Identify the slot of SSM.
4. If the slot is covered with a blank plate, loose its screws with a cross screwdriver and
remove the plate.
Chapter 3 Installation 104
