1. Make sure the power module will not be powered during the installation process.
2. Wear an electrostatic discharge (ESD) strap around your bare wrist and connect the strap to
an ESD point on the chassis. See ESD Prevention.
3. Face the back panel of the chassis.

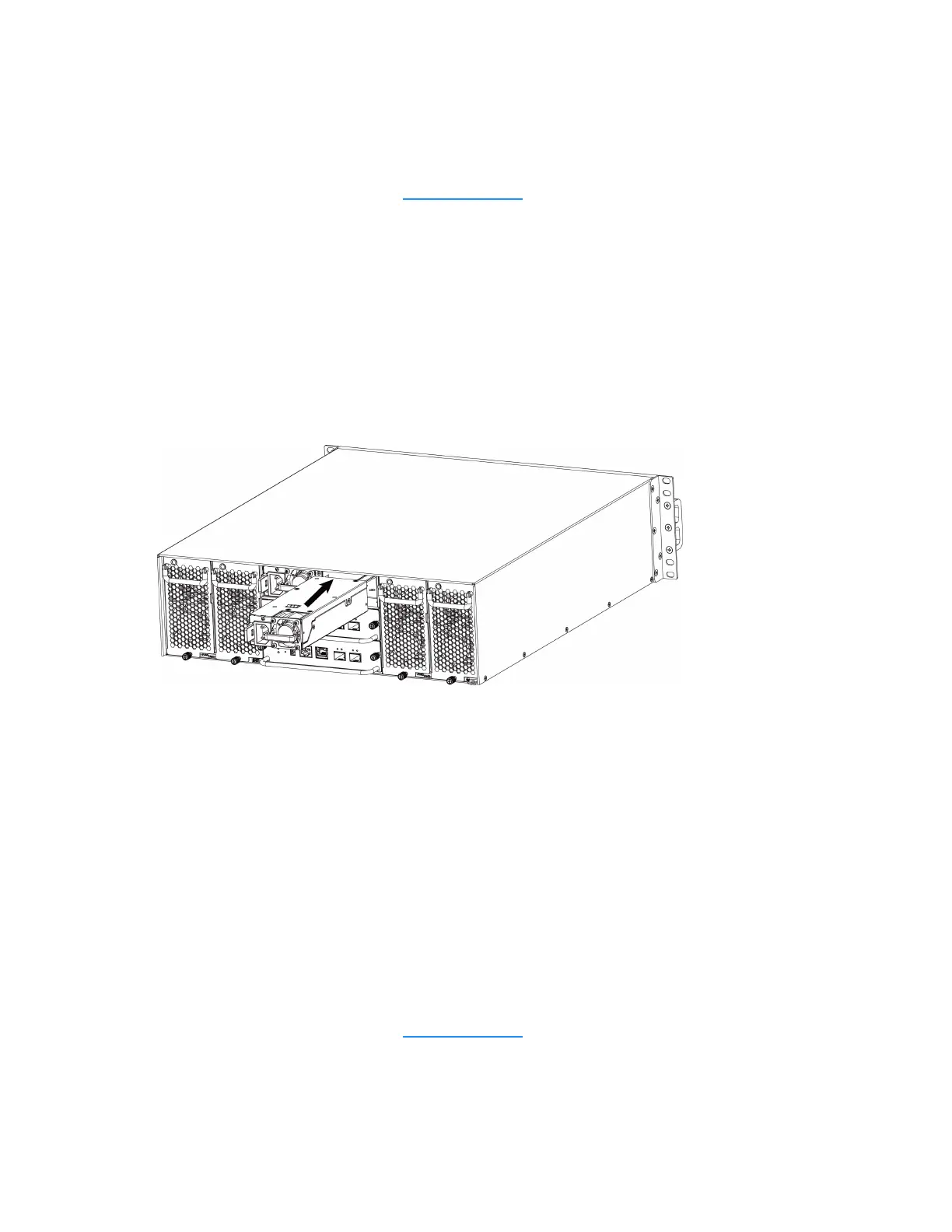

4. Position the power module in the direction shown. Make the gold finger on the upside, and
make the outline of the power module and the power slot even. Slide the power module
straight into the slot till it is fully seated in the chassis slot. You can hear a click of the lock
stuck in the chassis. Verify that the panel of the power module is plain with the chassis
panel.
Installing a Power Module of SG-6000-X7180
Installing an AC Power Module
To install an AC power module, take the following steps:
1. Make sure the power module is not connected to any power source and there is no chance it
will be powered during the process.
2. Wear an electrostatic discharge (ESD) strap around your bare wrist and connect the strap to
an ESD point on the chassis. See ESD Prevention.
111
Chapter 3 Installation
To Next Page
