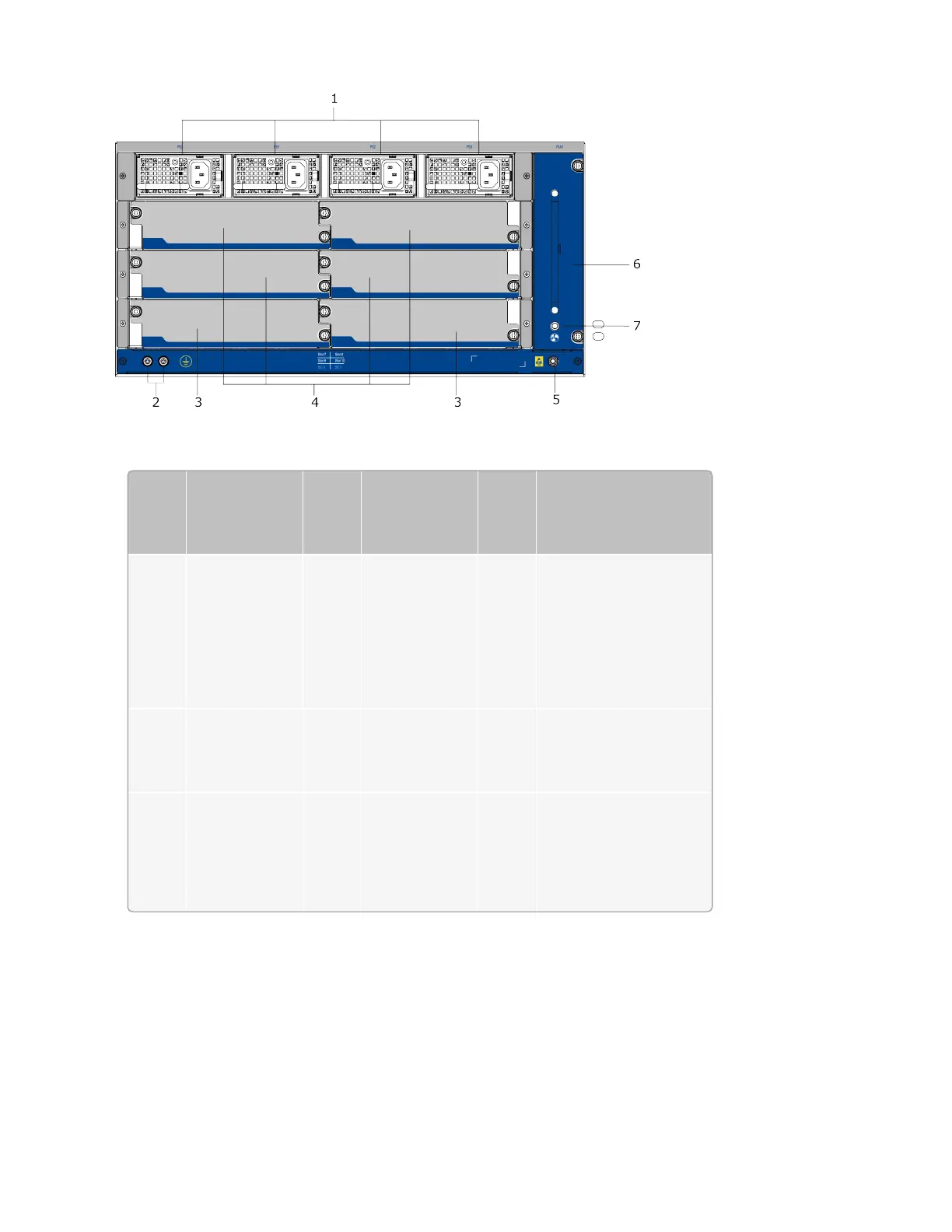

SG-6000-X7180 Back Panel Description is shown as below:
No.
Label &
Description
No.
Label &
Description
No. Label & Description
1 PS0 - PS3:
Power supply
slots
4 Slot7 -
Slot10: Gen-
eral expan-
sion slots
7 Fan1 LED
2 Grounding
screws
5 ESD: ESD
point
3 SC0 - SC1:
SCM expan-
sion slots
6 Fan1 tray
LED Indicators
The following table describes the LED indicators of SG-6000-X10800, SG-6000-X9180, SG-
6000-X8180 and SG-6000-X7180.
SG-6000-X10800 and SG-6000-X9180LED Indicators Description is shown as below:
10
Chapter 1 Product Profile
