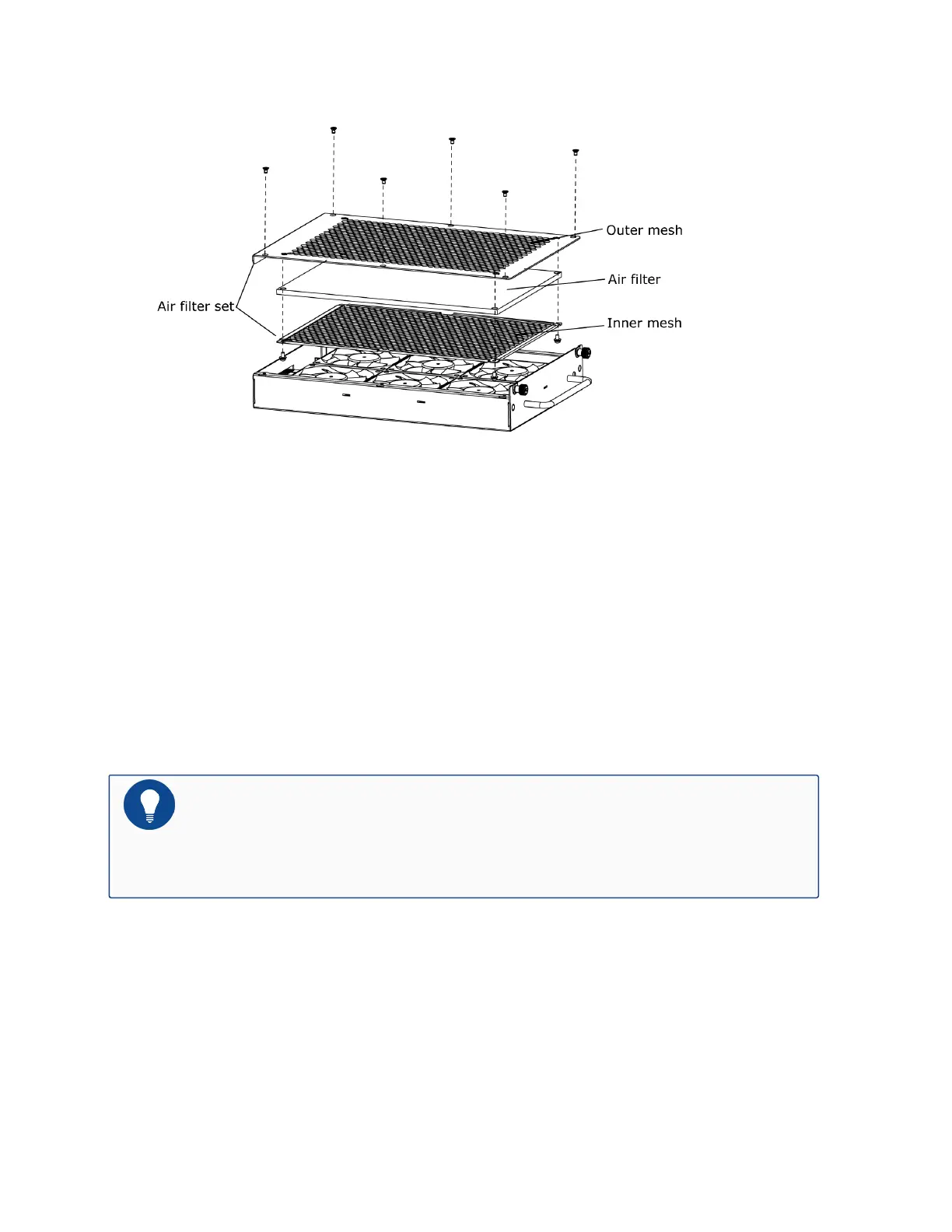

7. Take out the air filter, as shown below.
8. Lay the replacement air filter over the outer mesh properly.
9. Cover the air filter with the inner mesh and tighten the screws removed in Step 5 to secure
the meshes and the air filter.
10. Place the air filter set over the fan tray and tighten all the screws removed in Step 3.
11. Grasp the fan tray with the front panel screws on the right side of your palm. Slide the fan
tray into the slot until you feel resistant.
12. Tighten the screws on the fan tray.
Notes: To prevent over-heating, you should install the replacement fan tray within
one minute after the existing fan tray is removed. If the system detects over-heat-
ing, it will automatically switch off the power supply.
Chapter 5 Hardware Maintenance and
Replacement
154
