7.3 Displaying detailed trends
103
Chapter 7 Monitoring Fluctuations in Measured Val-
7
Y-axis scale (Ydiv)
When you want to reduce the graph, make the scale smaller.
When you want to enlarge the graph, make the scale larger.
X-axis scale (Tdiv)
When you want to reduce the graph, make the scale smaller.
When you want to enlarge the graph, make the scale larger.

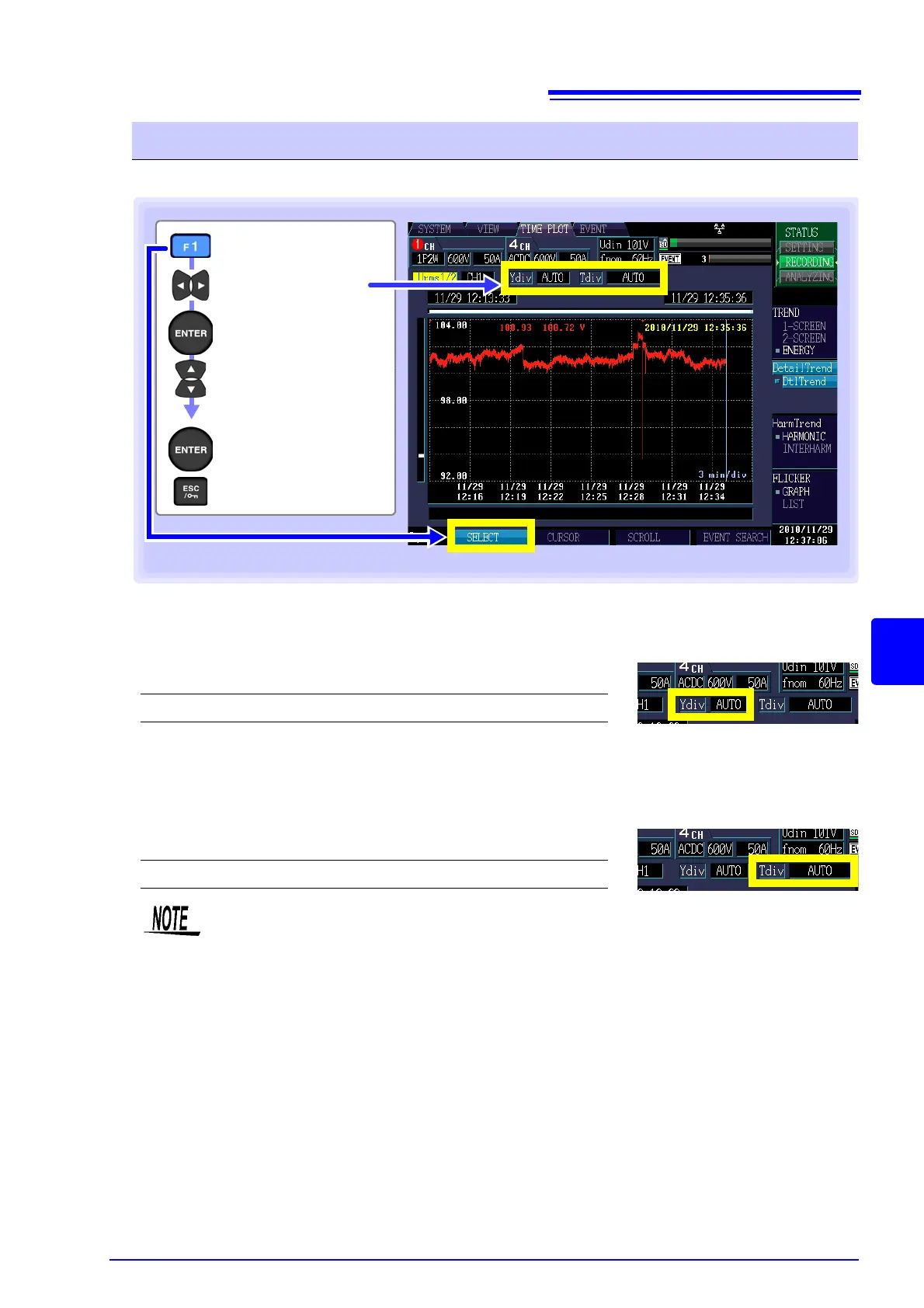

Enlarging or reducing the graph (changing the X- and Y-axis scale)
Display the
pull-down menu
Select a setting
Accept the setting
Cancel
[SELECT]
Select a setting
Settings:(  : Default)
AUTO, x1, x2, x5, x10, x25, x50
Settings:(  : Default)
AUTO, From 1min/div (varies with TIME PLOT interval)
AUTO scaling is used during recording. This cannot be changed.
