Traffic control
Basic - L3P
Release
3.1
06/07
8.6
VLANs
161

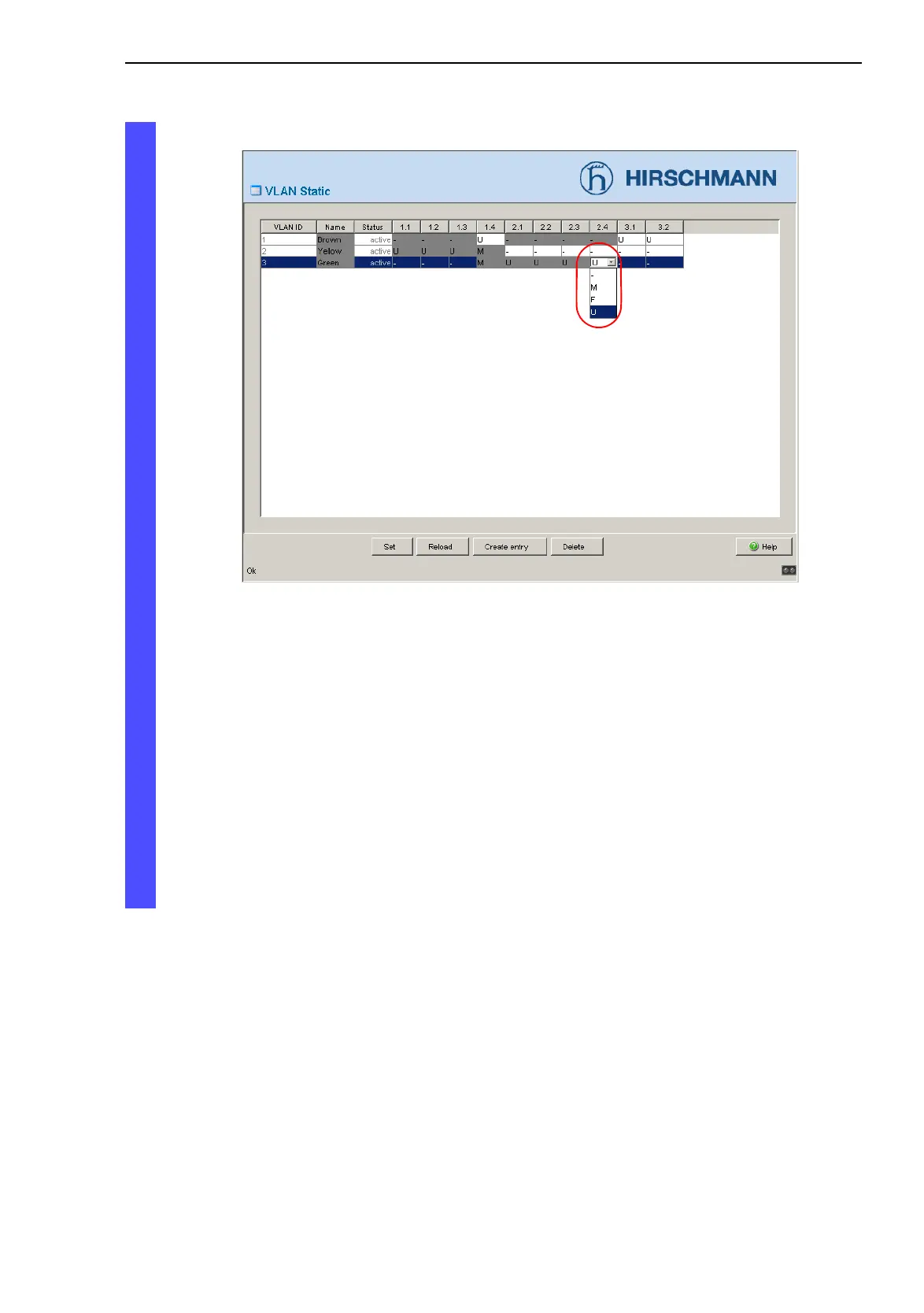

Fig. 47: Defining the VLAN membership of the ports.
Ports 1.1 to 1.3 are assigned to the terminal devices of the yellow VLAN
and ports 2.1 to 2.4 to the terminal devices of the green VLAN. As termi
-
nal devices normally do not sent data packets with a tag, the setting U
must be selected here.
Port 1.4 serves as uplink port to the next Switch. It is assigned the setting
M. The VLAN information can thus be passed on.
