4.2 Loading the Software from the tftp Server
Basic - L3P
Release 3.1 06/07
4.2 Loading the Software from
the tftp Server
For a tftp update you need a tftp server on which the software to be loaded
is stored (see
“tftp server for software updates” on page 207).
V Select the Basics:Software dialog.
The URL identifies the path to the software stored on the tftp server. The
URL is in the format tftp://IP address of the tftp server/path name/file
name (e.g.
tftp://149.218.112.5/mice/mice.bin).
V Enter the path of the Switch software.
V Click “tftp Update” to load the software from the tftp server to the
Switch.
.

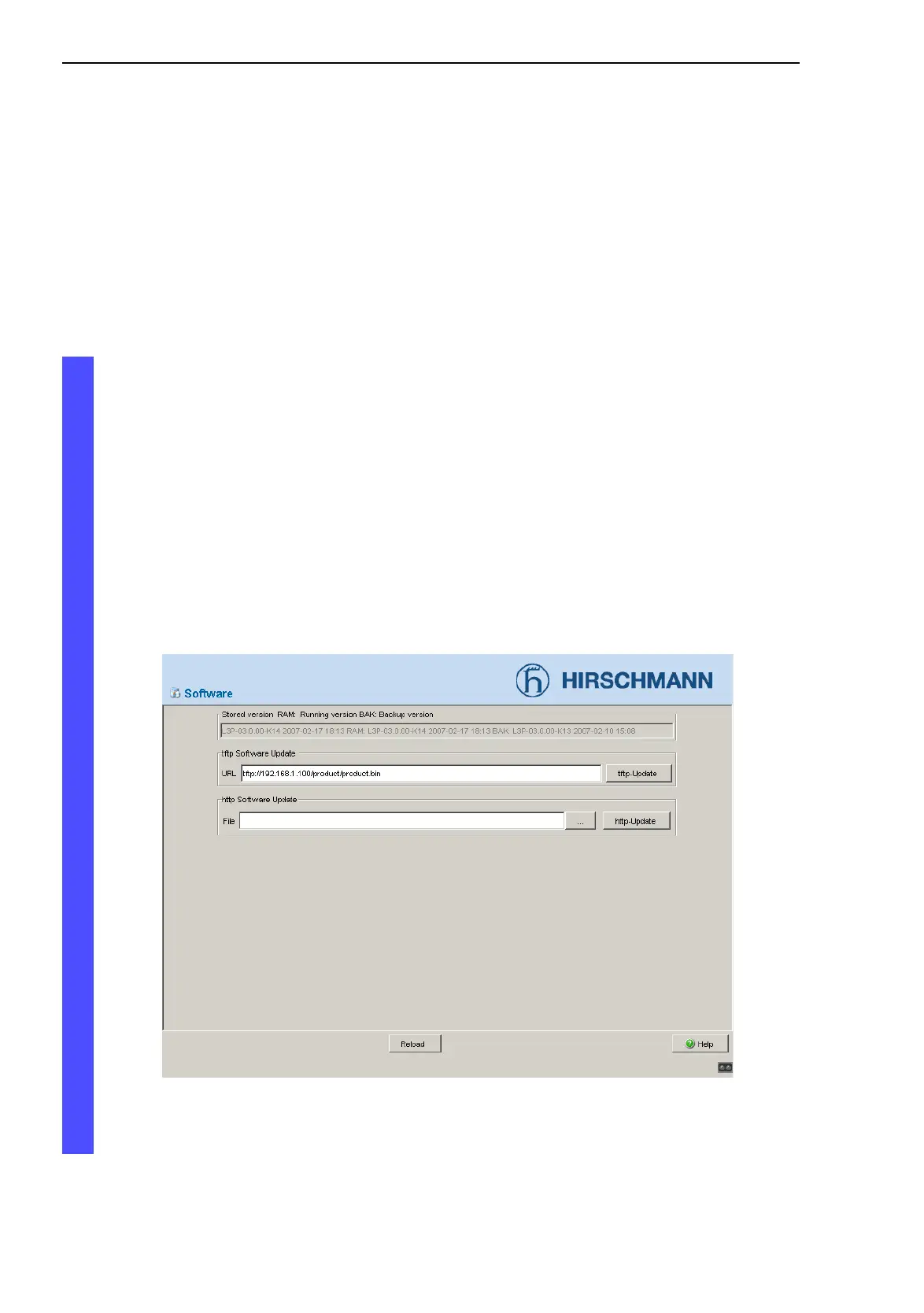

Fig. 19: Software update dialog
