Setting up the configuration

Basic - L3P

Release

3.1

06/07

A.4

Preparing for access via SSH

213

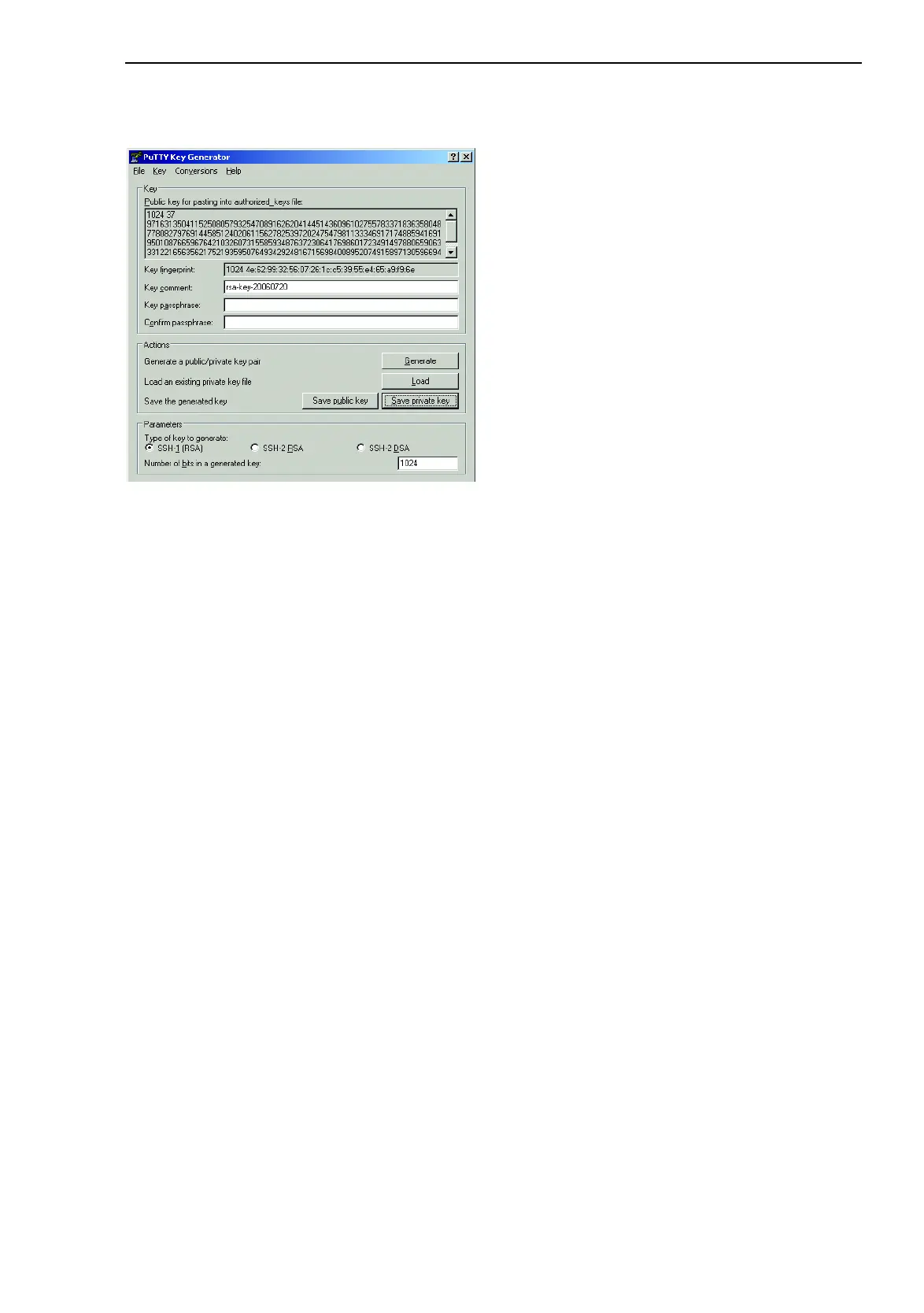

Fig. 80: PuTTY key generator

The OpenSSH Suite offers experienced network administrators a further

option of generating the key. To generate the key enter the following

command:

ssh-keygen(.exe) -q -t rsa1 -f rsa1.key -C '' -N ''
