Protection from unauthorized access

6.4

Port access control

Basic - L3P

Release

3.1

06/07

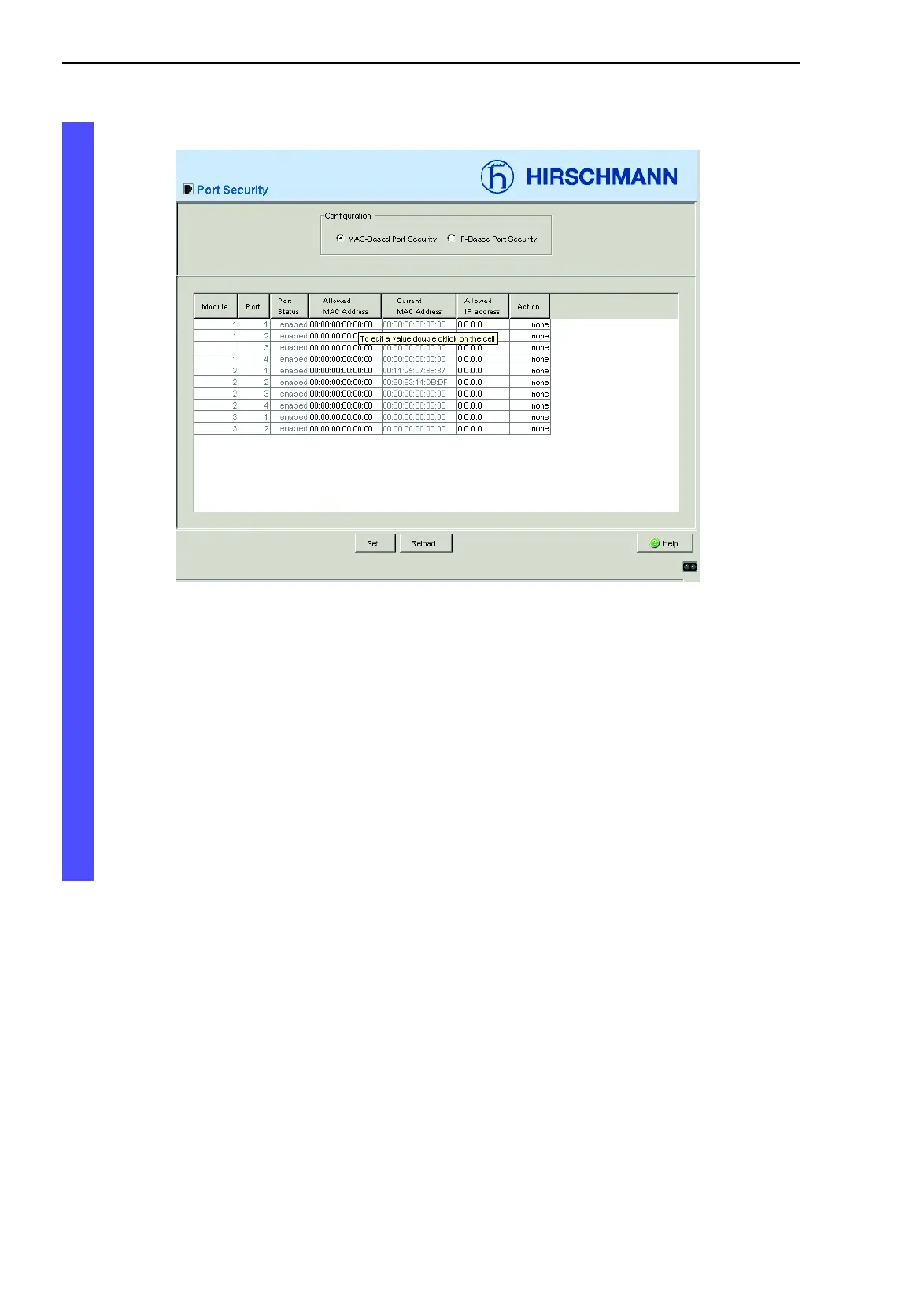

Fig. 23: Port Security dialog

Note: This entry in the port configuration table is part of the configuration

(

“Loading/saving settings” on page 51) and is saved together with the

configuration.

Note: An alarm (trap) can only be sent if at least one recipient is entered

under

“Configuring traps” on page 168 and both the appropriate status

and “Port Security” are marked.
