9.1.1 Connecting Fibre Channel Cables
1. Connect the Fibre Channel cables after making sure of the ports to be connected on the rear face of the
Storage System.
NOTE : When bending the Fibre Channel cable to connect it, give it a bend with a long radius
(not less than 40 mm) so as not to apply the cable and the connector excessive stresses.

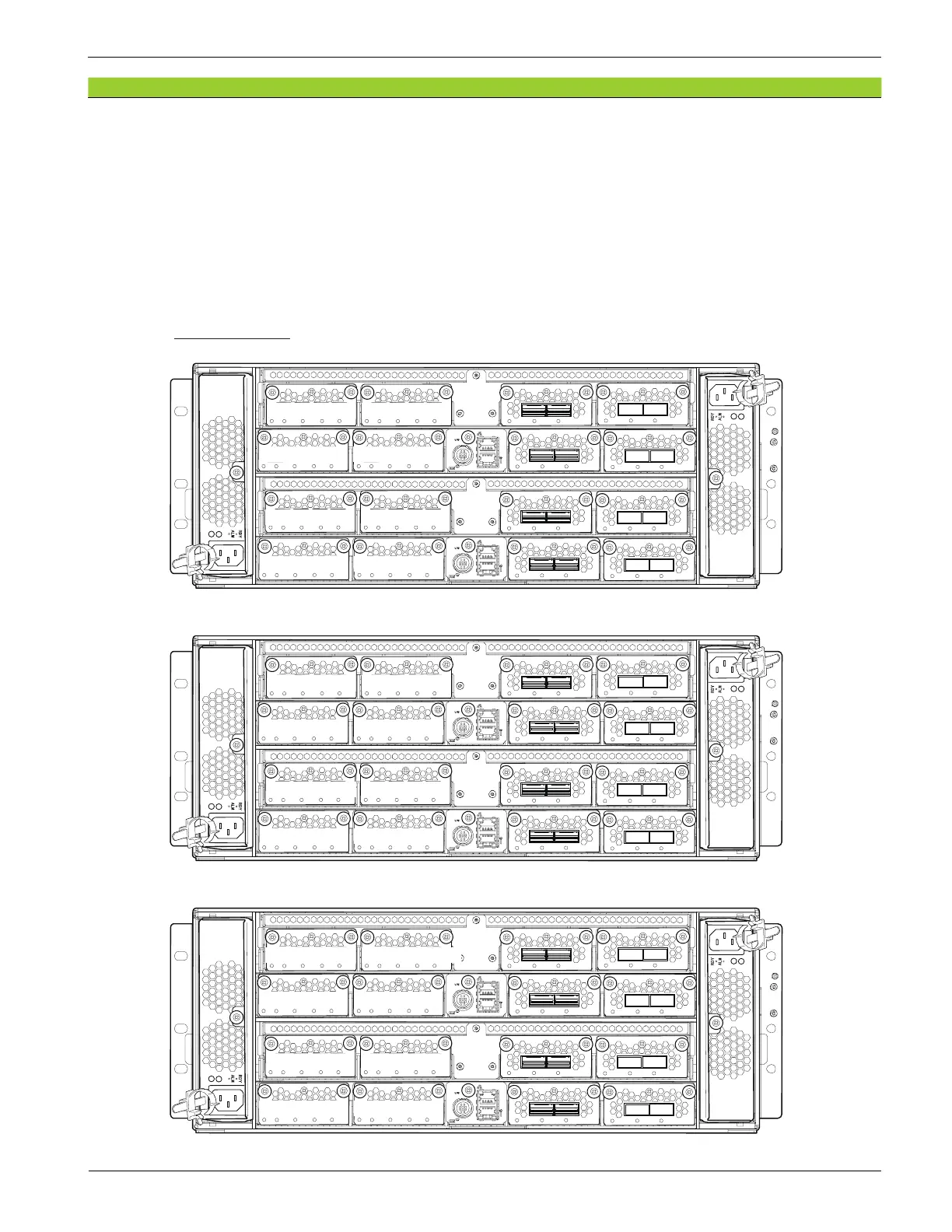

Figure 9-4 Connection Port for Fibre Channel Cables (16 Gbps (4 Port) FICON/16, 32 Gbps
(4 Port) FC) (1/2)
CHB Port Number
Rear view of DKC-0
1B/3B/5B/7B 1D/3D/5D/7D
1F/3F/5F/7F
1A/3A/5A/7A
1E/3E/5E/7E
1H/3H/5H/7H
1C/3C/5C/7C
1G/3G/5G/7G
Rear view of DKC-1
2B/4B/6B/8B 2D/4D/6D/8D
2F/4F/6F/8F
2A/4A/6A/8A
2E/4E/6E/8E
2H/4H/6H/8H
2C/4C/6C/8C
2G/4G/6G/8G
Rear view of DKC-2
1K/3K/5K/7K 1M/3M/5M/7M
1P/3P/5P/7P
1J/3J/5J/7J
1N/3N/5N/7N
1R/3R/5R/7R
1L/3L/5L/7L
1Q/3Q/5Q/7Q
