Hitachi DKC910I - Fixing HSNBX

Copyright © 2019, 2021, Hitachi, Ltd.
DKC910IHitachi Proprietary
[INST(IN)07-04-10]
Rev.2
INST(IN)07-04-10

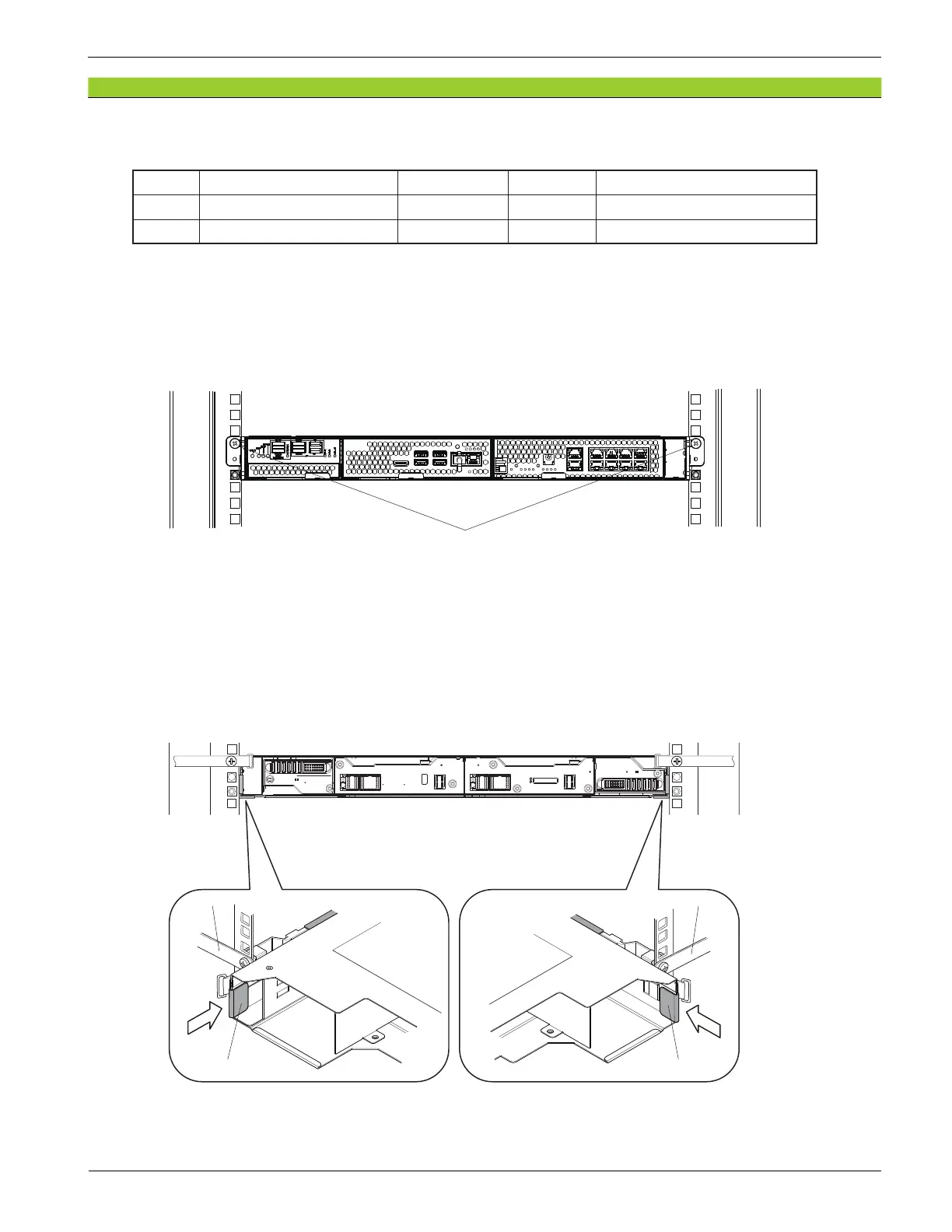

7.4 Fixing HSNBX
Table 7-5 Front Bezel Components List (Per One Unit)
Item No. Parts name Parts No. Quantity Comment
1 Front Bezel 5560931-A 1 Front Bezel
2 Binding Screw (M5 × 10) SB510N 2 For xing the HSNBX
1. Fixing the front side of HSNBX
Fix each of the right and left places on the front side of HSNBX with two binding screws.
Figure 7-12 Fixing the Front Side of HSNBX
2. Fixing the rear side of HSNBX
• For the rail type without a stopper, go to Step 3 to install the stoppers.
• For the rail type with a stopper, push the stoppers to secure the right and left sides of HSNBX (see
Figure 7-13).
Figure 7-13 Fixing Stoppers (for Rail Type without a Stopper)
Binding screws
Front view
Rear view
Stopper Stopper
Loop cable tie Loop cable tie
