6. Mounting on a Rack Frame
6.1 Mounting Storage System on a Special Lifter
• Rack mounting and lifter operation should only be conducted by a person who has been
trained and qualied since the Storage System could turn over or a worker could be caught
under the Storage System.
• Be sure to perform the operation with two or more workers.
• Work carefully because the mass of the single DKC is about 75 kg, SBX is about 24 kg, UBX is
about 27 kg, FBX is about 38 kg, NBX is about 21 kg, and HSNBX is about 15 kg.

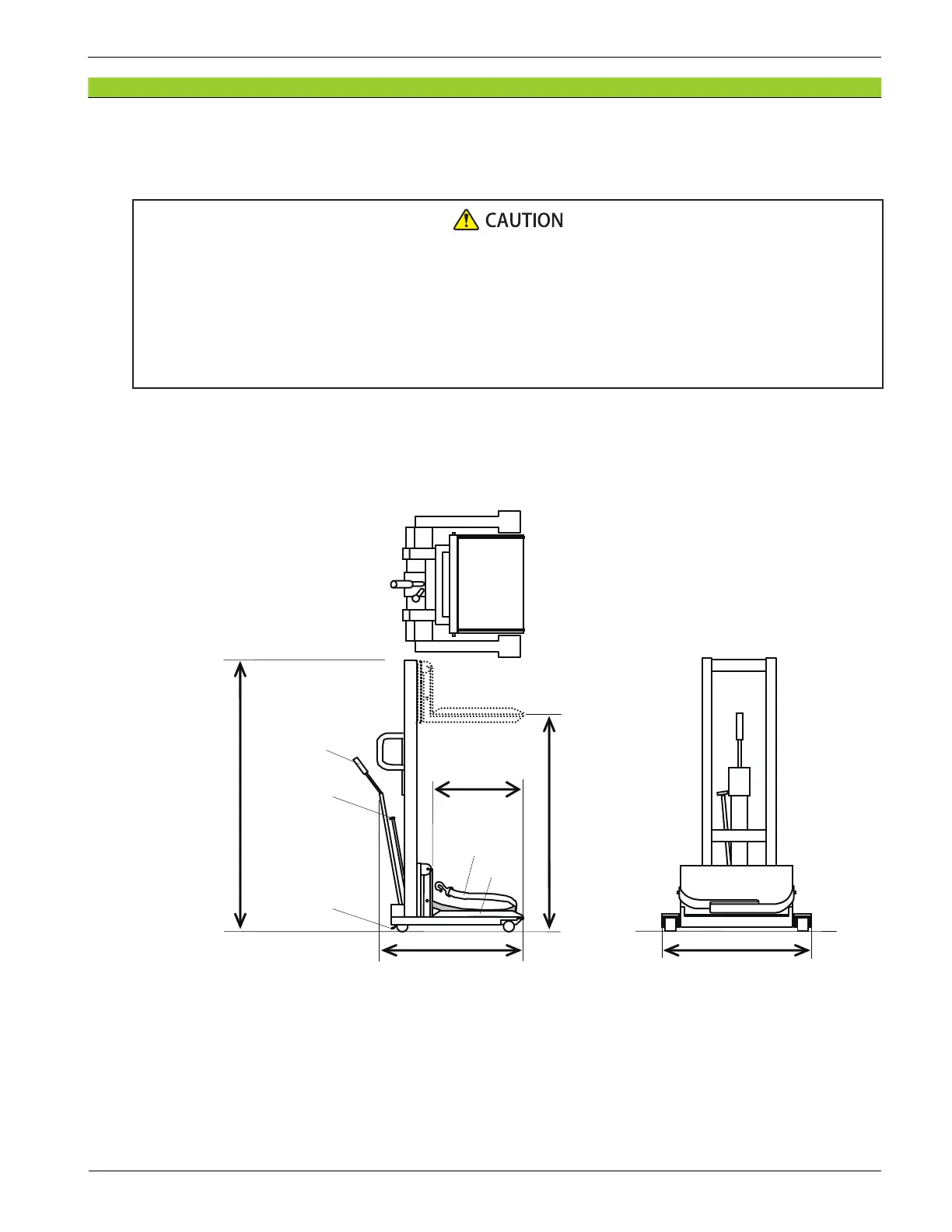

Figure 6-1 shows the external appearance of the special lifter.
Figure 6-1 External Appearance of the Special Lifter
Stopper
Base
Band
Handle
Valve
880 mm 970 mm
590 mm
1,900 mm
1,611 mm
