7.3 Fixing Drive Box (FBX)
Fix the Drive Box with the parts included in the Front Bezel.
Table 7-4 Components of Front Bezel
Item No. Parts name Parts No. Quantity Comment
1 Front Bezel (FBX) 3286818-A 1 FBFB
Including screws, plates, side
covers
2 COINLOCK MINI (R) KEY 3276491-001 1 Key for Front bezel
1. When installing Drive Box, x each of the right and left places on the front side of Drive Box with two
screws.

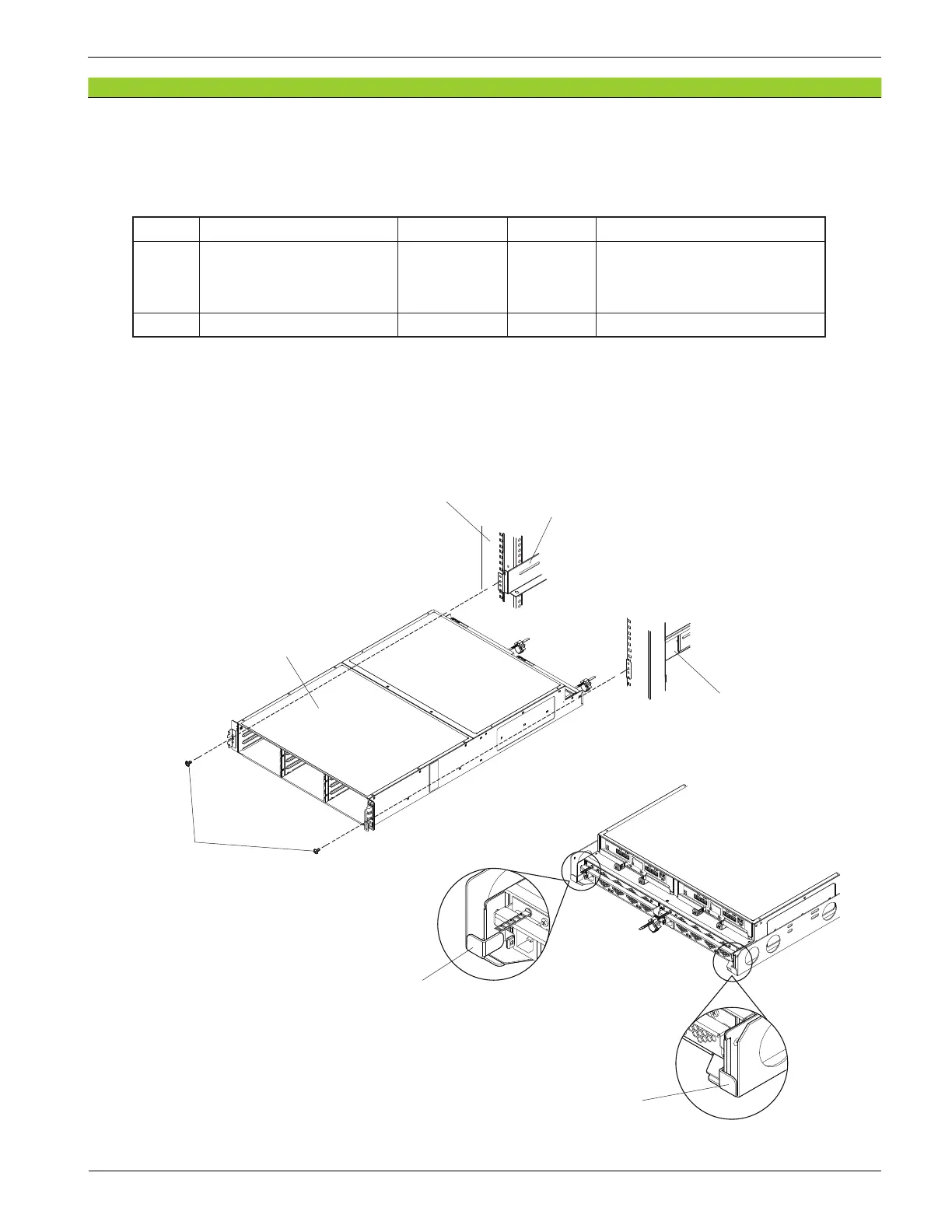

Figure 7-9 Fixing Drive Box (FBX)
Rail
Drive Box
Rail
Rack frame (front view)
Stopper
Stopper
Rear view
Screw
