9.2.2 Connection of X-Path Cables
NOTE: • When bending the X-path cable to connect it, give it a bend with a long radius (not
less than 40 mm) so as not to apply the cable and the connector excessive stresses.
Wind the cables to be φ 200 mm or more as a guide.
• If you insert it incorrectly, remove the X-path cable while pulling the tab of the
X-path cable.
• Before wiring X-path cables, unwind, stretch and untwist them. If they twist while
wiring, untwist and wire them.
• When inserting the connector into the socket, do not rotate the connector 90 degrees
or more. When rotating 90 degrees or more, rotate the connector and the cable
together, match the insertion direction of the connector and connect it. Before
wiring X-path cables, unwind, stretch and untwist them.
1. X-path cable connection
Connect the X-path cables by following the procedure below.
Check the connection locations of the connectors referring to “X-Path Cable Diagram” (LOC05-70).

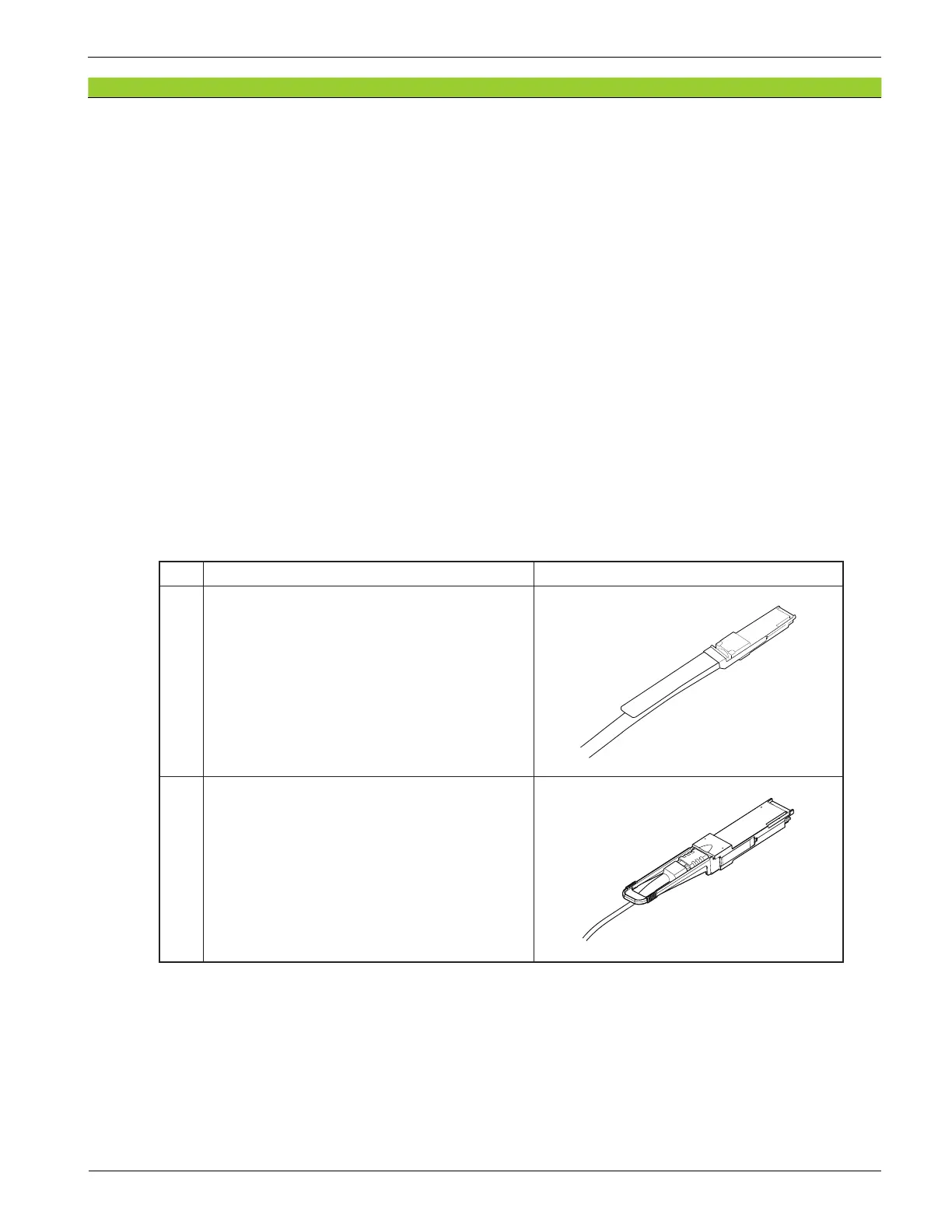

Table 9-5 Types of X-Path Cables
No. Model Shape
1 • DKC-F910I-MCC1/MCC1P
• DKC-F910I-MCC2/MCC2P
• DKC-F910I-MCC60/MCC60P
• DKC-F910I-MCC45/MCC45P
2 • DKC-F910I-MPC5/MPC5P
• DKC-F910I-MPC10/MPC10P+SQSFP/SQSFPP
• DKC-F910I-MPC20/MPC20P+SQSFP/SQSFPP
• DKC-F910I-MPC30/MPC30P+SQSFP/SQSFPP
• DKC-F910I-MPC1H/MPC1HP+SQSFP/SQSFPP
