9.2 Connecting X-Path Cables
9.2.1 Precautions when Connecting X-Path Cables
NOTE: • The rubber cap is attached to the X-path cable connector. Remove the rubber cap
before connecting the X-path cable.
• The X-path cable plug is not designed to distinguish between input and output. The
plug can be inserted in both the input port and the output port.
• Be careful when connecting the X-path cable. The tip of the X-path cable might be
inserted into a gap around the X-path port and damaged.
• Conrm that the X-path cable latch clicks and the cable is rmly connected.

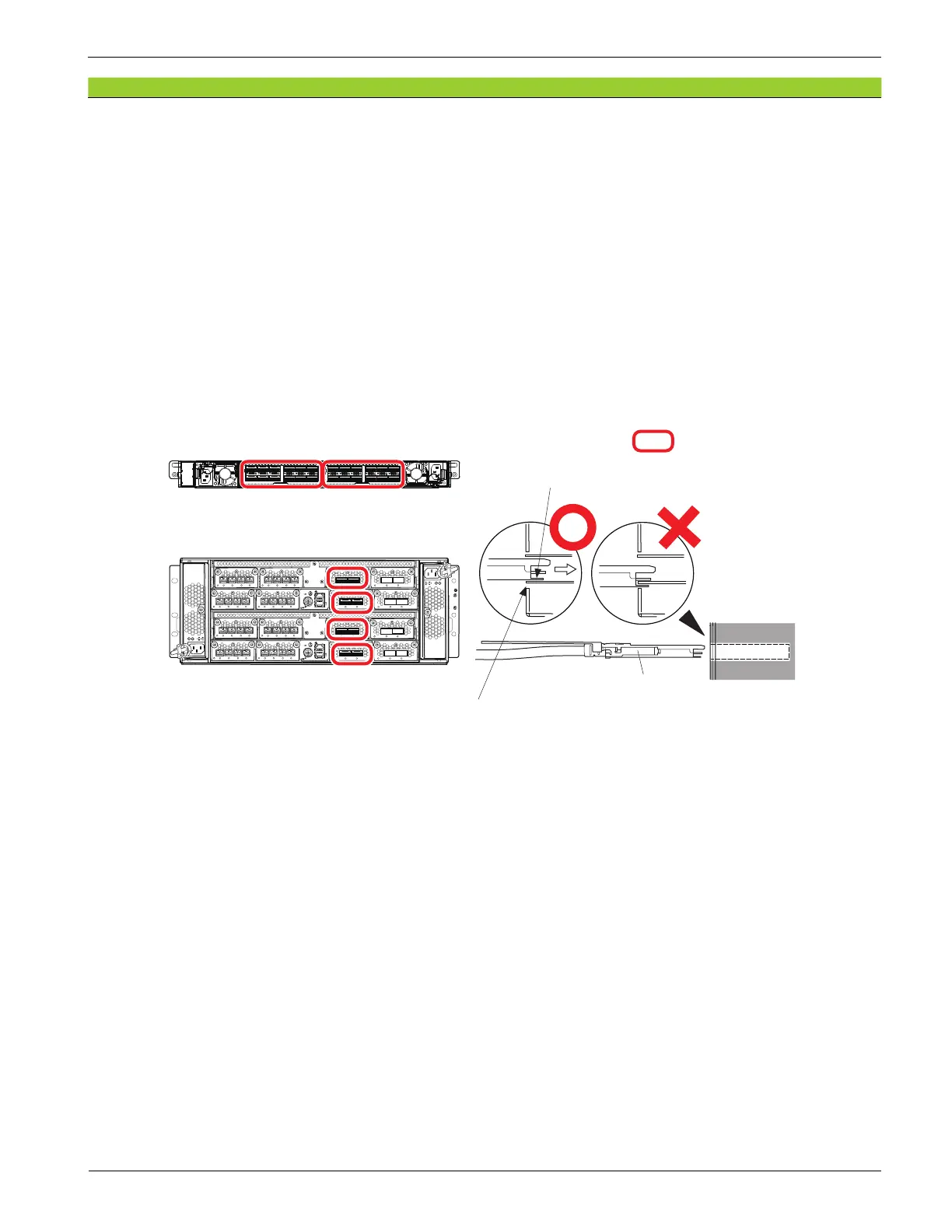

Figure 9-10 Note on Connecting the X-Path Cable
: X-path port
HSNBX (Rear view)
Tip of the X-path cable
DKC (Rear view)
Gap around the X-path port
X-path cable
