9.3 Connecting LAN Cables
9.3.1 Internal LAN Cable
Connect the LAN cables between HSNBX and DKC, between DKCs, or between HSNBXs.
1. The LAN cable kit (DKC-F910I-LC/LCP) for relay connection and the LAN cables (DKC-F910I-
LC06/LC5/LC5P/LC10/LC10P/LC20/LC20P/LC30/LC30P/LC1J/LC1JP) are required for LAN cable
connection to the LAN ports (U0-U3, L0-L3) on SSVP.
The following is the list of the required LAN cable options.
Table 9-6 List of LAN Cable Options
SSVP LAN Port Connection Destination Required Quantity of Options
(DKC-F910I-)
LC/LCP LC06/LC5/LC5P/
LC10/LC10P/
LC20/LC20P/
LC30/LC30P/
LC1J/LC1JP
SSVP0
(HSNBX-0)
Upper four ports
(U0 to U3)
DKC-0, DKC-1, or SSVP1 (when
DKC-F910I-HUB is installed)
1 2
Lower four ports
(L0 to L3)
DKC-2, DKC-3, DKC-4, or DKC-5 1 2 or 4
SSVP1
(HSNBX-1)
Upper four ports
(U0 to U3)
DKC-0, DKC-1, or SSVP0 1 2 or 4
Lower four ports
(L0 to L3)
DKC-2, DKC-3, DKC-4, or DKC-5 1 2 or 4

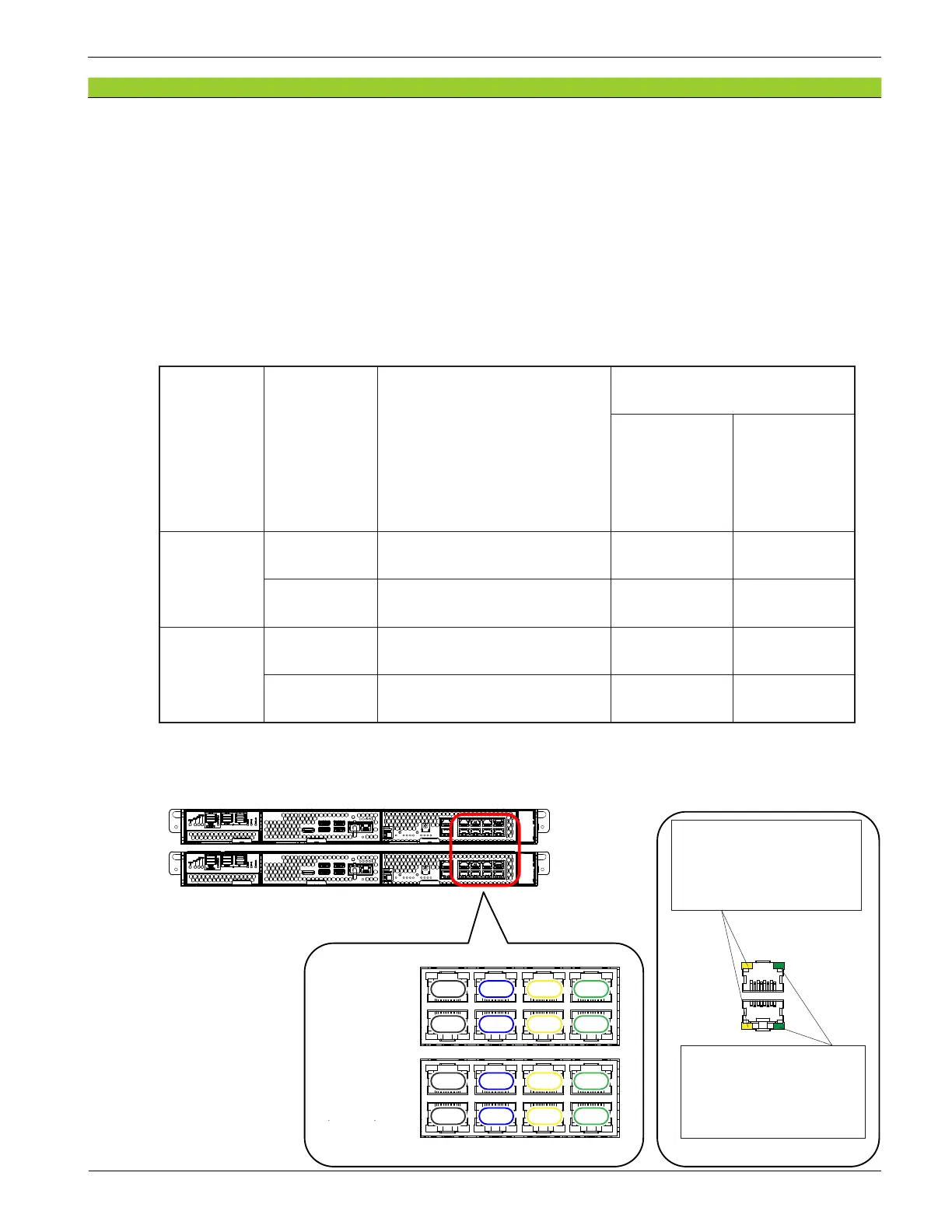

Figure 9-19 LAN Ports on SSVP
L0L1L2L3
L0L1L2L3
HSNBX-0 前面
HSNBX-1 前面
（SSVP 0）
（SSVP 1）
U0U1U2U3
U0U1U2U3
Front view of
HSNBX-1 (SSVP 1)
Front view of
HSNBX-0 (SSVP 0)
Link LED
Yellow (left)
Lighting: Linked up
Blinking: Sending or Receiving
Speed LED
Green (right)
Lighting: 1000Mbps
Blinking: 10Mbps/100Mbps
