7. Fastening Storage System
NOTE: If you use rails other than Hitachi Vantara rails, check that screws securing the rails,
and the like, are not protruded from the rack surface on which to install the Controller
Chassis and that the rack surface is flat (see “Notes for Installing Controller Chassis”
(INST(GE)01-01-50)).
NOTE: If you use Hitachi Vantara rails, Hitachi Vantara washer sets are necessary.
Be sure to use the washers.
7.1 Fixing Controller Chassis
Table 7-1 Front Bezel Components List (Per One Unit)
Item No. Parts name Parts No. Quantity Comment
1 Front Bezel 5559126-A 1 Front Bezel (DKC)
2 Binding Screw (M5 × 10) SB510N 8 For xing the Controller Chassis
and the bracket
1. Checking stoppers.
• For the rail type without a stopper, go to Step 2.
• For the rail type with a stopper, check that the rear right and left of the bottom of the Controller Chassis
are t in the stoppers (see Figure 7-1). When the Controller Chassis is disengaged from the stoppers,
install the Controller Chassis properly.
Go to Step 2.

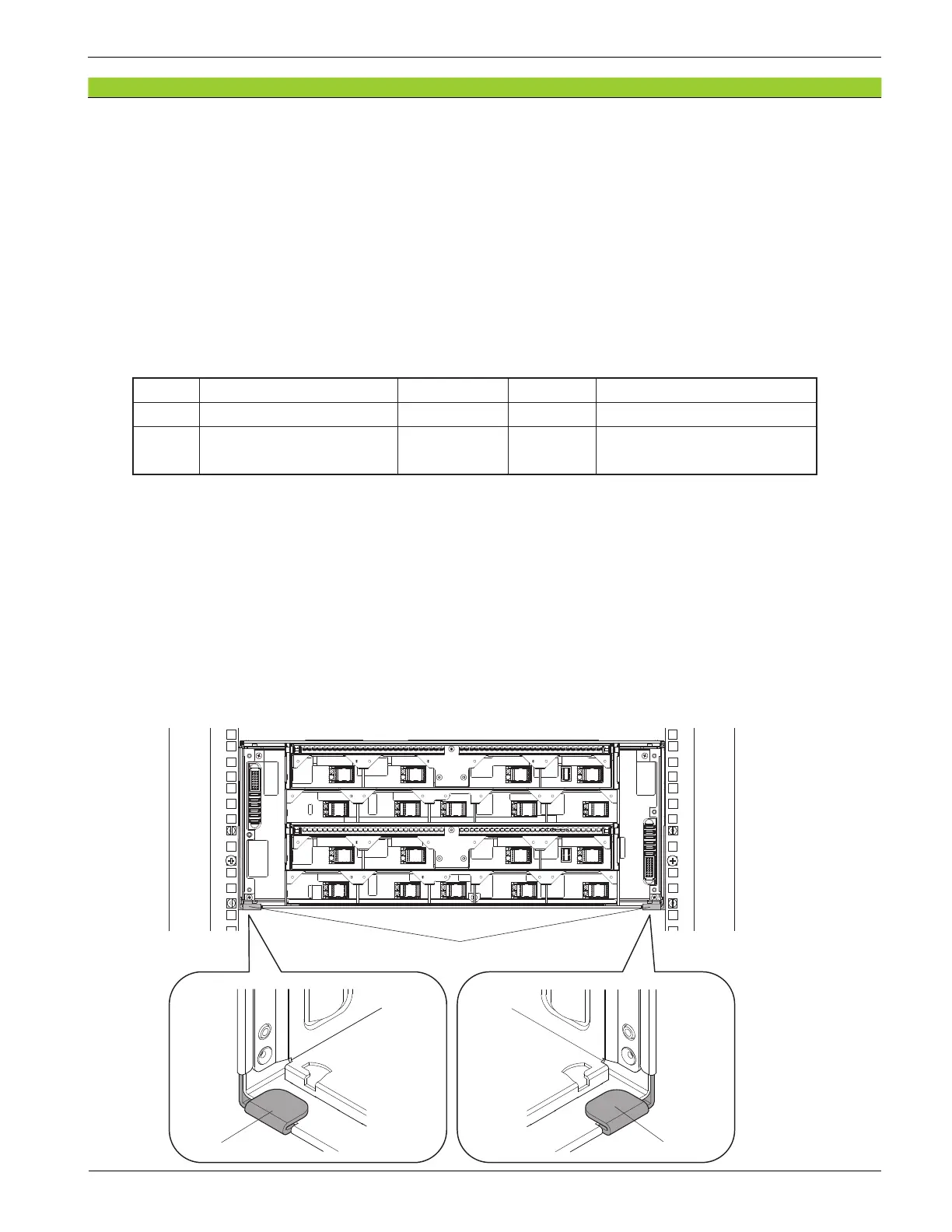

Figure 7-1 Checking Stoppers on the Rear Side (for Rail Type with a Stopper)
Stoppers
Stopper
Stopper
Rack frame (rear view)
