2. Attach the plate to the left side of the front of the Drive Box.

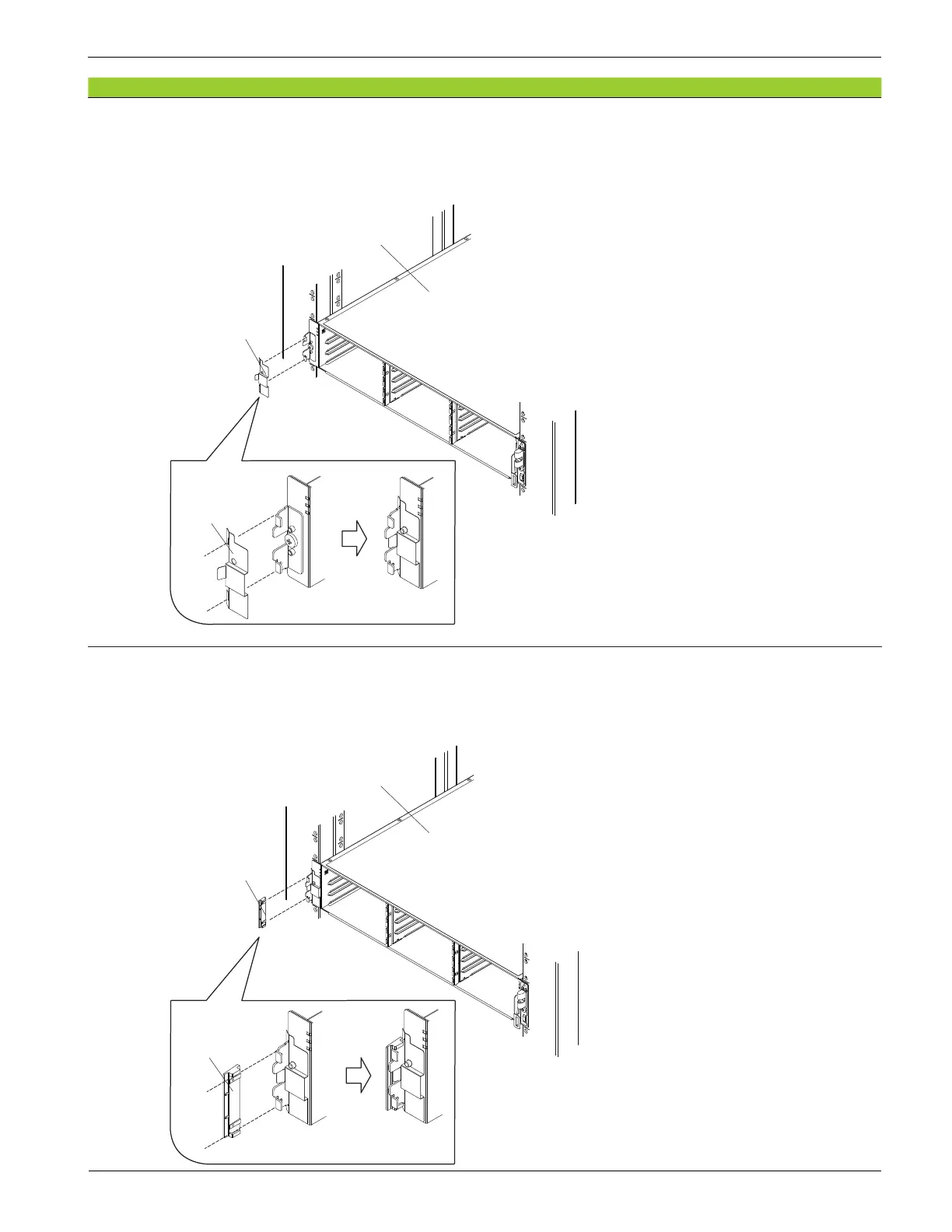

Figure 7-10 Attachment of Plate
3. Attach the side cover to the left side of the front of the Drive Box.
Figure 7-11 Attachment of Side Cover
Drive Box
Plate
Front view
Plate
Drive Box
Side cover
Front view
Side cover
To Next Page
