Hitachi DKC910I - Page 125

Copyright © 2019, 2021, Hitachi, Ltd.
DKC910IHitachi Proprietary
[INST(IN)09-02-30]
Rev.0
INST(IN)09-02-30
2. Attachment of cable color codes
(1) Check the locations of the DKCs to which the X-path cables are connected (see “Storage System
Cable Diagram” (LOC05-10)).
(2) Choose a corresponding cable color code among the labels that come with a DKC.
(3) Attach cable color codes to an X-path cable (same color for IN and OUT).
(4) Attach cable color codes to all the other X-path cables.

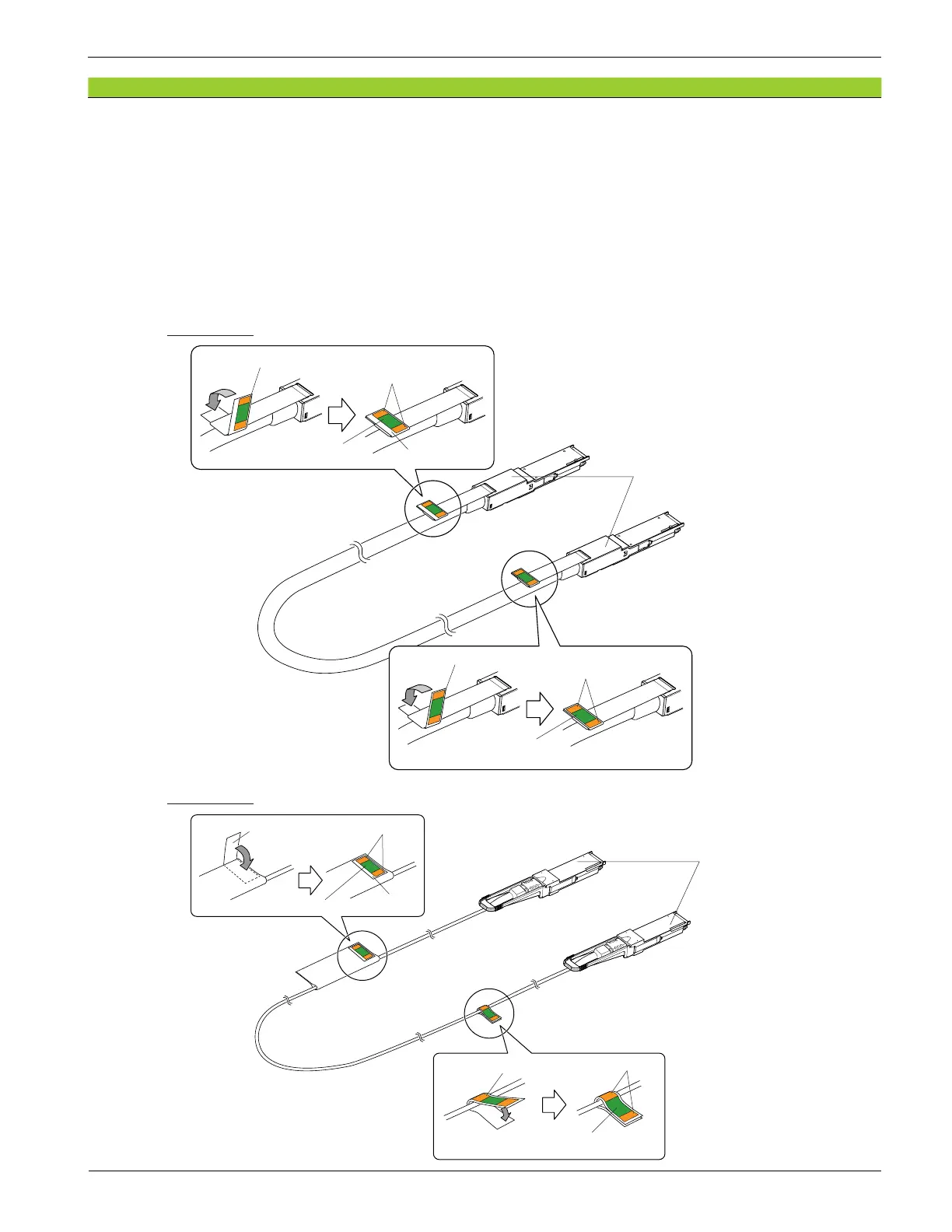

Figure 9-12 Attachment of Cable Color Codes
1
N
1
N
1
N
1
N
1
N
1
N
1
N
1
N
1
N
1
N
1
N
Copper Cable
Cable color code
Optical Cable
Copper cable
DKC No.
PATH No.
IN
Cable color code
DKC No.
PATH No.
Cable color code
PATH No.
IN
Cable color code
PATH No.
Optical cable
DKC No.
DKC No.
