NOTE: The NVMe cable consists of two cables attached to connectors. Be careful not to pass

another cable between the two cables.

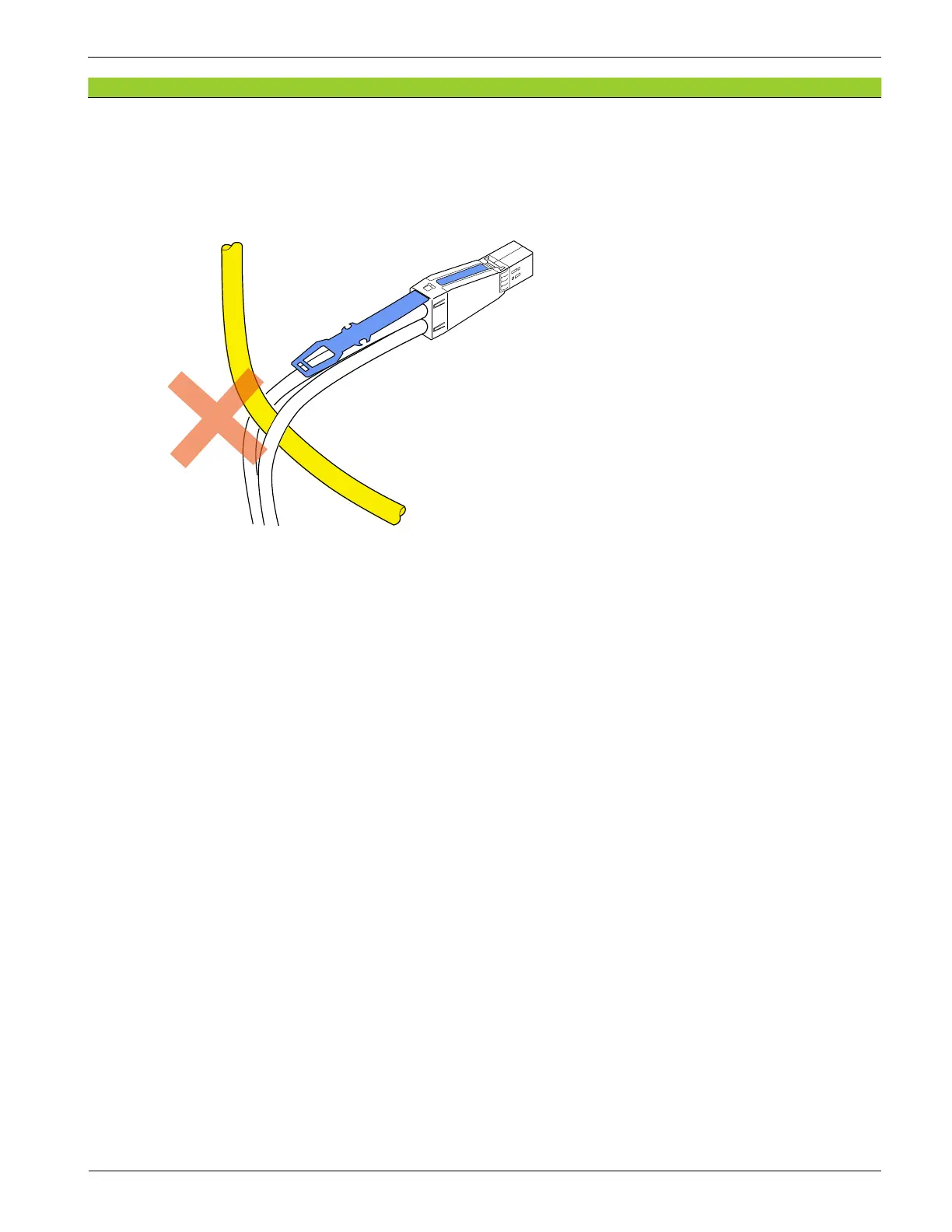

Figure 9-34 Note on the NVMe Cable
