[INST(IN)09-04-60]
2. Attachment of cable color codes
(1) Check the locations of the DKCs to which the SAS cables/NVMe cables are connected (see “SAS
Cable/NVMe Cable Diagram” (LOC05-10)).
(2) Choose a corresponding cable color code among the color codes that come with a DKC.
(3) Attach cable color codes to a SAS cable/NVMe cables (same color for IN and OUT).
(4) Attach cable color codes to all the other SAS cables/NVMe cables.

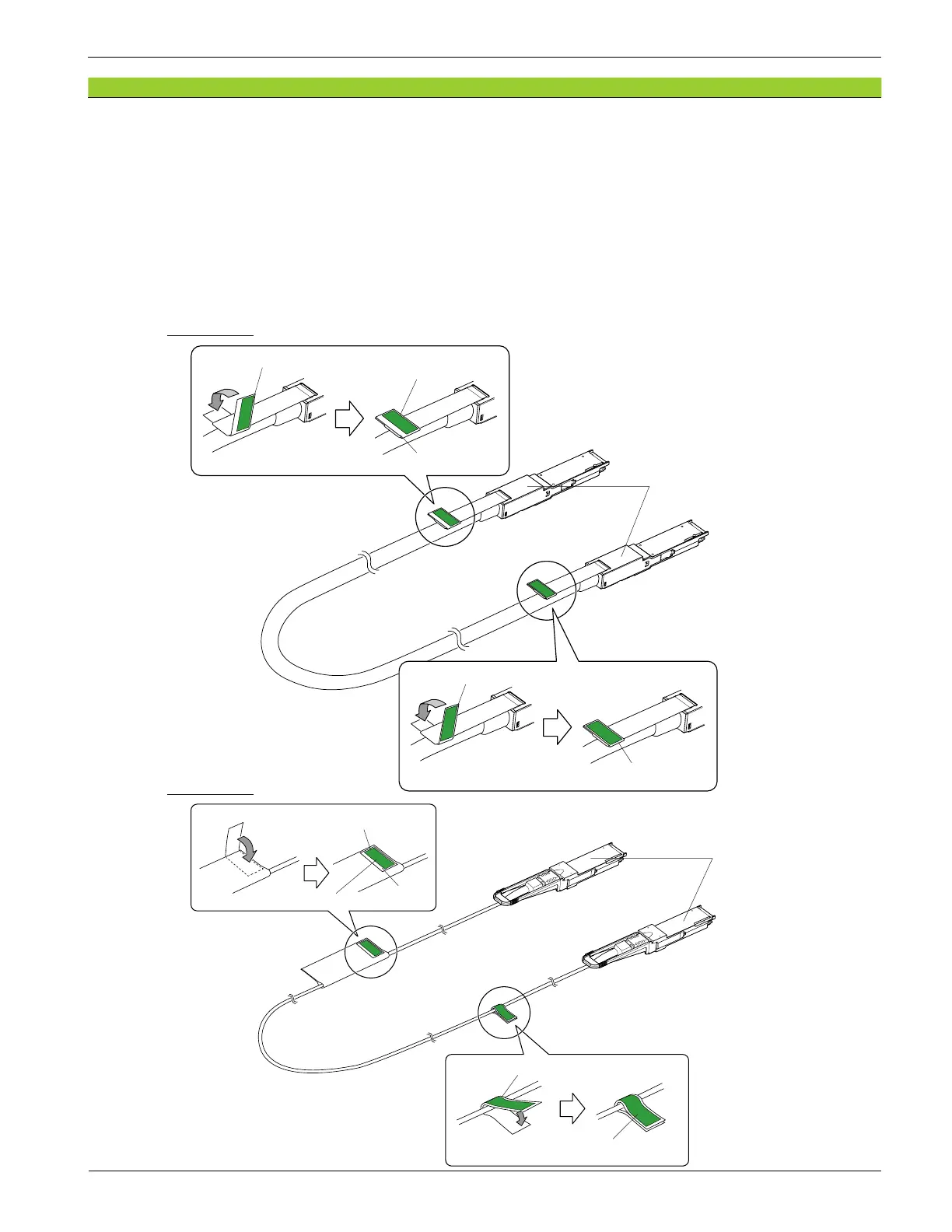

Figure 9-35 Attachment of Cable Color Codes (SAS)
Copper Cable
Cable color code
Optical Cable
Copper cable
PATH No.
IN
Cable color code
PATH No.
Cable color code
PATH No.
IN
Cable color code
PATH No.
Optical cable
