(5) Tighten the screw (SBB-RAIL) and the loop cable tie on the rear edge of the rail to x the rail to
the rack. The xing position is the fourth hole from the bottom of the unit boundary line.

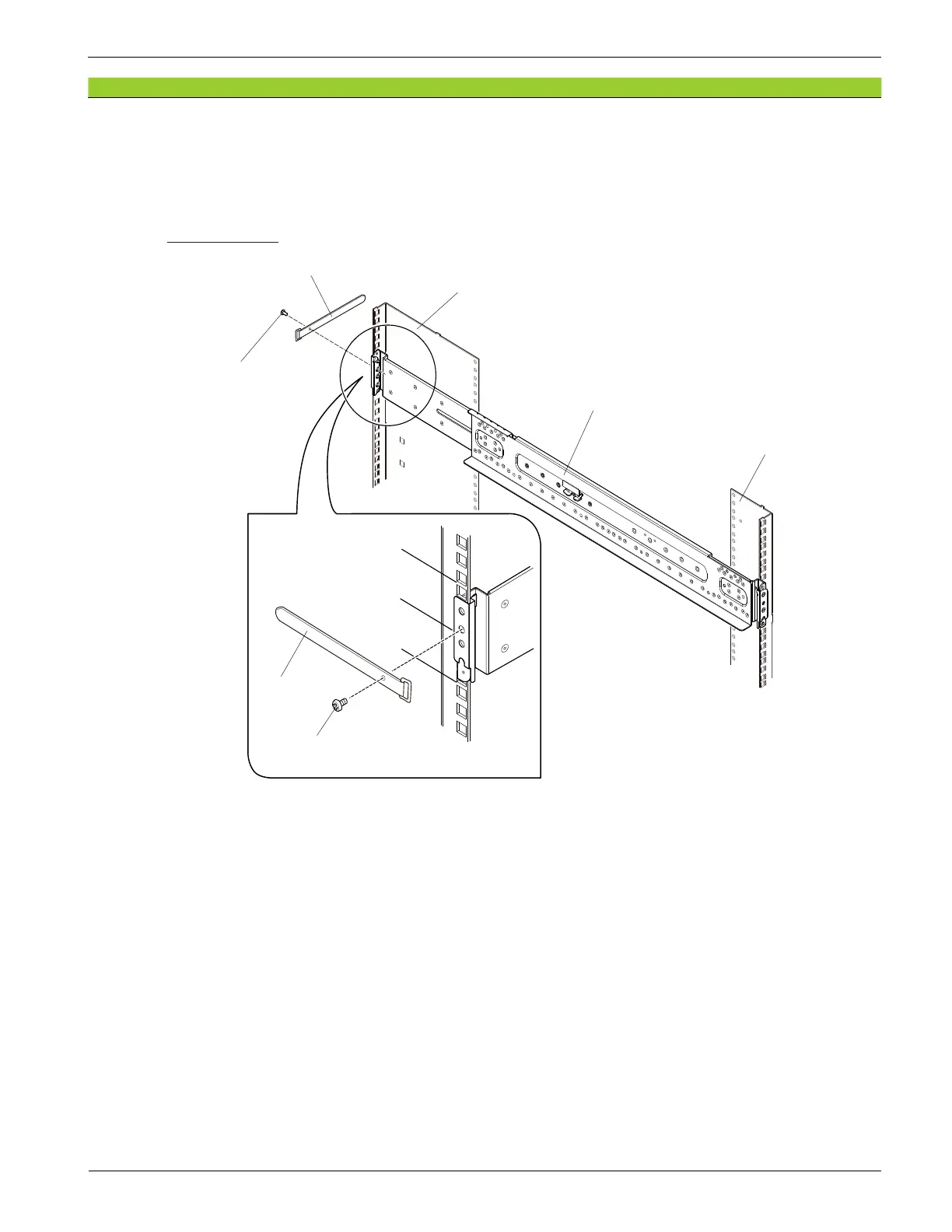

Figure 3-14 Fixing the Rails
(6) Install a rail (L) on the left side of the rack in the similar procedure.
Screw (SBB-RAIL)
Rail
Frame (front right side)
Unit boundary
Unit boundary
Unit boundary
Frame (rear right side)
Right side of rack
Loop cable tie
Screw (SBB-RAIL)
Loop cable tie
