DKC910IHitachi Proprietary
[INST(IN)04-01-15]
Rev.3
INST(IN)04-01-15
DKC-F910I-UBX/UBXE
(1) Attach the nameplates and label, showing corresponding locations to top side and rear side of the
UBX.
(2) Attach the nameplates and label to the other UBX in the same manner.
Table 4-3 Nameplate and Label List (UBX)
Item No. Parts name Parts No. Quantity Comment
1 Nameplate (DKC-F910I-UBX) 2857688-8 8 for Hitachi Vantara
Nameplate (DKC-F910I-UBXE) 2857688-9 8 for Hitachi Vantara
2 Nameplate (MDKC910I-UBX) 2857688-30 8 for Hitachi Vantara
Nameplate (MDKC910I-UBXE) 2857688-30 8 for Hitachi Vantara
3 Nameplate (R0K91-63001) 2857688-18 8 for HPE
4 Label (Regulatory) V 3292680-101 8 for Hitachi Vantara
5 Label (Regulatory) H 3292681-301 8 for HPE
6 Label (BIS) 2857728-001 8 for Hitachi Vantara
Attach BIS label to chassis
shipped from UMCH.

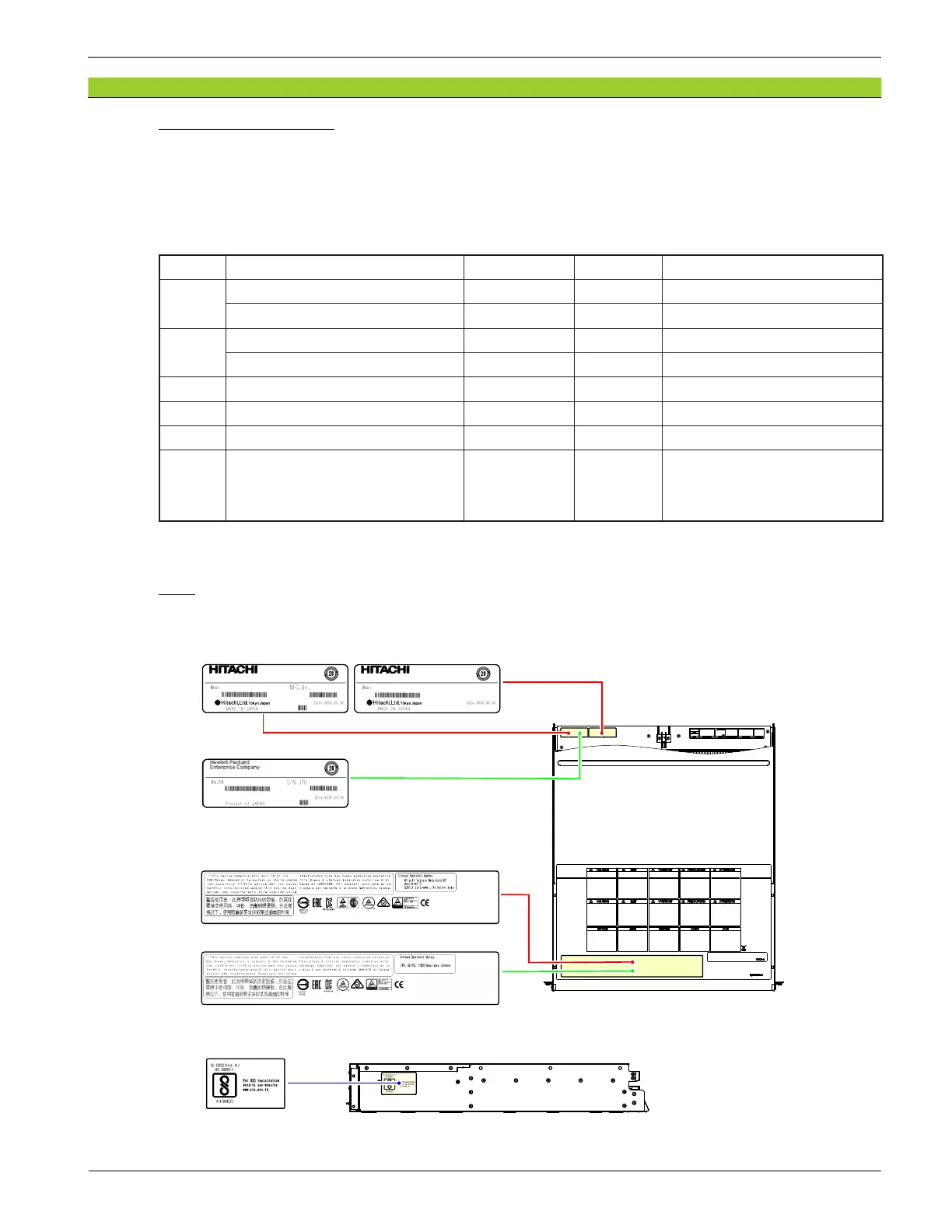

Figure 4-7 Attachment of Nameplates and Label
UBX
HPE
HPE
Hitachi Vantara
Hitachi Vantara
LABEL (REGULATORY)
NAMEPLATE
LFF Drive Chassis(2U)
MDKC9101-UBX
2857688-030
LFF Drive Chassis
DKC-F9101-UBX
2857688-008
XXXXXXXX
LFF Drive Chassis
2857688-018
R0K91-63001
Item No. 1 Item No. 2
Item No. 3
Item No. 4
Item No. 5
Top View
Rear
Front
LABEL (BIS)
Item No. 6
Front Rear
