4 The measurement is completed in four minutes, and a coefficient
(calculated value) will be displayed
If the process status is ”fault” and message “Check viscometer for any defect” appears,
Normal measurement has not been executed . Follow “4.9 Troubleshooting when fault
occurs in viscometer”.
5 Press OK
If the OK key is pressed when the process status is “normal end”, the coefficient will be
registered, and the circulation control screen will be displayed.
[Note at the calibration]
- The coefficient will not be registered when Cancel is pressed instead of OK key.

Cancel
OK

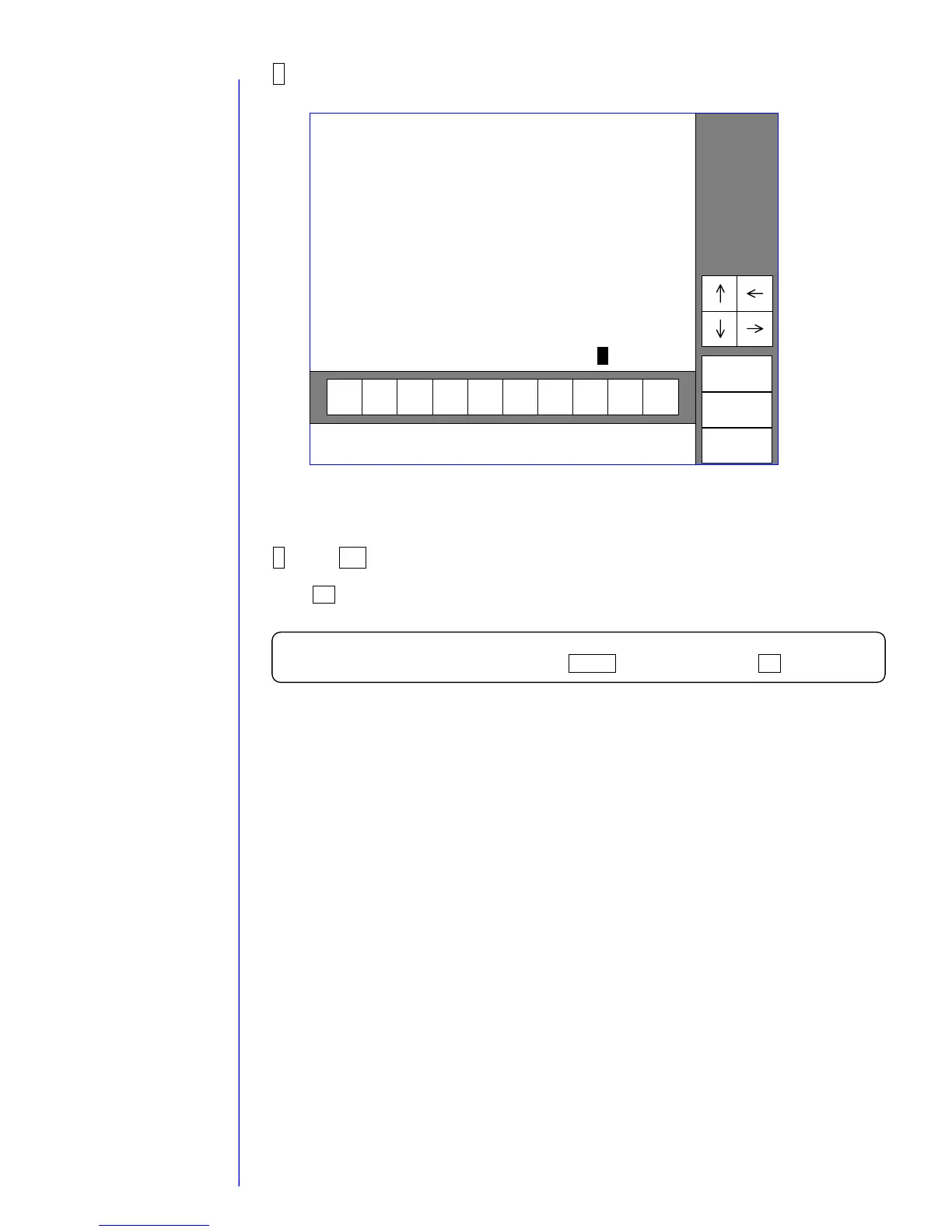

 When updating coefficient, press
[
OK].
 Plunger falling time
No.1 X. XX (sec)
Coefficient XXX
X
Average X. XX (sec)
No.2 X. XX (sec)
No.3 X. XX (sec)
No.4 X. XX (sec)
No.5 X. XX (sec)
Ink temperature XX (
o
C)
 <the previous calibration>
 Exec.time 2011.07.01 16:00
Status:XXXXXXXX
X
2011.07.07 12:45Viscometer calibration
 Plunger falling time
No.1 X. XX (sec)
Standard X. XX (mPa.s)
Average X. XX (sec)
No.2 X. XX (sec)
No.3 X. XX (sec)
No.4 X. XX (sec)
No.5 X. XX (sec)
Ink temperature XX (
o
C)
 <the current calibration >
 Exec.time 2011.07.07 12:45
Proc. status: Ended
Standard X. XX (mPa.s)

0 9 8 7 6 5 4 3 2 1
Coefficient [ XXXX ]
