4-2

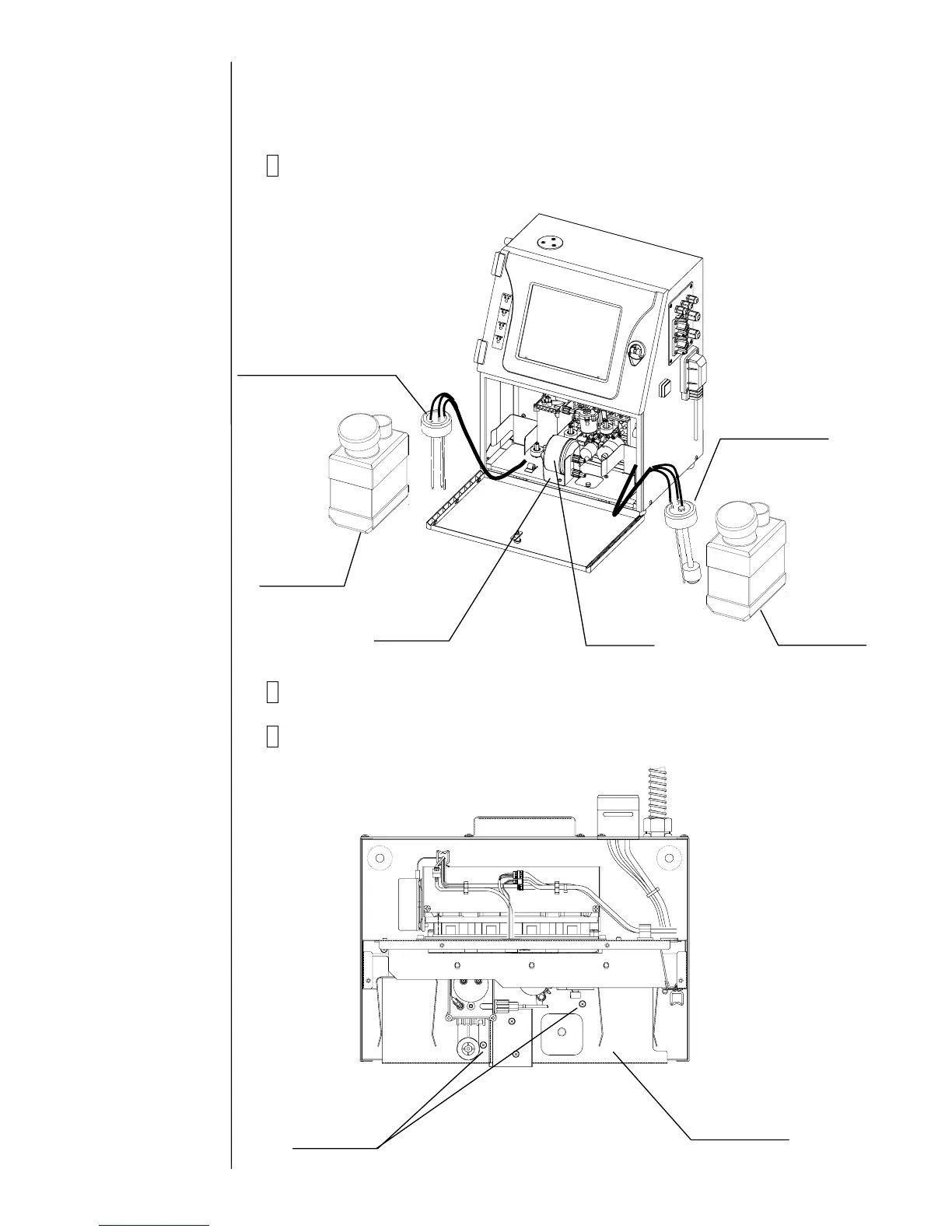

4.1.2 Approach to the parts on the front side of the equipment
1 Move the ink reservoir and the makeup ink reservoir to a safe place after
removing the connection tube block.
2 Remove the ink filter from the fixture and draw it out.
3 Remove the fixing screws (2 pieces) of the reservoir base and remove
the reservoir base.
Reservoir base
Fixin
g
scre
w
Ink reservoir
Makeup ink
reservoir
Connection tube block
Connection
tube block
Holder
Ink filter
