5-16
5.10 Stirrer replacement procedure
1 Turn the power off and shut off primary side air before starting work.
2 Perform the procedure of “5.1.2 Approach to the parts on the front side of
the equipment”.
3 Remove all air tubes connected to stirrer.
Refer to “5.4.3 Air joint structure and handling” for removal of air tube.
4 Remove the three screws fixing stirrer base and then remove base from
the unit.

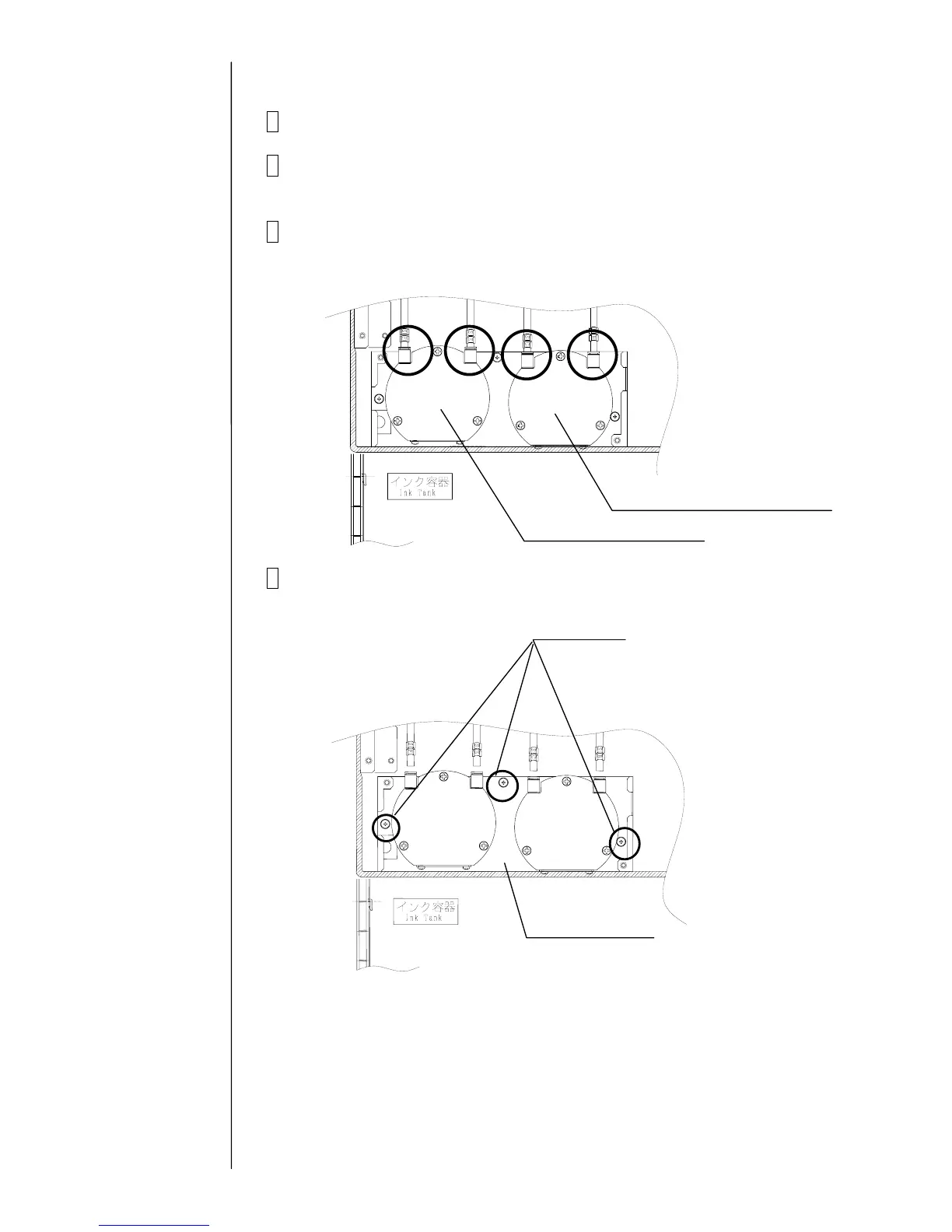

Stirrer for main ink tank
Stirrer for ink reservoi
