5 Turn the surface of stirrer base over and remove the fixing screws of
stirrer to be replaced.
Note:
(1) When turning over the stirrer base, note that stirrers for main ink tank and
ink reservoir will be reversed: Be careful.
(2) Be sure to use cross-accessed flat head screw M4x8 to secure stirrer.
If another screw is used, the stirrer may malfunction.
6 Install a new stirrer by the reverse procedure to above.
7 Turn the power on and supply air to primary side, and confirm that
stirrer rotates.
See the “7.18 Confirming rotation of Rotor” in the instruction manual of PXR-P.

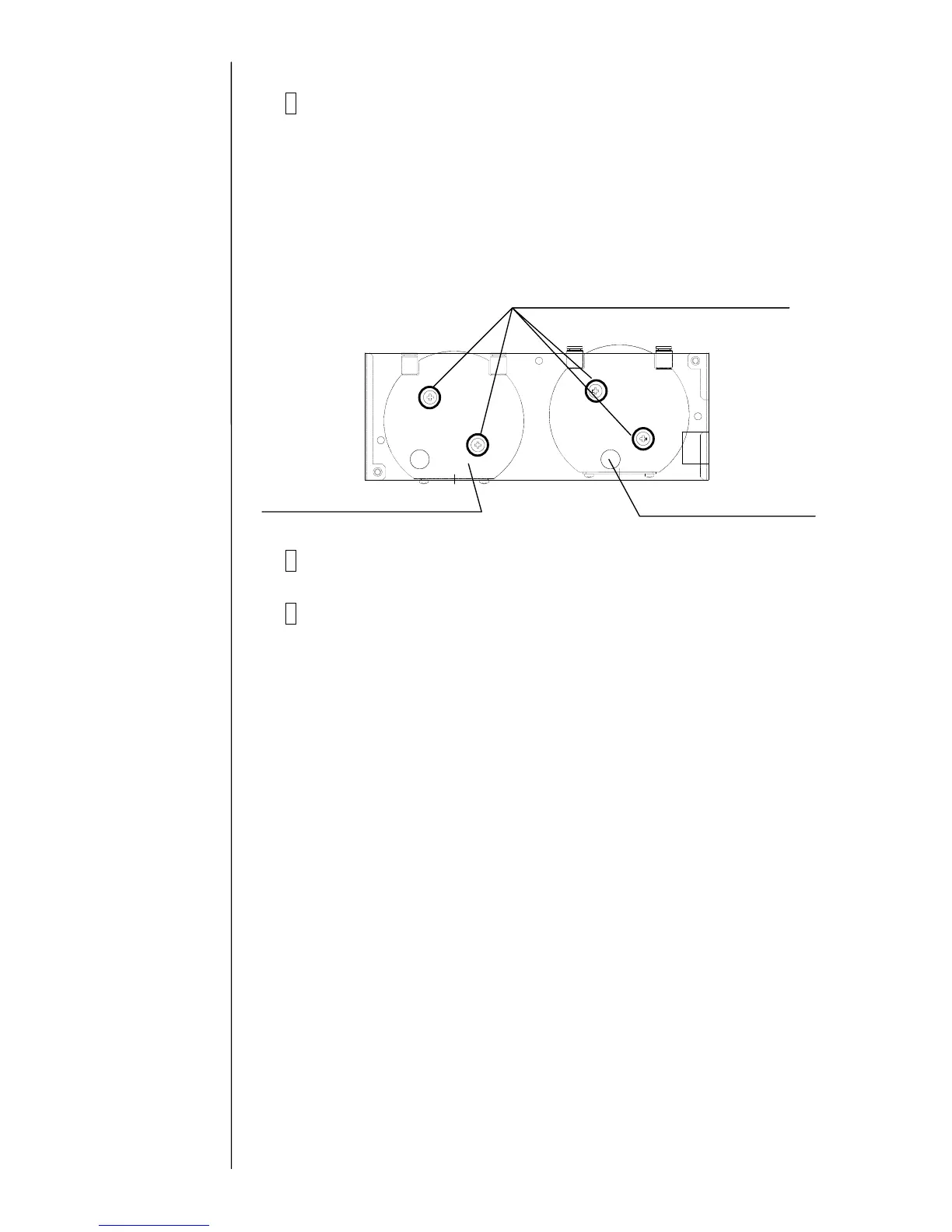

Stirrer for ink reservoir
Cross-accessed flat head screw M4x8
Stirrer for main ink tank
To Next Page
