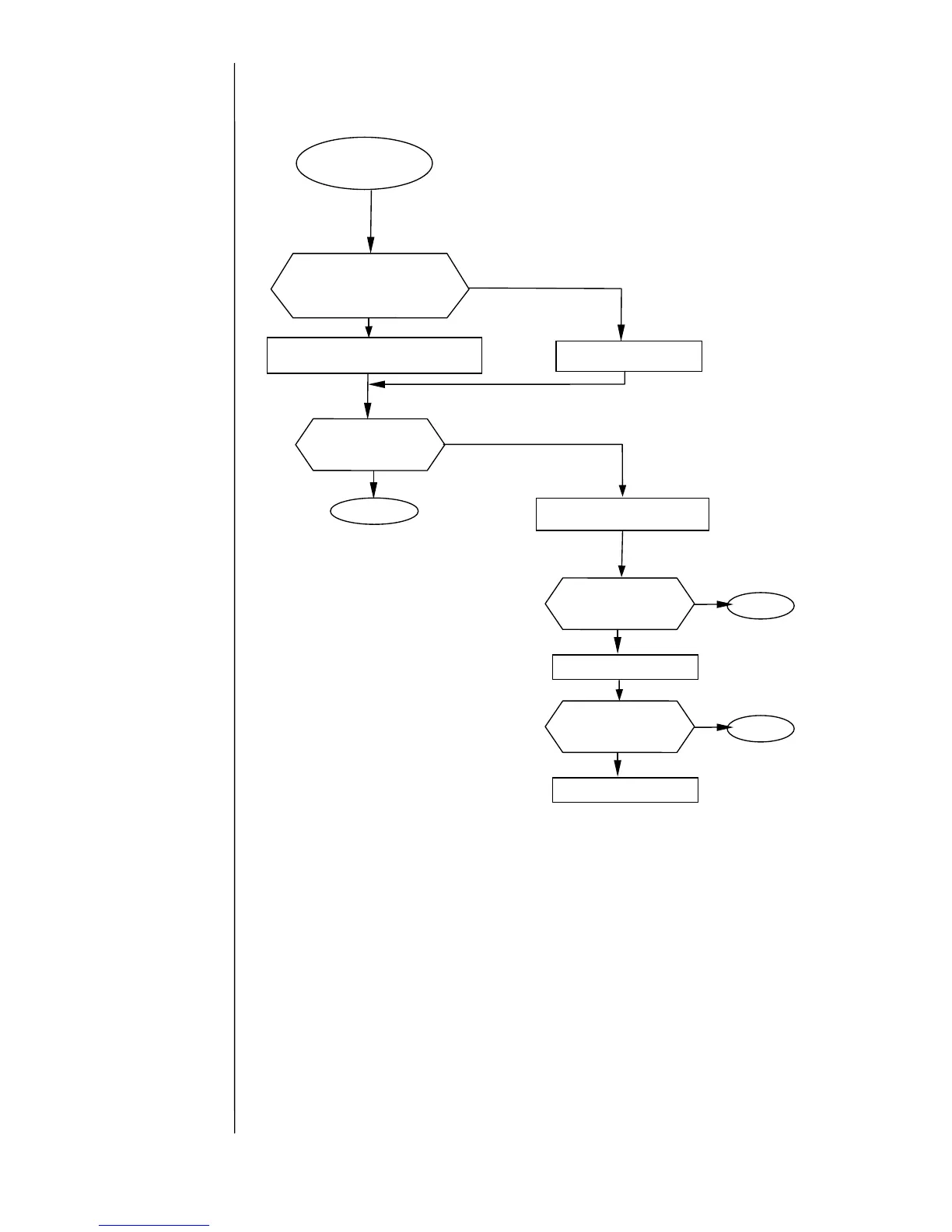

7.2.9 Deflection Voltage Fault


Deflection Voltage
Fault
Is the EZJ94 board CN6
connector or high-voltage
power supply CN1
connector disconnected?
Connect the connector.
Disconnect the connector and then
reconnect it.
Does the printer
become ready for
printing?
Y
es
No
END
Y
es
No
Replace the high-voltage
power supply unit.
Does the printer
become ready for
printing?
Y
es
No
Replace the EZJ94 board.
END
Does the printer
become ready for
printing?
Y
es
No
Replace the EZJ93 board.
