Elevator to Camber Mixing cont.

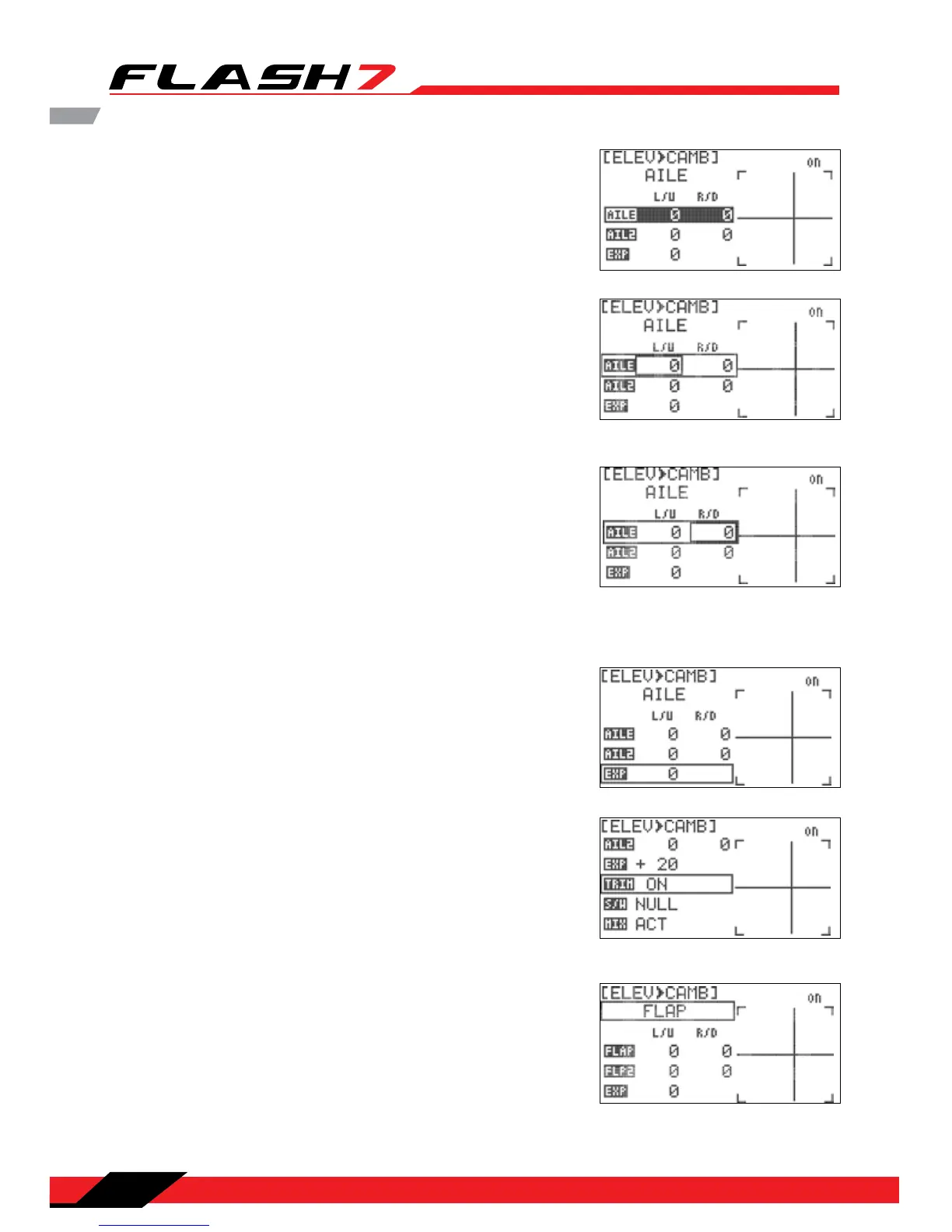

7. Scroll to the top row of the value table (“AILE”) and press the
jog dial to activate the menu.
8. Scroll to highlight the “L/U” (left/up) eld and press the jog dial
to activate the menu.
9. Rotate the jog dial to set the desired endpoint for the servo
attached to the “AILE” receiver slot. This value regards the servo
travel when a pitch up command is given. This setting does
not aect the travel of the servo when roll commands are
given. Press the jog dial to conrm your input.
10. Scroll to highlight the “R/D” (right/down) eld and press the
jog dial to activate the menu.
11. Rotate the jog dial to set the desired servo endpoint for the
when a pitch down command is given.
13. Scroll to highlight the “EXP” eld and press the jog dial to
activate the selection.
14. Rotate the jog dial to input the desired exponential travel of
the aileron servos when reacting to this mix. The setting does
not aect exponential travel of the servos when roll
commands are given.
12. Repeat steps 6-10 to set the endpoints for the servo attached to the “AIL2” receiver slot (second row of
the value table). As with the previous settings, the values input here do not aect the servo travel
when roll commands are given.
15. Scroll to highlight the “TRIM” eld and press the jog dial to
activate the menu.
16. Scroll to select “ON” or “OFF” and press the jog dial to conrm
your selection. When “ON” is selected, the mix reacts to trim
adjustments of the elevator. Otherwise, the mix ignores
elevator trim changes.
17. If the model is equipped with aps, scroll to the function eld
(“AILE” or “FLAP”) and press the jog dial to activate the menu.
Otherwise, skip to step 19.
To Next Page
