D2 Drive User Guide v1.8 7. LCD Operation
HIWIN Mikrosystem Corp. 226
Note 3. The high/low speed pulse channel can be set via the following parameter.
LCD No.
Parameter
Definition
Initial value
216
LCD.low_or_high
Switch between the high-speed and
low-speed pulse inputs
0: High-speed pulse input
1: Low-speed pulse input
0

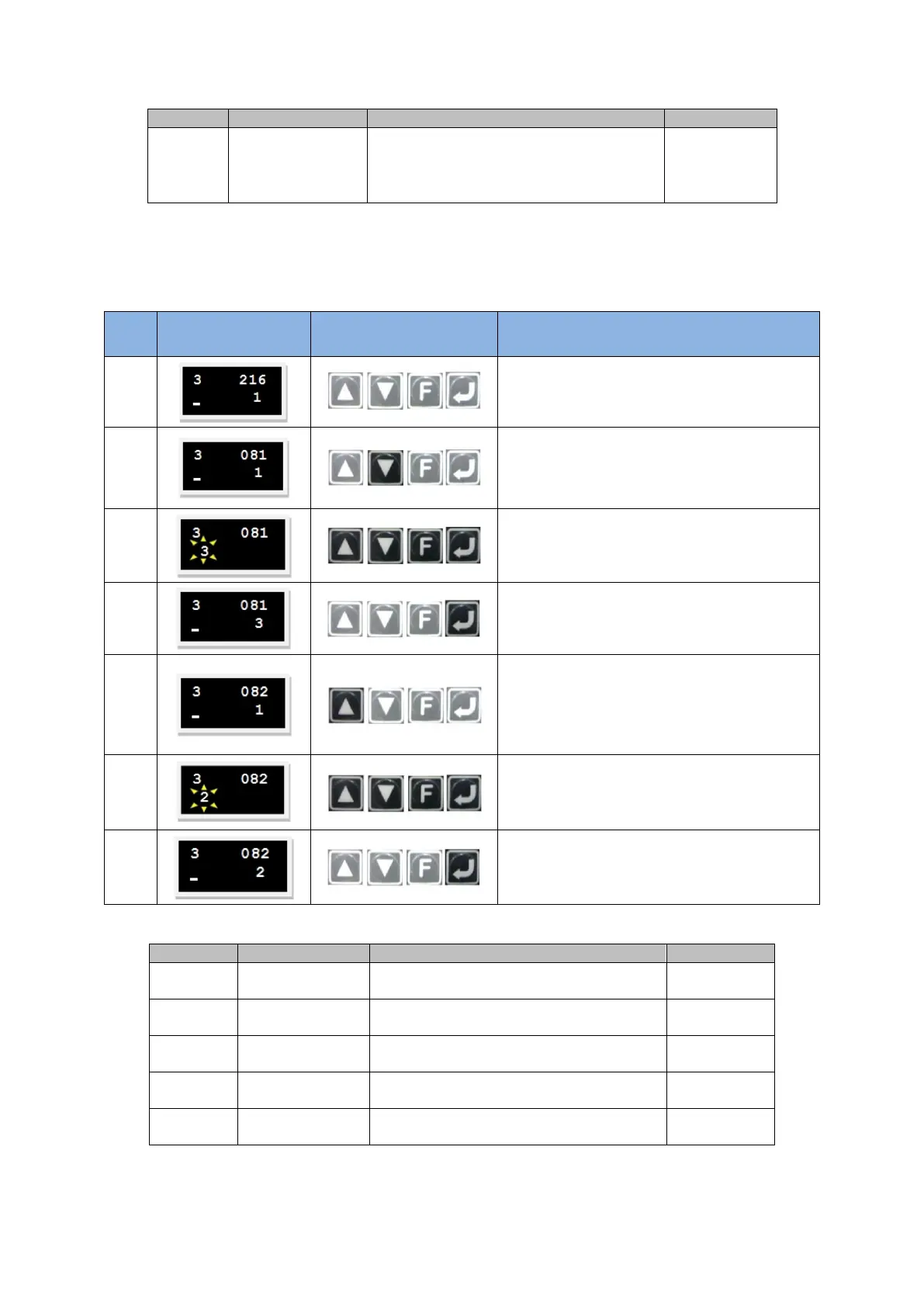

(4) Electronic gear ratio setting
D2 drive provides four sets of electronic gear ratio, referring to Section 5.5.1.
Use following steps to set the electronic gear ratio via LCD.
Step
LCD display after
operation
Used keys
Operation
1
Continue the last setting screen of HI/LO
speed pulse channel.
2
Press and hold the
Down key
to go to LCD
No. 081 page (refer to note 4), i.e. the setting
page of the numerator of electronic gear ratio
(output).
3
Press the
Enter key
first and change the
parameter from 1 to 3. (Note. This example
sets the electronic gear ratio to 2:3.)
4
Press the
Enter key
to complete the setting
of the numerator of electronic gear ratio.
5
Press the
Up key
once to go to LCD No. 082
page (refer to note 4), i.e. the setting page of
the denominator of electronic gear ratio
(input).
6
Press the
Enter key
first and set the
parameter from 1 to 2.
7
Press the
Enter key
to complete the setting
of the denominator of electronic gear ratio.
Note 4. The electronic gear ratio can be set via following parameters.
LCD No.
Parameter
Definition
Initial value
081
Xcmd_ext_N
Numerator of electronic gear ratio
(output)
1
175
X_cmd_ext_N2
Numerator of electronic gear ratio
(second output)
1
176
X_cmd_ext_N3
Numerator of electronic gear ratio
(third output)
1
177
X_cmd_ext_N4
Numerator of electronic gear ratio
(fourth output)
1
082
Xcmd_ext_M
Denominator of electronic gear ratio
(input)
1
