D2 Drive User Guide v1.8 8. Protection Function
HIWIN Mikrosystem Corp. 240

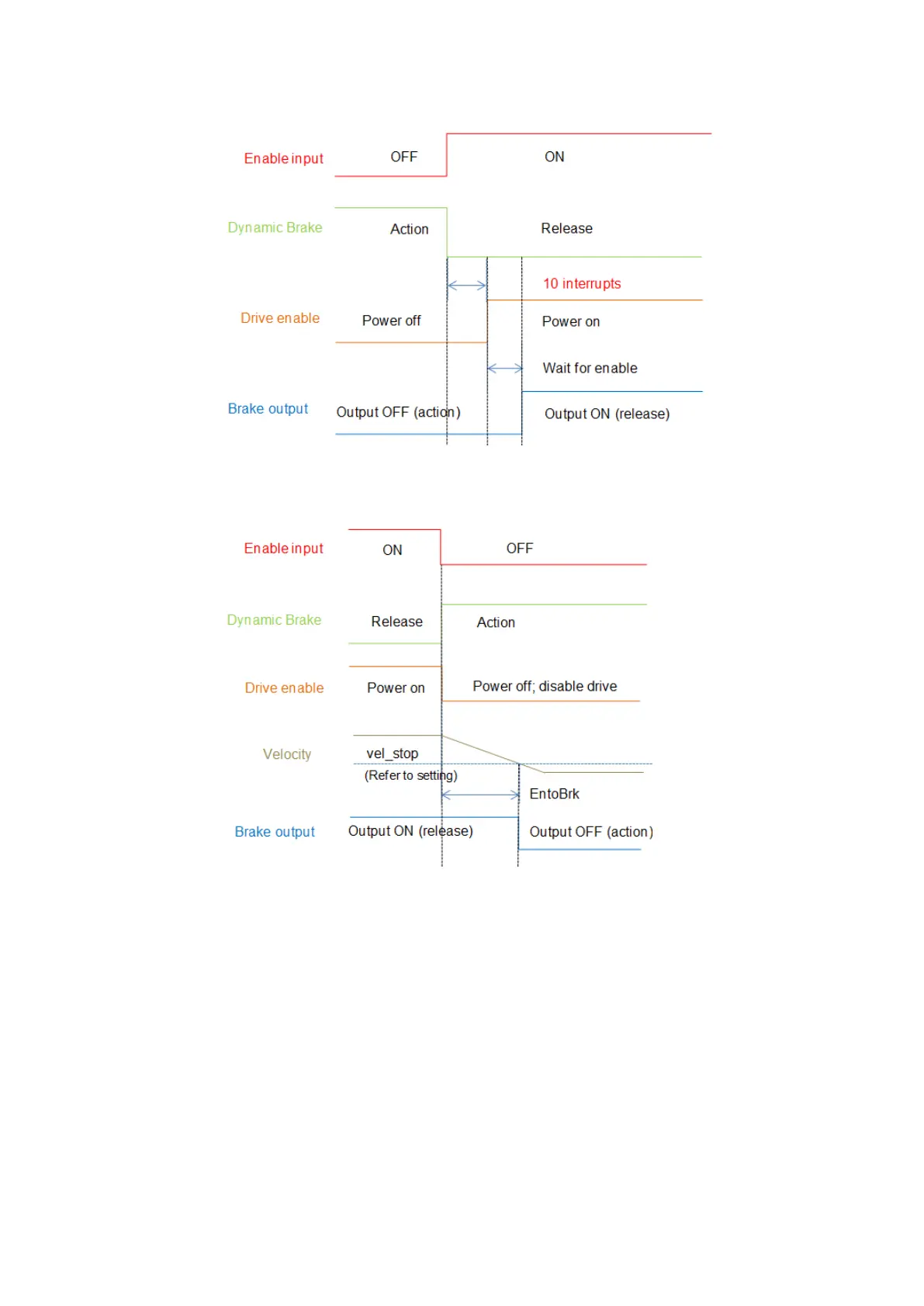

(a) Enable timing
Fig. 8-8 Dynamic brake timing - enable
(b) Disable timing at the motor movement
Fig. 8-9 Dynamic brake timing – disable at the motor movement
