The regenerative resistor model of HIWIN standard product is given in Table 8-6. Users can
use them in series or in parallel according to the requirement. The appearance and size are
given in Table 8-7 and Fig. 8-18.
Table 8-6
Regenerative
resistor model
HIWIN Part No.
Resistance
value
Rated power/
peak power
RG1
050100700001
68 Ω
100 W / 500 W
RG2
050100700009
120 Ω
300 W / 1500 W
RG3
050100700008
50 Ω
150 W / 750 W
RG4
050100700019
50 Ω
600 W / 3000 W
Table 8-7
Regenerative
resistor model
L1
L2
W
W1
H
RG1
165 ± 2 mm
150 ± 2 mm
40 ± 0.5 mm
5.3 ± 0.5 mm
20 ± 0.5 mm
RG2
215 ± 2 mm
200 ± 2 mm
60 ± 1 mm
5.3 ± 1 mm
30 ± 1 mm
RG3
190 ± 2 mm
175 ± 2 mm
40 ± 1 mm
5.2 ± 1 mm
20 ± 1 mm
RG4
390 ± 2 mm
360 ± 2 mm
60 ± 1 mm
9 ± 1 mm
28 ± 1mm

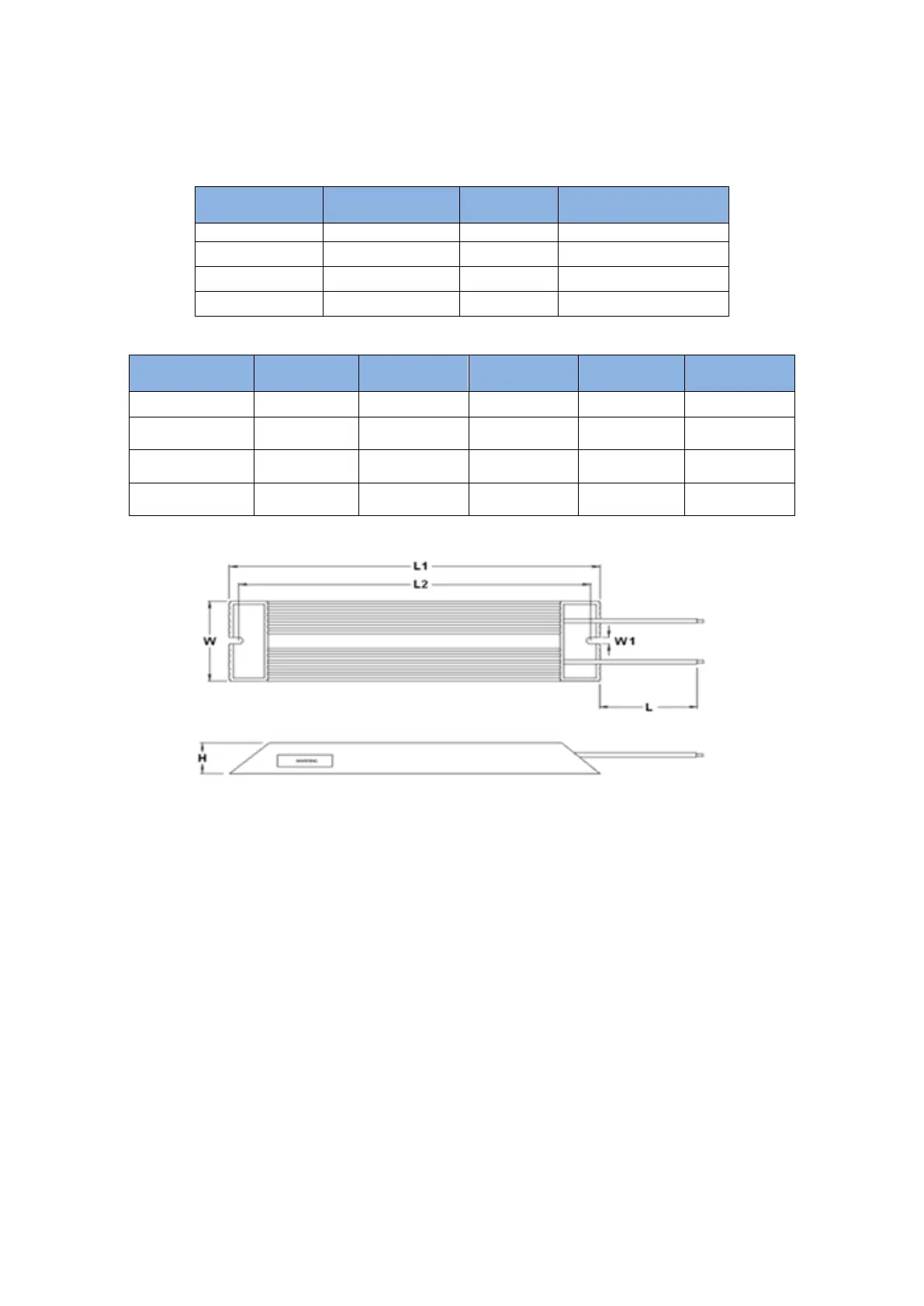

Fig. 8-18
Line length L: 500mm
