D2 Drive User Guide v1.8 9. Troubleshooting
HIWIN Mikrosystem Corp. 253

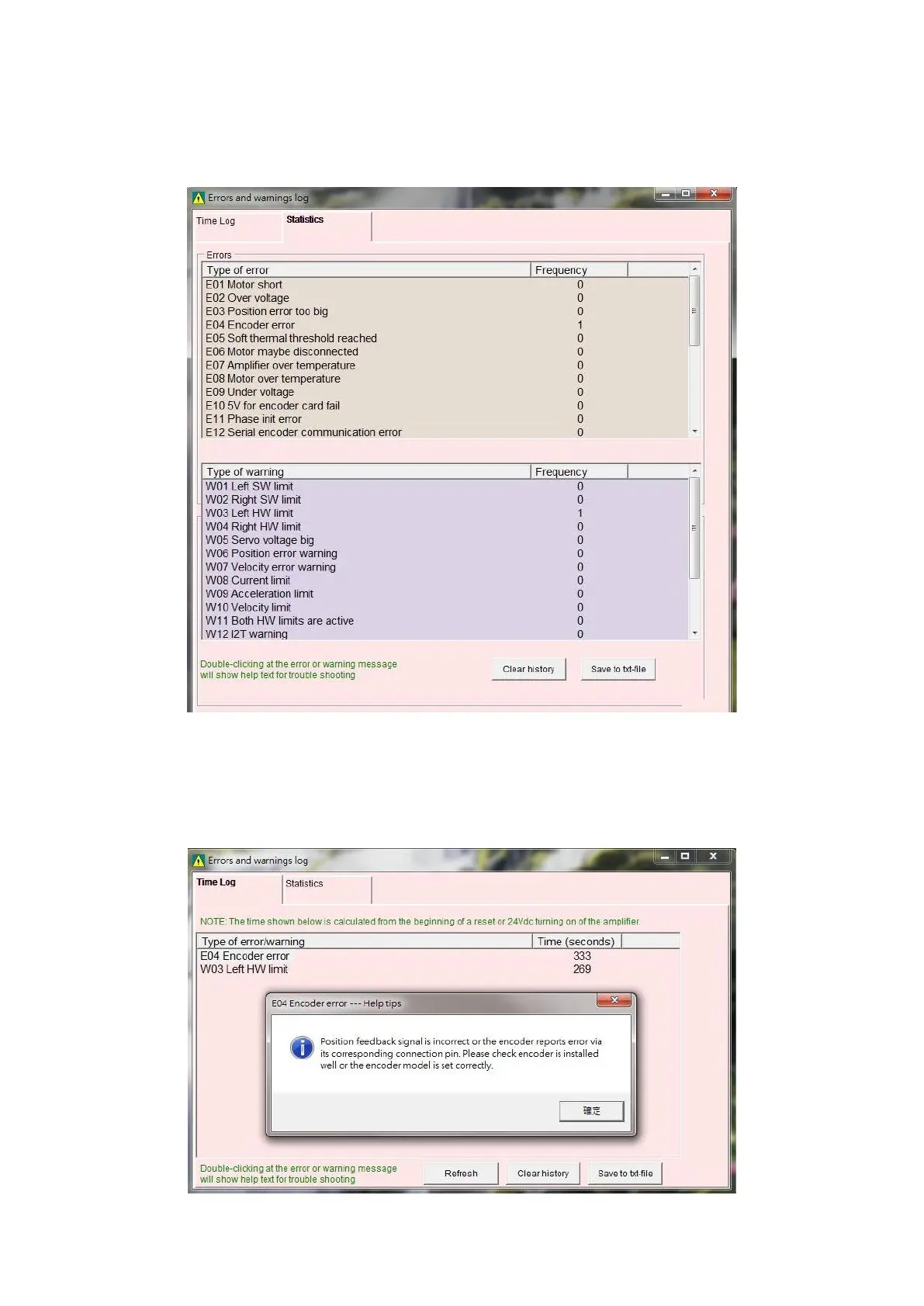

Refer to Fig. 9-6 for the “Statistics” tab in “Errors and warnings log”. The number of errors or
warnings (“Frequency”) occurred in the drive is recorded in this window. This can help users
to understand which events occur most frequently and to debug.
Fig. 9-6 Statistics in “Errors and warnings log”
Moreover, when users want to know more about the content of errors and warnings,
double-click the name of error or warning event to appear the “Help tips” window. For
example, as shown in Fig. 9-7, if the error event of “E04 Encoder error” is clicked, the possible
cause and solution can be obtained from this window.
Fig. 9-7 “Help tips” window in “Errors and warnings log”
