D2 Drive User Guide v1.8 4. Wiring
HIWIN Mikrosystem Corp. 44
(2) Frame D
Connector model: TE Connectivity 1-2229794-1 (female).
The ground wire of main power should be connected to the drive housing.

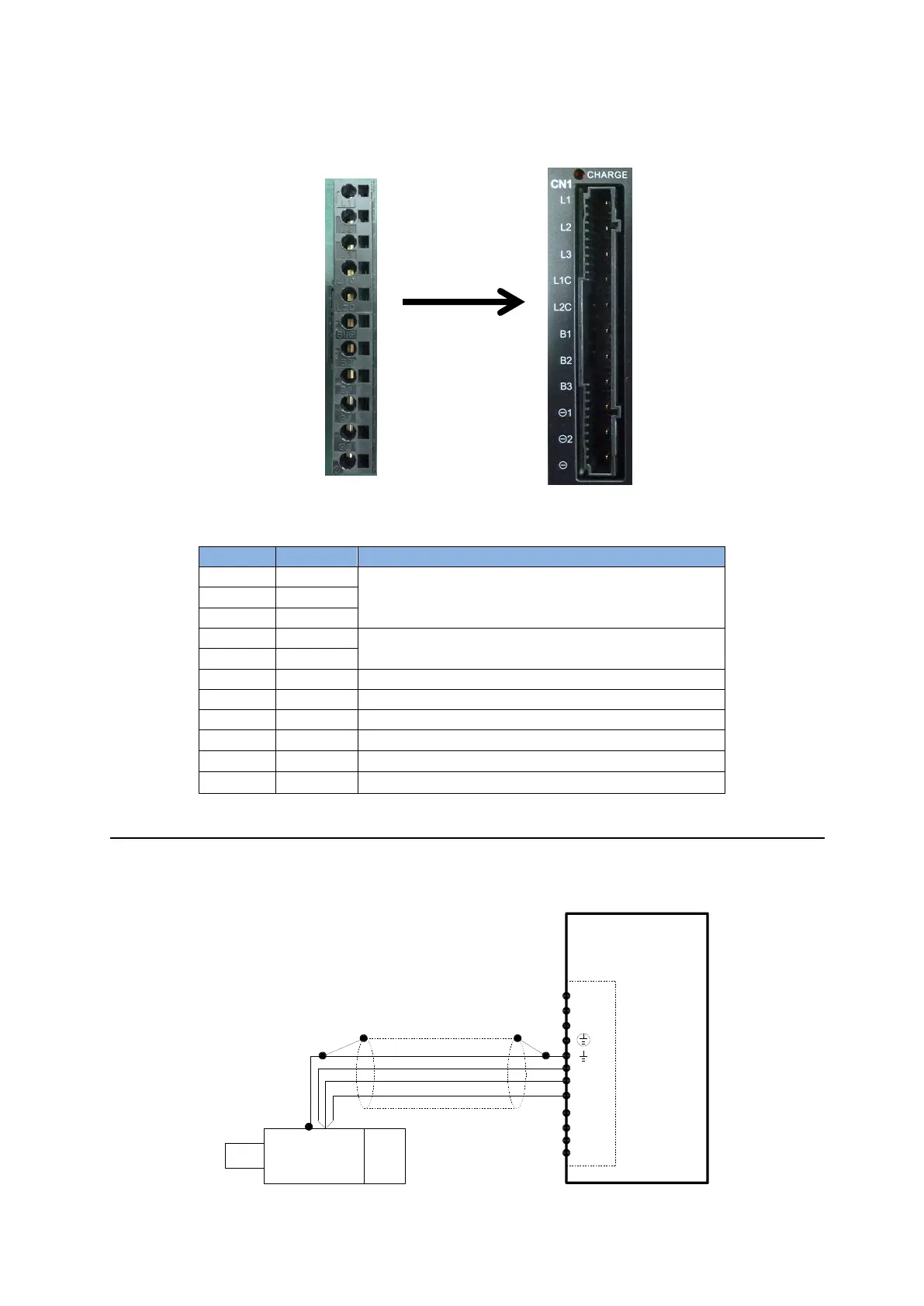

Fig. 4-6 CN1 connector type for frame D model
Table 4-3
Signal
Function
1
L1
AC main power, 220 Vac (50/60 Hz) three phase
2
L2
3
L3
4
L1C
Control power, 220 Vac (50/60Hz) single phase
5
L2C
6
B1
Regenerative resistor input
7
B2
Regenerative resistor input
8
B3
Regenerative resistor input
9
○
-
1
DC reactor input
10
○
-
2
DC reactor input
11
○
-
DC reactor input
4.1.2.2. Motor wiring
Be sure to ground the drive and the motor. The following motor wiring is only suitable for
frame A-C models.
Fig. 4-7
Motor
mega-fabs
D2 Series drive
CN1
L1
L2
L3
U
V
W
REG-
REG+
L1C
L2C
