WORKING WITH THE COMPACT CRANE
U.C10.00.00.EN Version 2.0 47

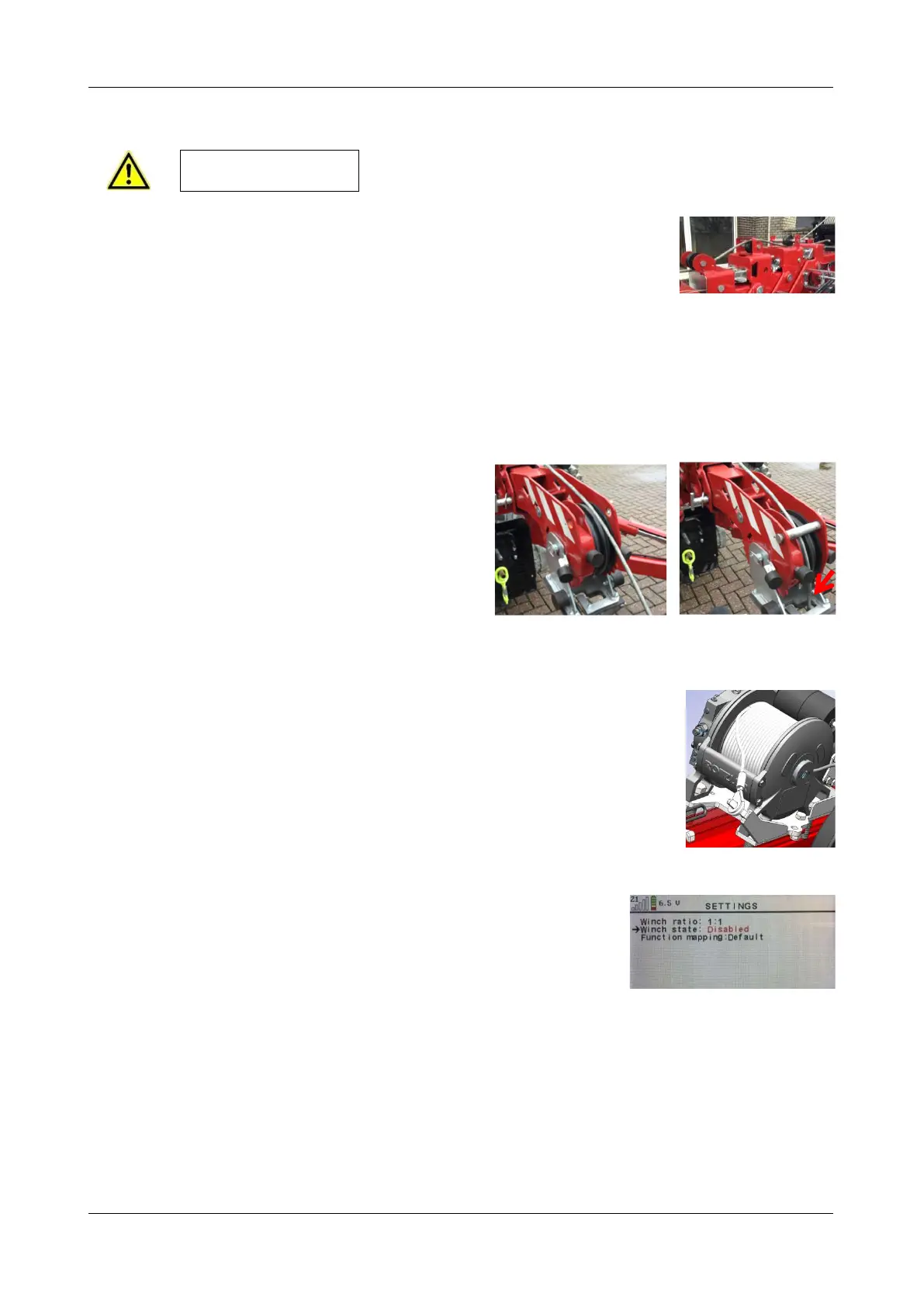

Fitting winch cable
WARNING!
The use of gloves is mandatory when attaching the winch cable!
Use one hand to operate the joystick for the winch and use the other hand to hold
the winch cable and keep it under tension.
Roll out the winch cable until approximately one metre in front of the machine.
Keep the winch cable under tension while rolling it out.
Switch the crane off.
Run the winch cable over the winch cable sheaves of the boom as shown in the
figures. Check that the winch cable has been run over the winch sheaves correctly
(see figure 60). There is an arrow engraved in the side of each winch sheave. These indicate how the cable is
to be routed.
Run the winch cable over the winch head. First remove the upper pin in the winch head. For lifting with one
cable, place the winch cable over the centre winch cable sheave and fit and secure the upper pin in place
again. Position the cable correctly through the winch weight stopper (see figures 61 and 62).
Rolling up winch cable
When rolling up the winch cable after you are finished using the winch, roll up the
winch cable until approximately one metre in front of the machine, then guide it off
of the winch cable sheaves, then pull the cable taught and roll it up (see figure 63).
Hang the eye around the support and carefully roll up the winch cable and gently
pull it tight.
Deactivate the winch by setting the Winch state to Disabled in the remote
control menu (see figure 64).
Figure: 60
Figure: 61
Figure: 62
Figure: 63
Figure: 64
