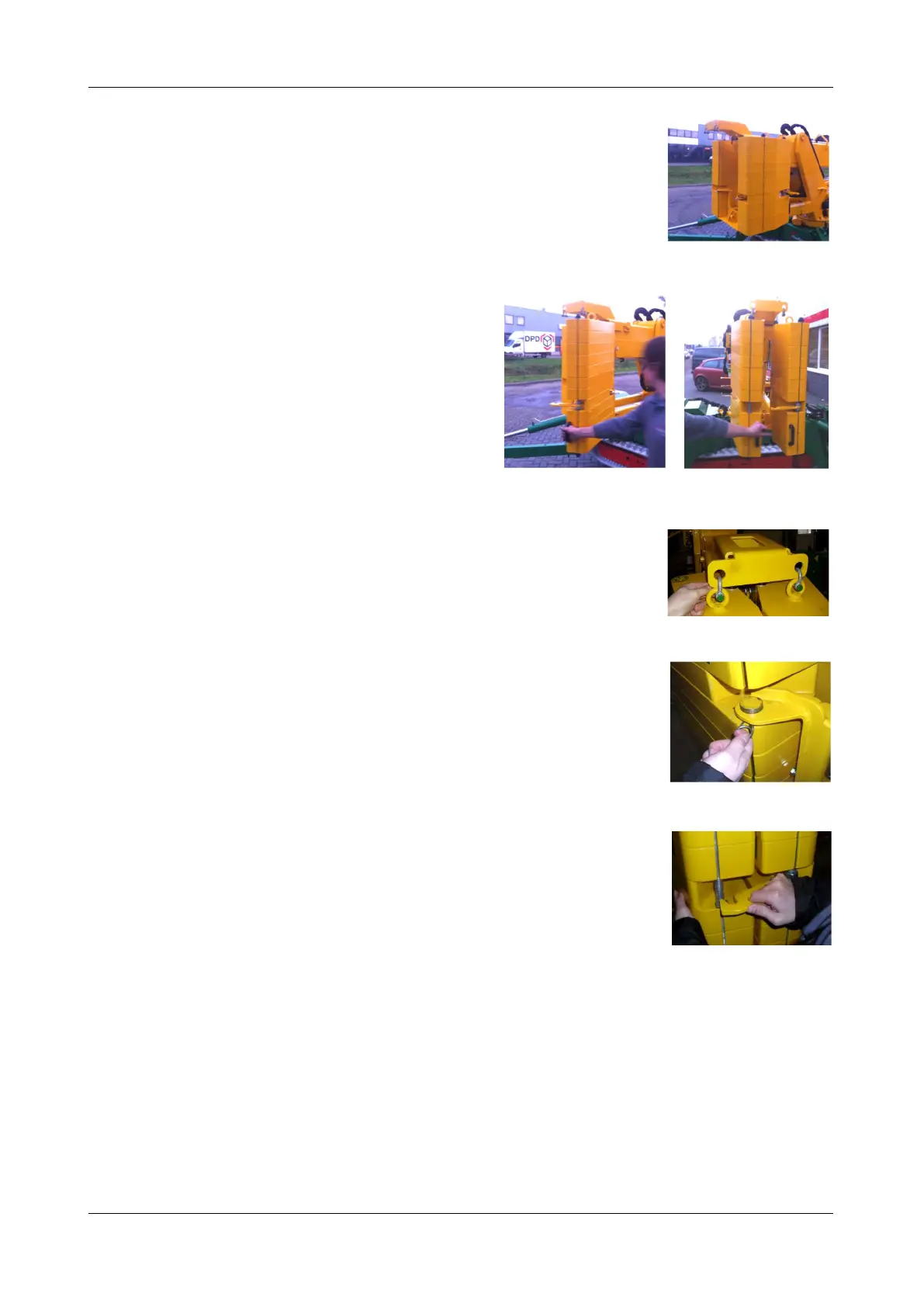

 Hydraulically extend the ballast (see figure 82).
 Swing the ballast out manually (see figures 83 and 84).
 Mount the ballast support to the lifting points on the ballast elements with
the D-shackles (see figure 85).
 Remove the retainer clips from the shafts on both sides (see figure 86).
 Attach the ballast elements together with the retainer (see figure 87).
 Lower the boom slightly so the ballast just enters the removal support and is floating between the two tabs
on which the ballast is mounted. Attention! Do not lower the boom too far or it may damage the removal
support and the bracket to which the ballast is mounted.
Figure: 82
Figure: 84
Figure: 83
Figure: 85
Figure: 86
Figure: 87
