Hologic Selenia - Gantry Controls and Displays; C-Arm Controls and Displays; Figure 16: Gantry Controls

Selenia User Guide
Chapter 3—System Components and Controls
28 MAN-03270 Revision 003
3.5.1 Gantry Controls and Displays
Gantry Controls
1. The C-arm Rotation Angle Displays on both sides of
the Gantry show the C-arm angle.
2. The Emergency Off Switches on each side of the
Gantry remove power from the Tubestand.
3. Gantry Rotation Switches (if installed) on each side of
the Gantry move the C-arm to a programmed
position.
4. The Input Power Circuit Breaker at the rear of the
Gantry provides the overload protection.
5. Dual-Function Footswitches activate C-arm and
Compression Device movement.

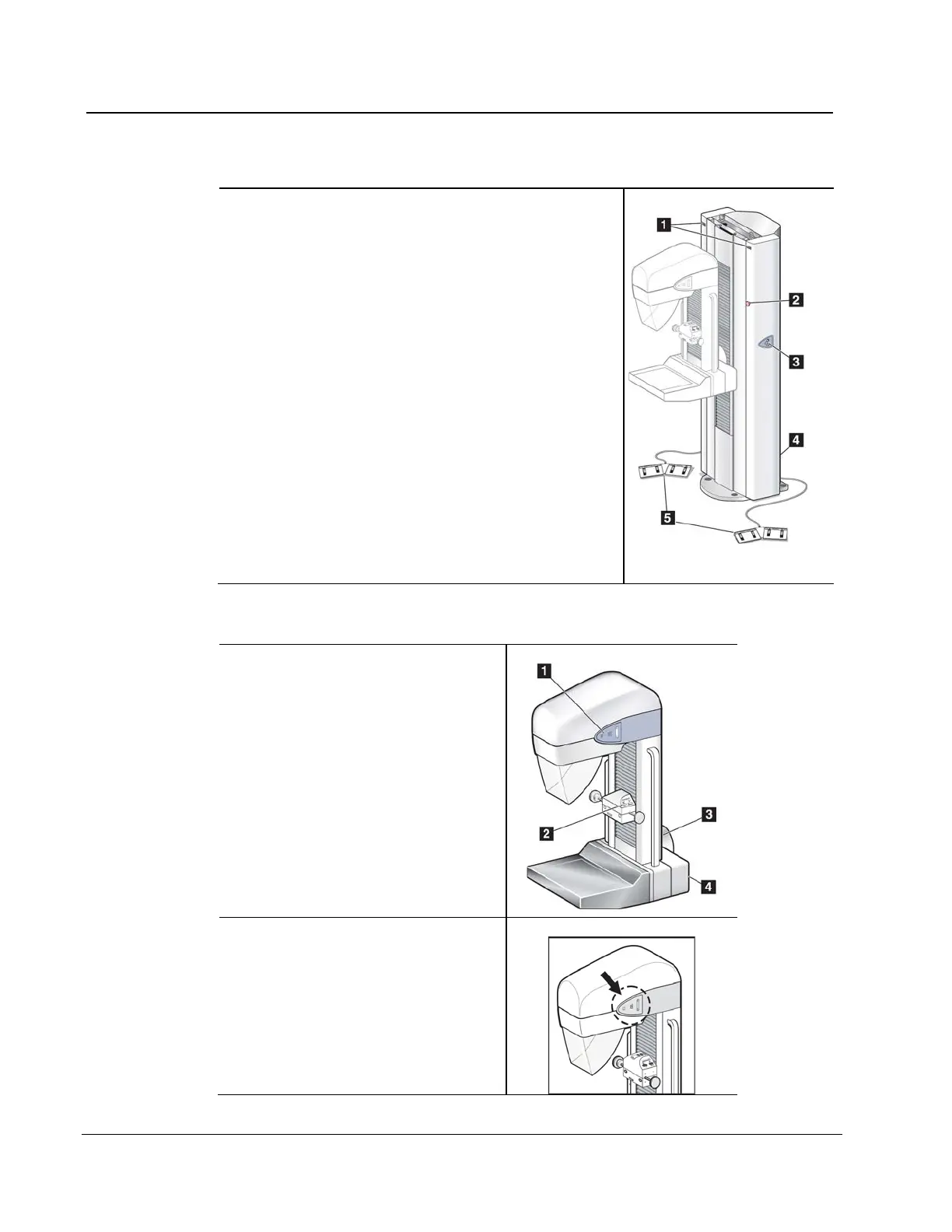

Figure 16: Gantry Controls
3.5.2 C-arm Controls and Displays
C-arm Controls
1. Tubehead Controls
2. Compression Device
3. Rear of the C-arm Side Rails
4. Rear of the Image Receptor
The Tubehead Controls on either side of
the x-ray tube side covers provide the
Collimator Override, C-arm Rotation,
and Light Field functions.
