Selenia User Guide
Chapter 5—The Selenia Accessories
52 MAN-03270 Revision 003
5.4.3 Localization Crosshair Device to the Localization Paddle Alignment
Note
Before you perform the following adjustment,
make sure the
Localization paddle is aligned to the edge of the image
receptor. (See How to Realign the Paddle Front Edge on page
46.)
1. Install a rectangular localization paddle.
2. Loosen the adjustment lock screw on the bottom
of the Crosshair Device. (See Number 1 in the
image to the right.)
3. Put a piece of white paper on the breast tray so
that you can see the shadows of the crosshairs.
4. Move the Localization paddle approximately 6
cm above the image receptor.
5. Turn on the light field.
6. Move the Crosshair Device until the rectangle of
light aligns with the opening in the localization
paddle.
7. Tighten the adjustment screw.

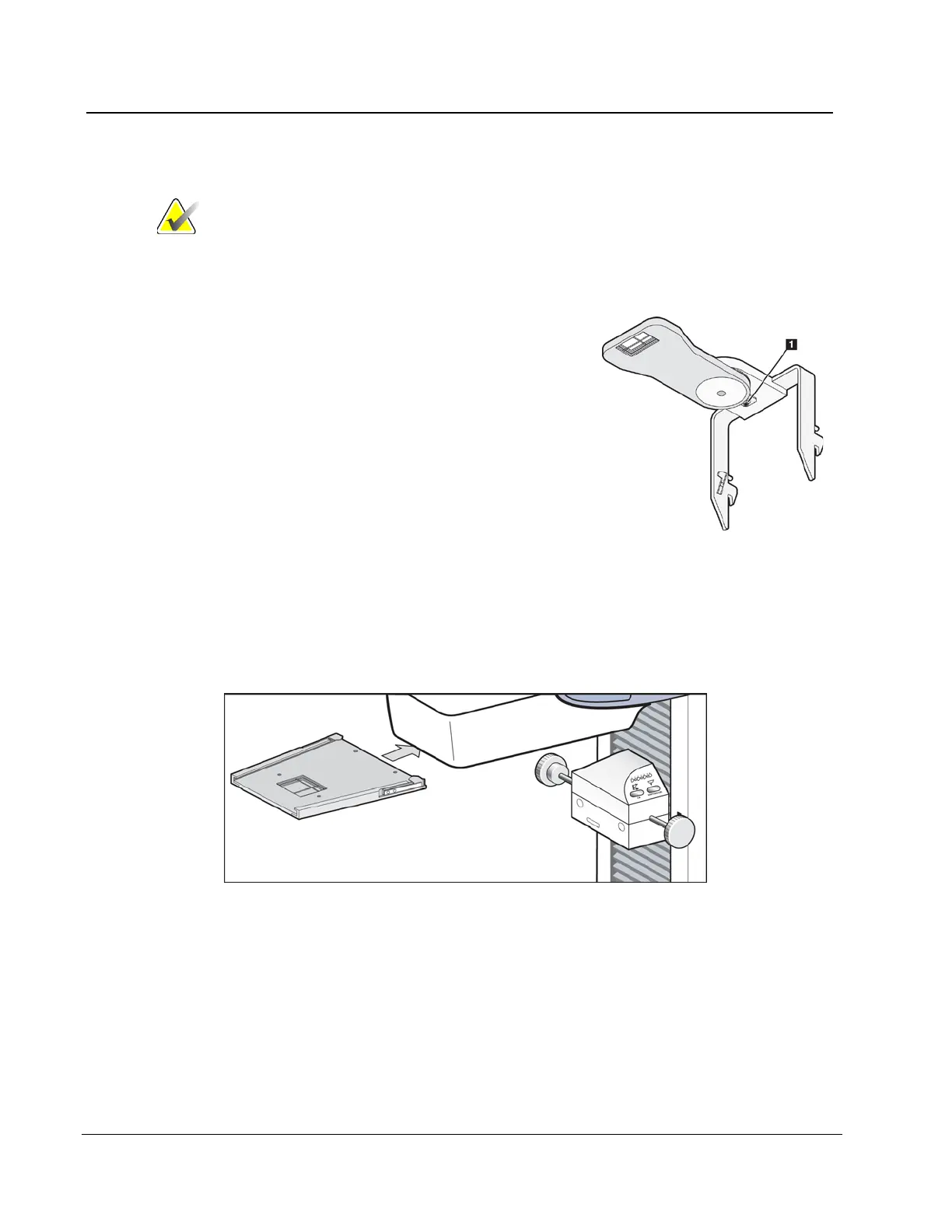

Figure 35: Adjustment Lock Screw
5.5 The Magnification Crosshair Device
Figure 36: Installation of the Magnification Crosshair Device
1. Remove the face shield from the tubehead.
2. Align the Magnification Crosshair Device with the grooves of the face shield rails.
3. Push forward until the device locks into position.
4. To remove the Magnification Crosshair Device, pull and slide the assembly toward
you.
