Honda BF135A - Page 320

6-9

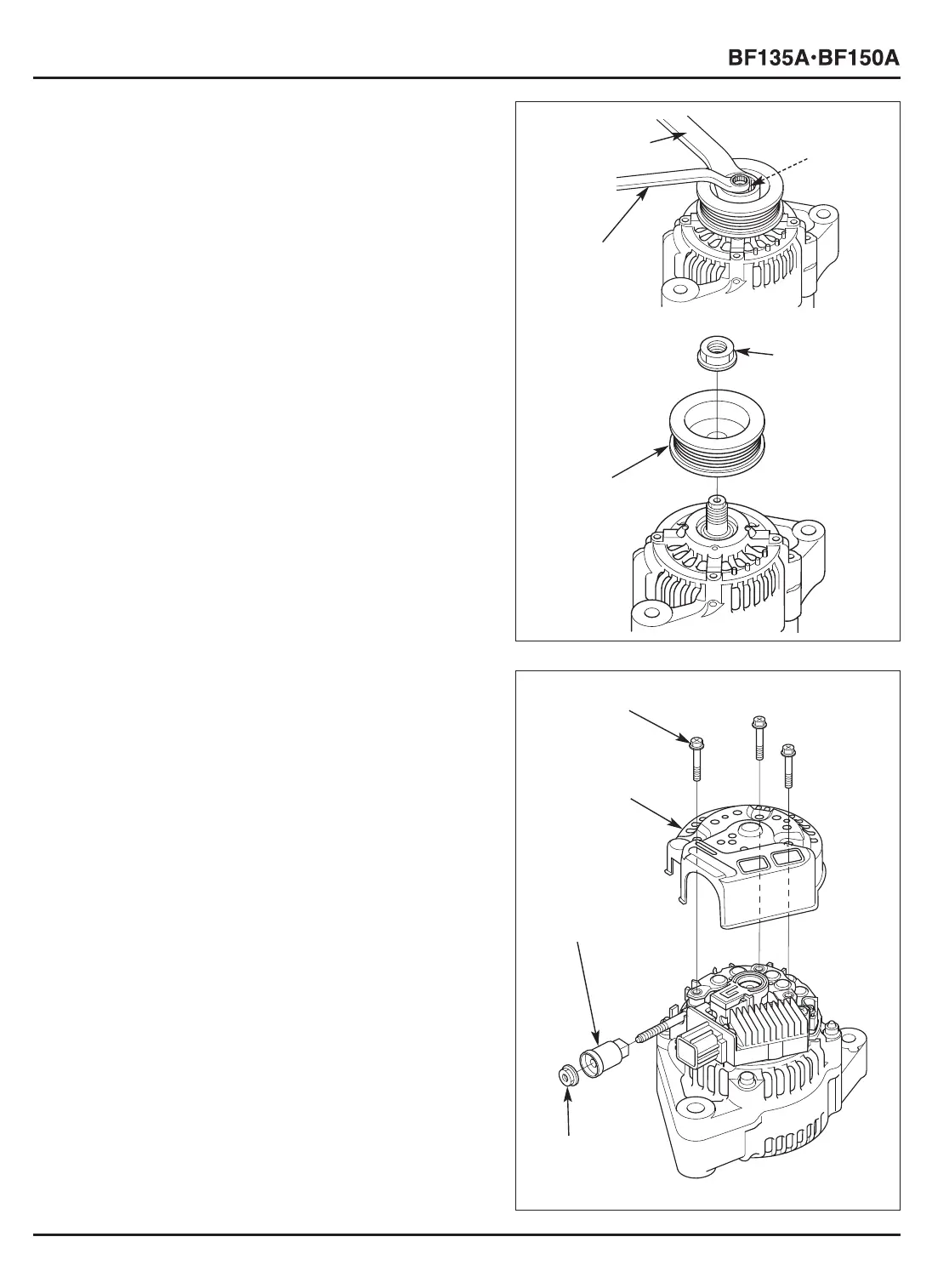

e. ALTERNATOR ASSEMBLY DISASSEMBLY
1) Loosen the pulley lock nut using a 22 mm offset wrench
and a 10 mm offset wrench.
2) Remove the pulley lock nut and the alternator pulley.
[3]
PULLEY
LOCK
NUT
[3]
PULLEY LOCK
NUT
[2]
22 mm OFFSET
WRENCH
[1]
10 mm OFFSET
WRENCH
3) Remove the 6 mm hex. nut from the insulator bushing and
remove the insulator bushing.
4) Remove the three rear end cover bolts and the rear end
cover.
[2]
REAR END
COVER
[1] REAR END COVER
BOLT (3)
[4]
6 mm HEX.
NUT
[4]
ALTERNATOR
PULLEY
[3]
INSULATOR
BUSHING
