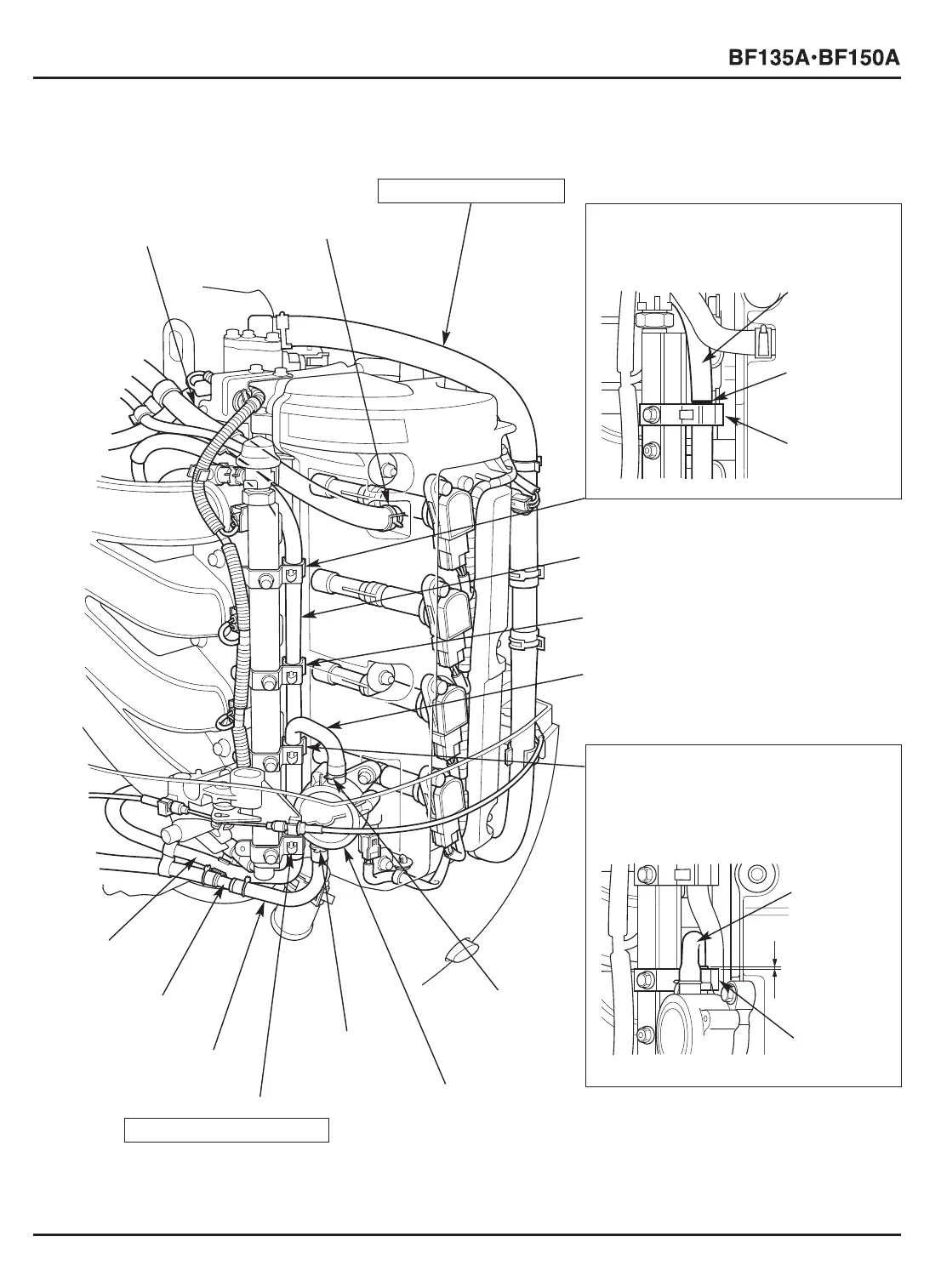

[1] BREATHER TUBE
[2]
TUBE CLAMP
D17.0
[9]
14.5 mm
TUBE
CLIP B1
[9]
14.5 mm TUBE
CLIP B1
[10] FUEL PUMP
[4] 14 mm FUEL TUBE CLIP
Install aligning the end of the 14 mm fuel
tube clip with the end of the white mark
on the air vent tube.
[4]-1
AIR VENT
TUBE A
[5] AIR VENT TUBE A
[4]-2
WHITE MARK
[4]-3
14 mm
FUEL TUBE
CLIP
[8] 14 mm FUEL TUBE CLIP
• Clamp the fuel tube B.
• Check the fuel tube B protection tube
for protrusion from the end of the 14
mm fuel tube clip. The protection tube
should protrude 2 mm (0.1 in) max.
from the clip.
[8]-1
FUEL TUBE B
[12]
FUEL TUBE D
[7] FUEL TUBE B
[7] FUEL TUBE B
[6]-1
2 mm (0.1 in)
MAX.
[8]-3
14 mm
FUEL TUBE
CLIP
[6] 14 mm FUEL TUBE CLIP
[11] 14 mm FUEL TUBE CLIP
Clamp the fuel tube B.
[3]
WATER RELIEF TUBE A
INSTALLATION: P. 2-66
[13] FUEL TUBE JOINT
