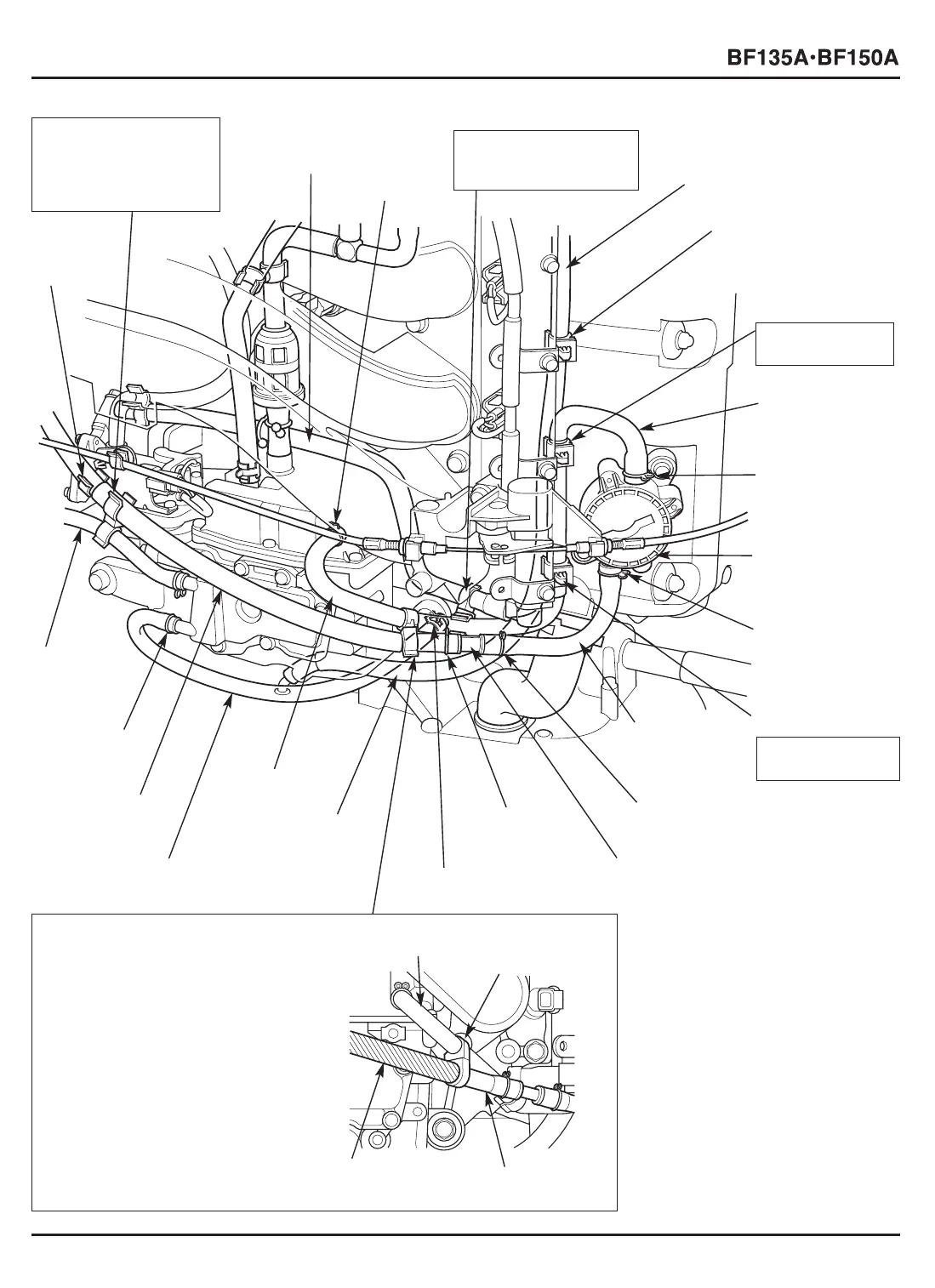

Honda BF135A - Page 83

2-73
[6]
AIR VENT
TUBE A
[8]
14 mm FUEL TUBE
CLIP
[7]
14 mm FUEL TUBE
CLIP
INSTALLATION:
P. 2-72
[9]
FUEL TUBE B
[10]
14.5 mm TUBE
CLIP B1
[4] TUBE CLIP B12
[4]
TUBE CLIP
B12
[1]
TUBE CLIP
[4] TUBE CLIP
B12
[4]
TUBE
CLIP
B12
[14] FUEL TUBE JOINT
[10]
14.5 mm TUBE
CLIP B1
[11] FUEL PUMP
[12]
14 mm FUEL TUBE
CLIP
Clamp the fuel
tube B.
[13]
FUEL TUBE D
[9]
FUEL TUBE B
[18] FUEL TUBE E
[1]
TUBE
CLIP
[17]
WATER TUBE F
[19]
7 x 400 mm
TUBE
[5] SENSOR HOSE CLIP
Clamp the fuel hose
(high pressure side)
and the fuel tube B.
[15] SENSOR HOSE CLIP
• Clamp the fuel tube B and fuel
tube E.
• Install the sensor hose clip
aligning with the end of the
protection tube on the fuel tube E.
[16]
AIR VENT
TUBE A
[2] HOSE CLAMP
[3]
FUEL HOSE
(HIGH
PRESSURE
SIDE)
[15]-4 PROTECTION
TUBE
[15]-2
SENSOR HOSE
CLIP
[15]-3
FUEL TUBE E
[15]-1
FUEL TUBE B
Set the fuel tube E in
the clamp of the larger
diameter side and the
7 x 400 mm tube in the
smaller diameter side.
