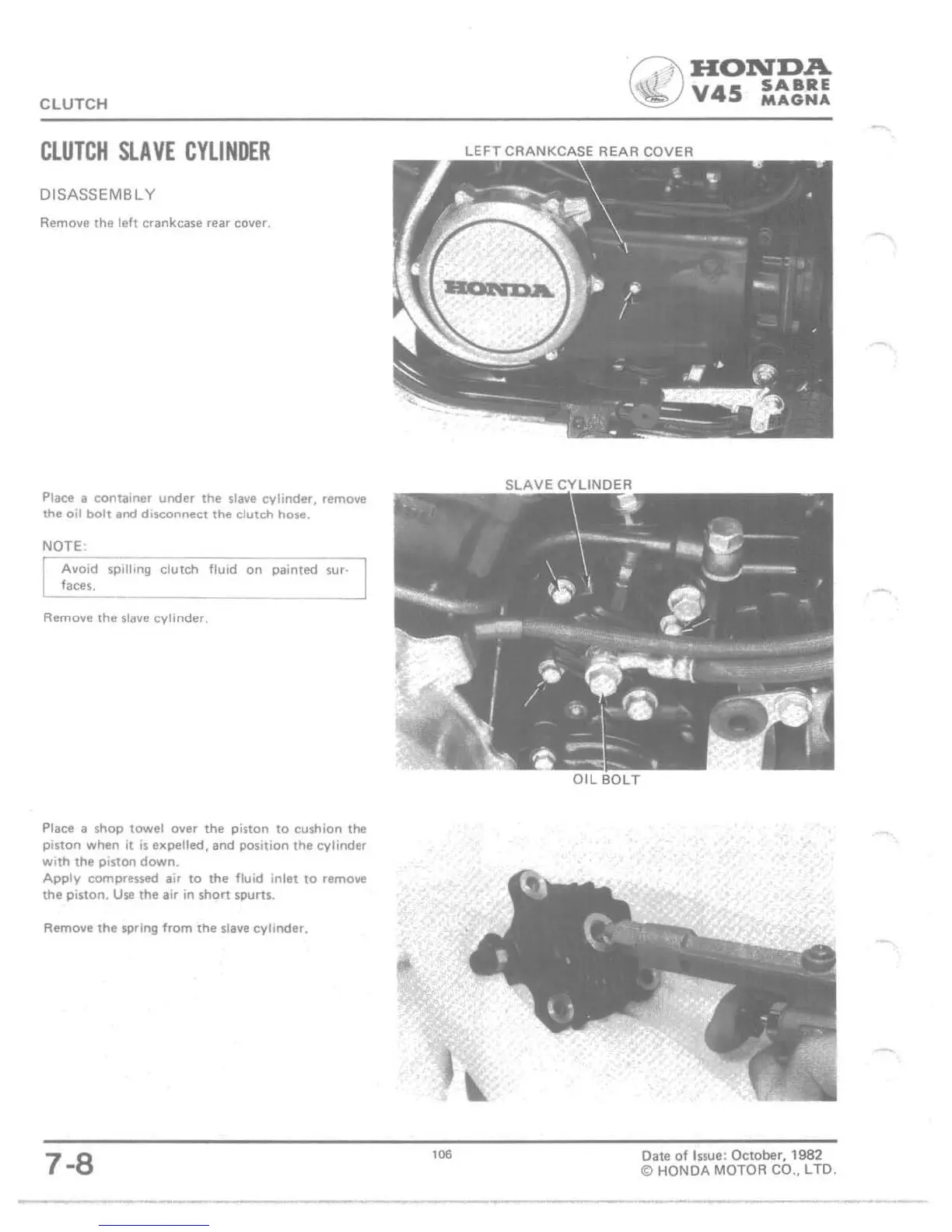

CLUTCH
CLUTCH
SLAVE
CYLINDER
DISASSEMBLY
Remove the left crankcase rear cover,
Place It
contamer
under
the
slave
cylinder,
remove
the
oil
bolt
and
disconnect
the
clutch
hose.
NOTE:
[
Avoid
spilling
clutch
fluid
on
painled
sur· I
faces.
Remove the
slave
cylinder.
Place I
shop
towel
over
the
piston
to
cushion
the
piston
when
it
is
e)(pelled, and
position
the
cylinder
with
the
piston
down.
Apply
compressed air
to
the
fluid
inlet
to
remove
the
piston. Use
the
air
in
short
spurts.
Remove
the
spring from the slave cylinder.
7-8
--
'06
Date
of
Issue: October,
1982
© HONOA MOTOA CO., L TO.
-
-
--

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Honda V45 MAGNA-VF750C 1982 and is the answer not in the manual?

Honda V45 MAGNA-VF750C 1982 Specifications

General IconGeneral
Bore x Stroke70.0 mm x 48.6 mm
Compression Ratio10.5:1
Cooling SystemLiquid cooled
Transmission6-speed
Final DriveShaft
Front SuspensionTelescopic fork
Rear SuspensionDual shocks
Front BrakesDual disc
Rear BrakesDrum
Rear Tire130/90-16
Seat Height765 mm (30.1 inches)
Fuel System4 x 32mm Keihin carburetors
