Honda V45 MAGNA-VF750C 1982 User Manual

-
-
~ HONDA
~ V45 ~~~::

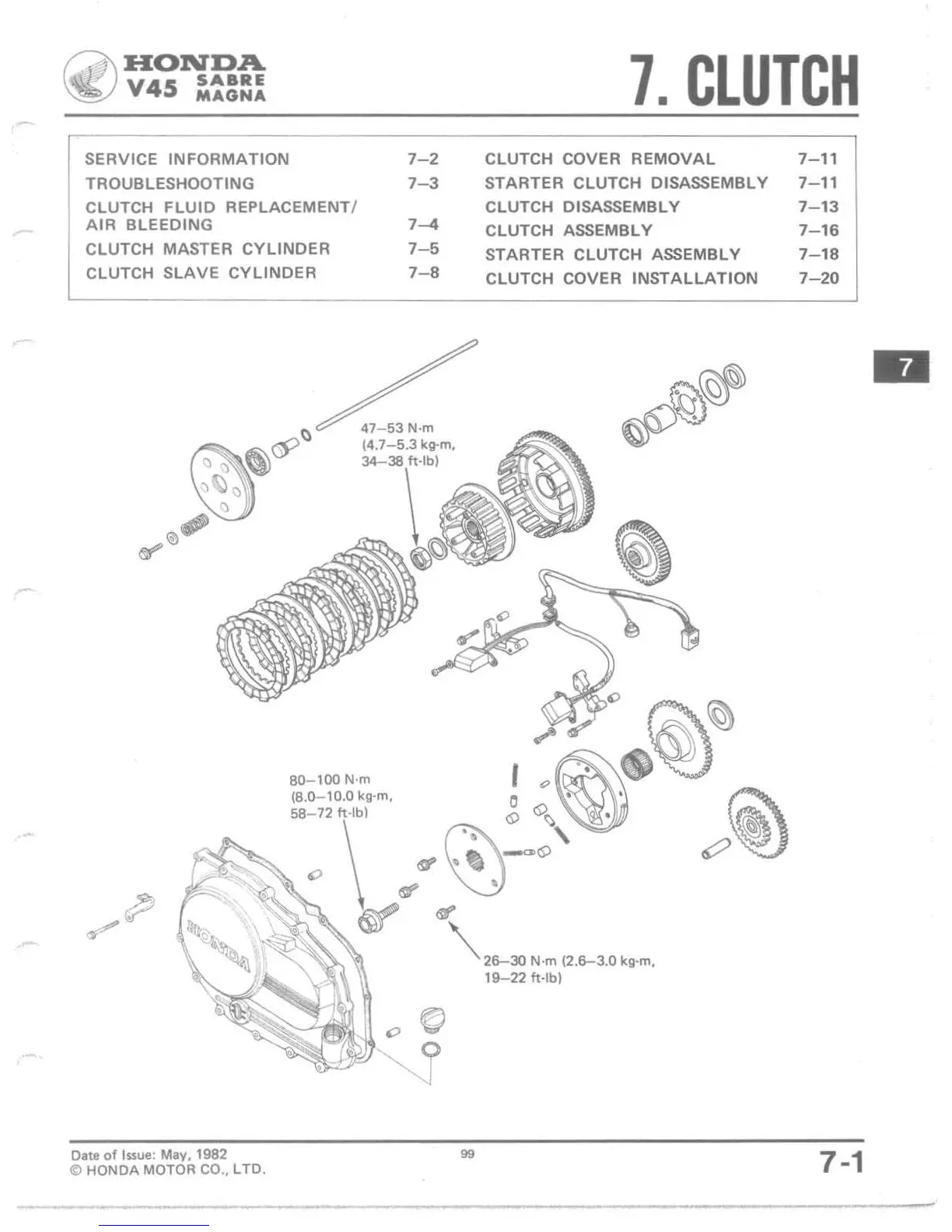

7. CLUTCH
SERVICE INFORMATION
7-2
TROUBLESHOOTING 7-3
CLUTCH FLUID REPLACEMENTI
AIR BLEEDING 7-4
CLUTCH MASTER CYLINDER
7-5
CLUTCH SLAVE CYLINDER
7-8
47-53 N·m
(4.7-5.3 kg-m.
80-100 N·m
(8.0-10.0 kg-m,
58-72 ft·'bl
'.
.,
~
CLUTCH COVER REMOVAL
STARTER CLUTCH DISASSEMBLY
CLUTCH DISASSEMBLY
CLUTCH ASSEMBLY
STARTER CLUTCH ASSEMBLY
CLUTCH COVER INSTALLATION
~
I "
0
0,>
~
0
\.
~O
0::>
•
'" 26-30 N-m (2.6-3.0 kg-m,
19-22 ft-Ib)
Olte of Issue: May, 1982
99
C> HONDA MOTOR CO., l TO .
-
--
7-11
7-11
7-13
7-16
7-18
7-20
7-1

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
