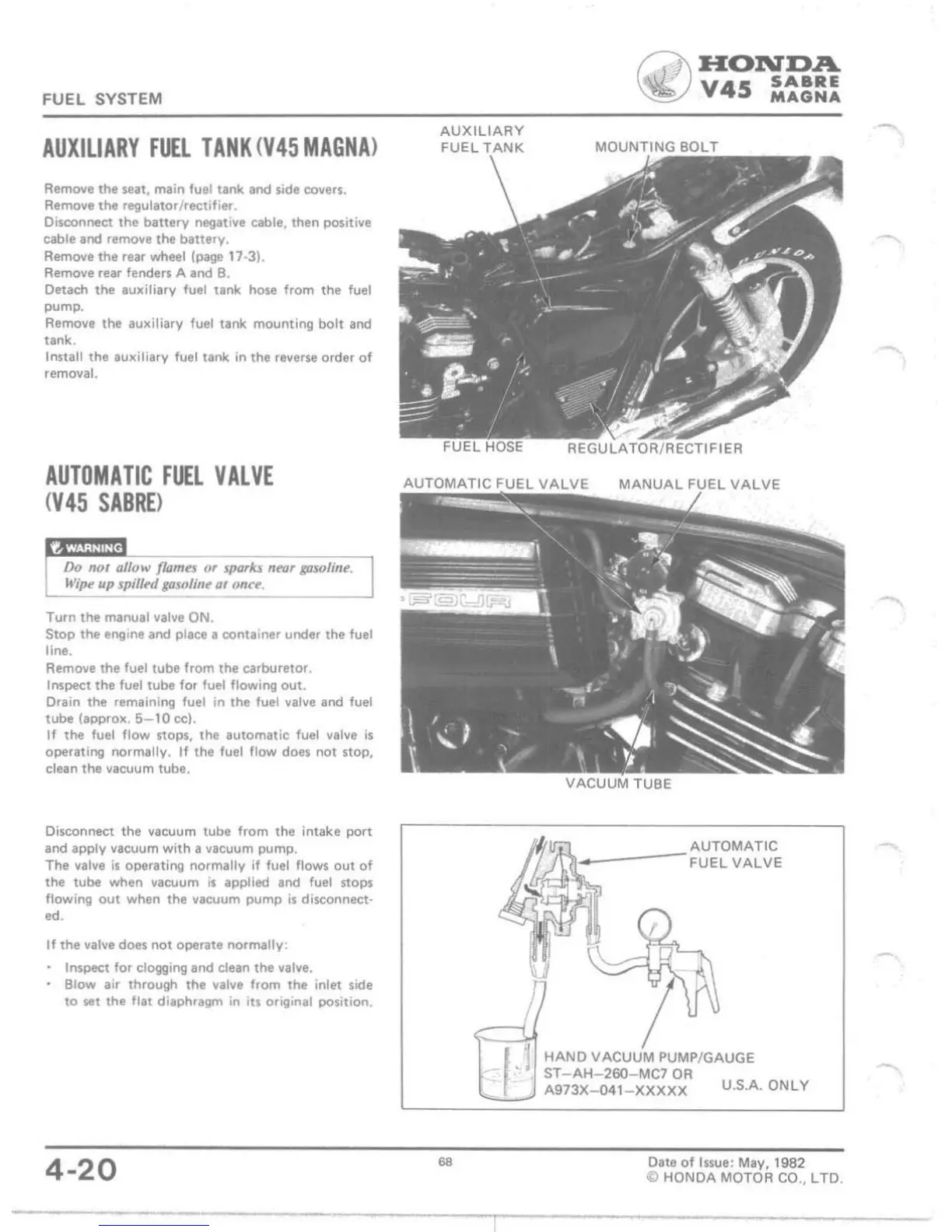

FUEL SYSTEM
AUXILIARY FUEL TANK (V45 MAGNA)
Remove the seat, main fuel tank and side covers.
Remove
the regulator/ rect ifier.
Disconnect the battery negative cable, then positive
cable and remove the battery.
Remove the rear wheel (page 17 ·3).
Remove felr fenders A and B.
Detach the auxiliary fuel tank hose from the fuel
pump,
Remove the auxiliary fuel tank mounting bolt and
tank .
Install the auxiliary fuel tank in the reverse order of
removal.
AUTOMATIC FUEL VALVE
( V45 SABRE)
~WARNING
Do nOI ollow [1.amn or sparks ntor gasoline.
Wipe
up spill~d gasoline 01 OIlU.
Turn the manual valve ON.
Stop the engine and place a conta iner under the fuel
line.
Remove the fuel tube Irom the carburelOr.
Inspect the fuel tube for fuel flowing out.
Drain the remaining fuel in the fuel valve and fuel
tube (apprOK, 5-10 cel,
If the fuel flow stops, the automatic fuel valve is
operating normally. If the fuel flow does not stop,
elean the ~acuum tube.
Disconnect
the vacuum tube from the intake port
and apply vacuum with a vacuum pump.
The valve is operating normally if fuel flows out of
the tube when vacuum is applied and fuel stops
flowing out when the vacuum pump is disconnect·
od.
If the valve does not opefilte normally:
Inspect
for elogging and clean the valve.
Blow
air through the valve from the in let side
to set the flit diaphragm in its ori9inal position.
4-20
AUXILIARY
FUEL TANK
68
MOUNTING BOLT
MANUAL FUEL VALVE
HAND PUMP/GAUGE
ST -A H- 260- MC7 OR
A973X-041-XXXXX U.S.A. ONLY
Date of Issue: May, 19 82
C) HONDA MOTOR CO., L TO.
--
-----------------~------
- -

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
