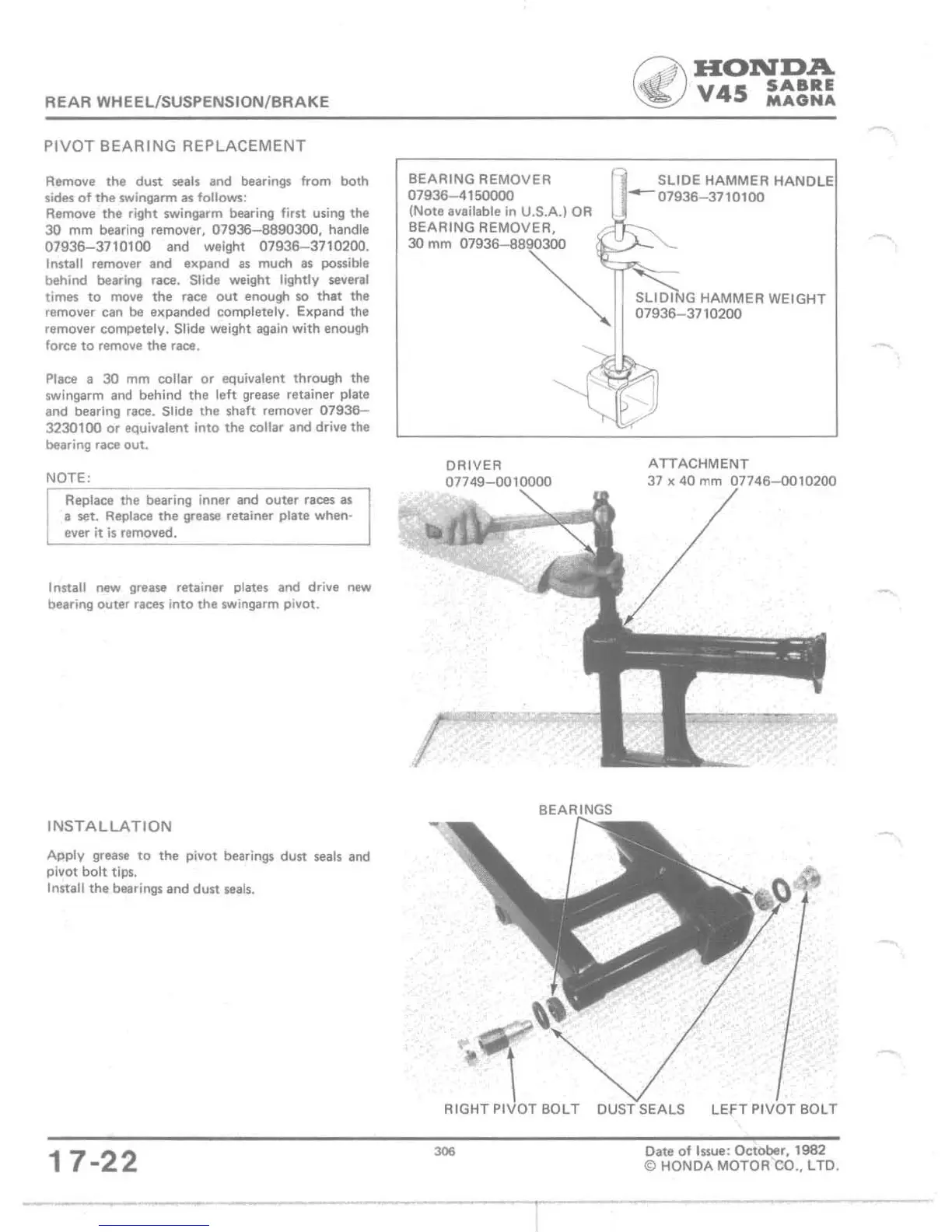

REAR WHEEL/SUSPENSION/BRAKE
PIVOT BEARING
REPLACEMENT
Remove the dust seals and bearings trom both
sides of the swingarm ilS follows:
Remove the right swingarm bearing first using the
30 mm bearing remover, 07936-8890300, handle
07936-3710100 and weight 07936-3710200.
Install remover and expand as much 15 possible
behind bearing nice. Slide weight lightly several
times to move the face out enough so that the
remover can be expanded completelv. Expand the
remover competely. Slide weight again with enough
force to remove the raOl.
Place a 30 mm collar or eQuivalent through the
swingarm and behind the left grease retainer plate
end bearing race. Slide the shaft remover 07936-
3230 100 or equivalent into the collar and drive the
bearing race out.
NOTE:
Replace the bearing inner and outer faces as
a set. Replace the grll858 retainer plate when·
ever it is removed.
Install new grease retainer plates afld drive new
bearing
outer races into the swingarm pivot.
INSTALLATION
Apply grease to the pivot bearings dust seals afld
pivot bolt tips,
Install
the bearings and dust eals.
17-22
--
BEARING REMOVER
07936-4150000
(Note available in U.S.A.' OR
BEARIN"G~:',~~~~~~lo
30mm 0
DRIVER
RIGHT PI,IOT BOLT
306
--_ . ...., , ---
I
,
f4', HONDA
~ V45 ~~:::
SLIDE HAMMER HANDLE
I HAMMER WEIGHT
07936-3710200
ATTACHMEN~;T74';~lo102'OC
37x40mm~
LEFT PIVOT BOLT
Date of Issue: October, 1982
€I HONDA MOTOR CO., LTD .
-
-
