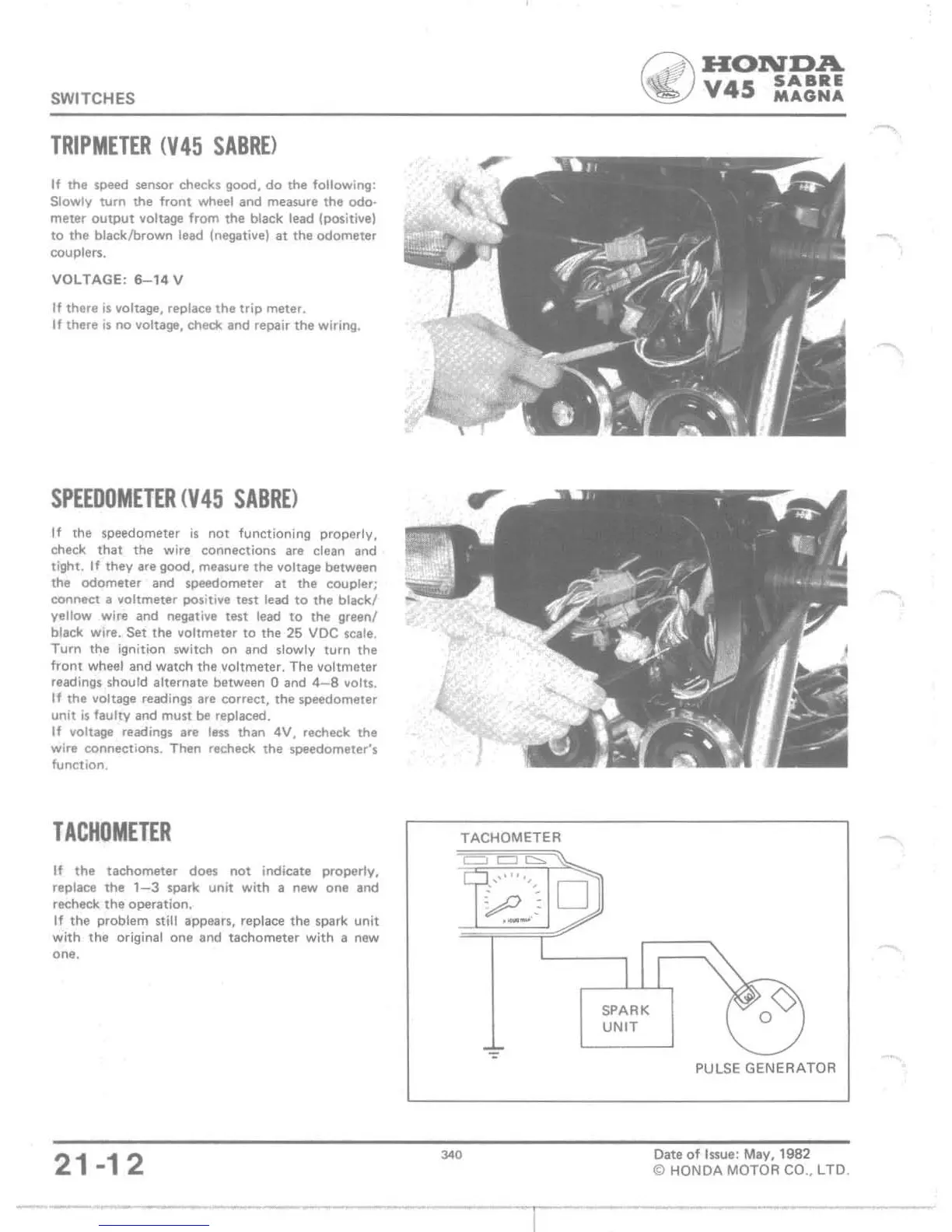

SWITCHES
TRIPMETER (V 45 SABRE)
If the speed sensor checks good, do the following:
Slowly
turn the front wheel and measure the odo-
meter output voltage from the black lead (positive)
to the black/brown lead (negative) at the odometer
couplers.
VOLTAGE: 6-14 V
If there is voltage, replace the trip meter.
If there is no lIoltage, check and repair the wiring.
SPEEDOMETER (V45 SABRE)
If the speedometer is not functioning properly,
check that the wire connections are clean and
tight. If they .re good, melnlra the vollage between
the odometer and speedometer at the coupler;
connect a voltmeter positive test lead to the black!
yellow wire and negative test lead to the greenl
black wire. Set the voltmeter to the 25 VDC scale.
Turn the ignition switch on and slowly turn the
front wheel and walch the voltmeter. The voltmeter
readings should alternate between 0 and 4 -8 11011$.
If the lIoltage readings are correct, the speedometer
unit is faulty and must be replaced.
If voltage readings are tlSs than 4V, recheck the
wire connections. Then recheck the speedometer's
function.
TACHOMETER
If the tachometer does not indicate property,
replace the 1-3 spark unit with a new one and
recheck the operation.
If the problem still appears, replace the spark unit
with the original one and tachometer with a new
one.
21-12
--
- -
-
TACHOMETER
".
Q HONDA
~ V45 ~~::!
SPARK
UNIT
PULSE GENERATOR
Date of Issue: May, 1982
© HONDA MOTOR CO., LTD .
-
-
-

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
