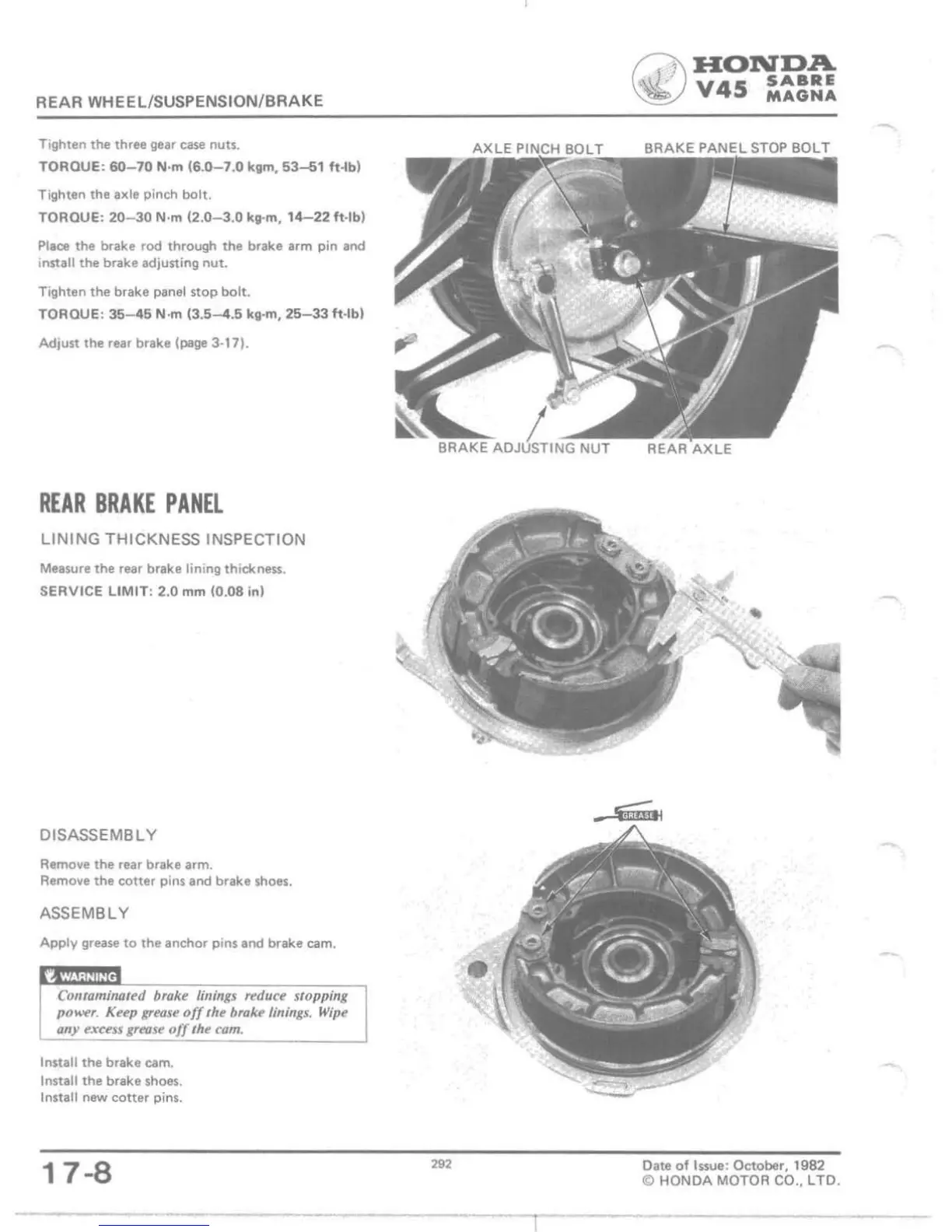

REAR WHEEL/SUSPENSION/BRAKE
Tighten the three geer case nuts.
TORQUE: 60-70 N·m (6.0-7.0 kgm, 53-51 ft·lb)
Tighten the axl' pinch bolt.
TORQUE: 20-30 N-m (2.0-3.0 kg-m, 14-22 ft-Ibl
Place the brake rod through the brake arm pin and
install the brake adjusting nut.
Tighten the brake panel stop bolt.
TOROUE: 35-45 N·m (3.5-4.5 kg-m, 25-33 ft-Ibl
Adjust the rear brake (page 3·17).
REAR BRAKE PANEL
LINING THICKNESS INSPECTION
Mellsure the feaf brake lining thidtness.
SERVICE
LIMIT: 2.0 mm (0,08 in)
DISASSEMBLY
Aemove the rear brake arm.
Aemove
the cotter pins and brake shoes.
ASSEMBl Y
Apply grease to the anchor pins and brake cam.
t.WAANING
Con'amifiQ,~d brake lillings reduu stopping
power, Keep "NSI off the brokt! linings. Wipe
any exuu ,r('tut' 011 the cam.
In$tall the brake cam.
Install the braka ShOMo
Install new cotter pins.
17-8
---
I
292
W HONDA
~ V45 ~~~:!
Date of Issue: October, 1982
© HONDA MOTOR CO., lTD.
-
-
•
-
--

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
