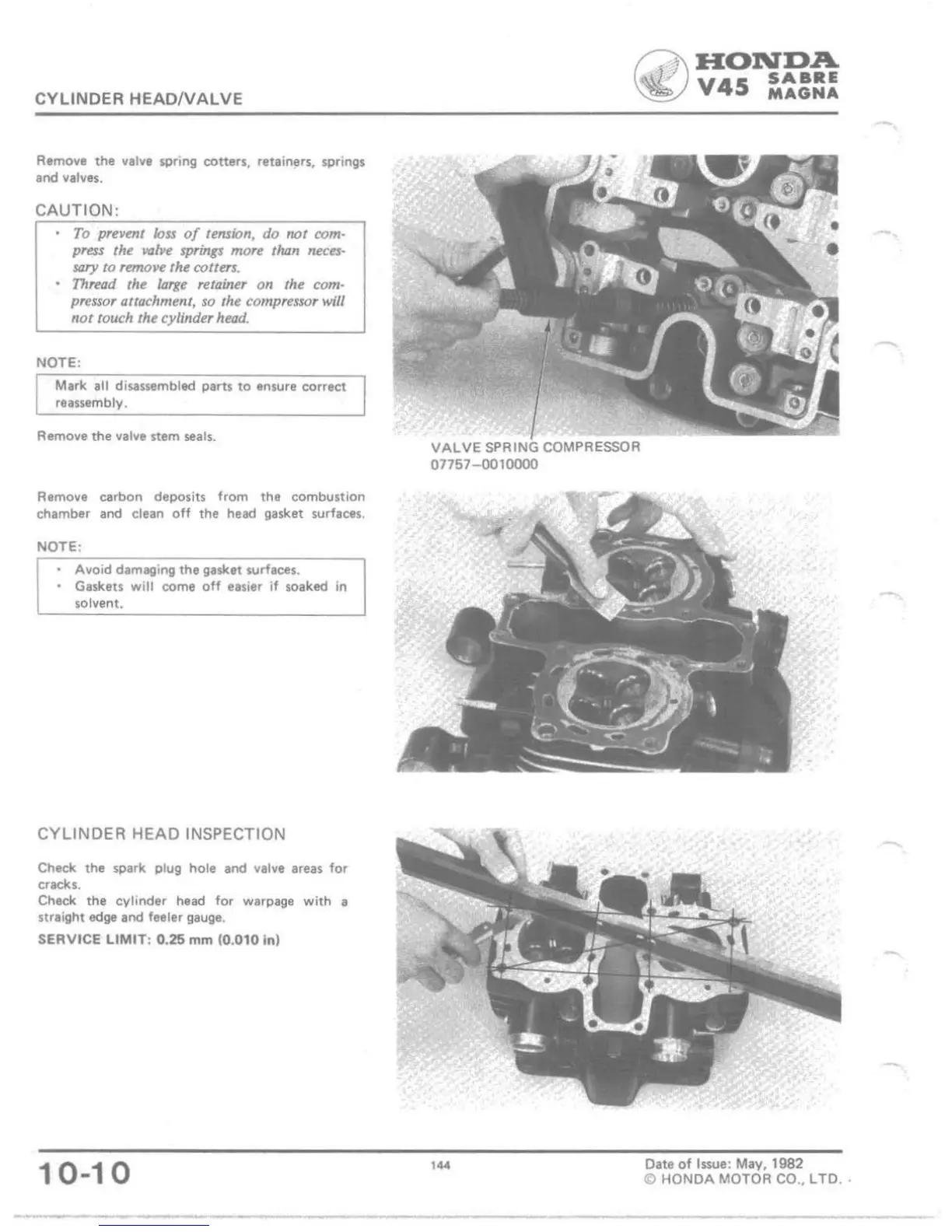

CYLINDER HEADNALVE
Remove the YII~ spring cottefs, retainers, springs
and vailles.
CAUTION,
To prevmt lou o{ tension, do not com·
pnu the ""we tprinp more than necn·
sary to remove the cotters.
• Thread the large retainer on the com-
pressor attachment, so the compressor will
not touch the cylinder head.
NOTE:
Mark all di5a5Sembled parts to ensure correct
reassembly.
Remov, the valvI stem 5eals.
Ramove carbon deposits from the combustion
chamber and clean off the head gasket surfaces.
NOTE:
Avoid damaging the gasket wrfaces.
Gaskets will come off easier if soaked in
solvent.
CYLINDER HEAD INSPECTION
Check the spa rk plug hole and lIalvl areas for
cracks.
Check the cylinder hnd for warpage with I
straight edge and feeler gauge.
SERV ICE LIMIT: 0. 25 mm {O.OlO inl
10-10
-
- --
-- -
r;J\ HONDA
~ V45 ~!:=:
VALVE COMPRESSOR
07757-0010000
, ..
Date of Iswe: May. 1982
€> HONDA MOTOR CO. , LTD ..
- --
-.
-
-
-

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
