Honda V45 MAGNA-VF750C 1982 User Manual

-
-

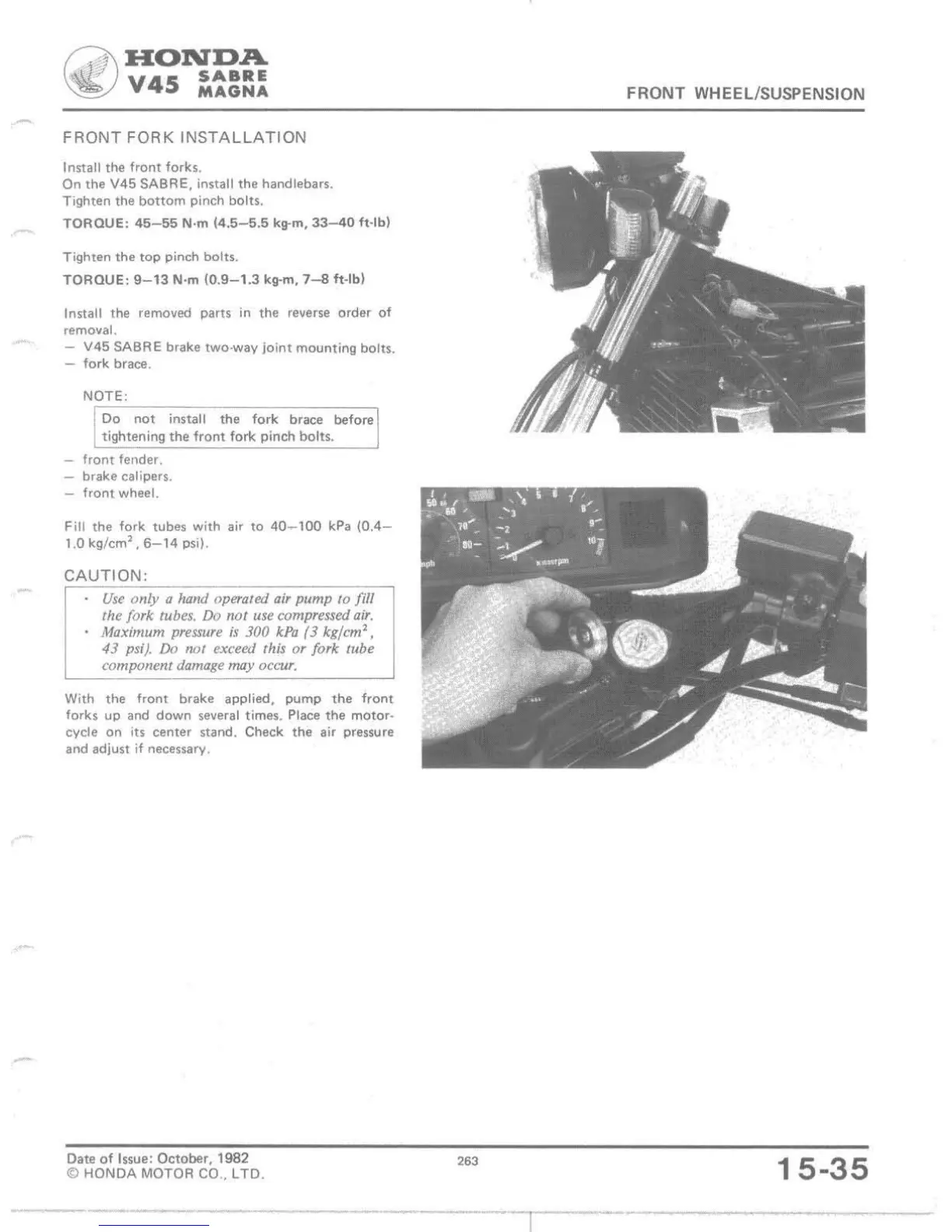

FRONT FORK INSTALLATION
Install the front forks .
On the V45 SABRE, install the handlebars.
Tighten the bottom pinch bolts.
TORQUE: 45-55 N·m (4.5-5.5 kg-m, 33-40 ft· lb )
Tighten the top pinch bolts .
TORQUE: 9- 13 N·m (0.9- 1.3 kg- m, 7-8 f t-Ib)
Install the removed parts in the reverse order of
removal.
V45 SABRE brake two-way joint mounting bolts.
fork brace.
NOTE:
Do not install the fork brace before
tightening the front fork pinch bolts.
front lender.
brake caliPt'!fs.
front wheel.
Fill the fork tubes with air to 40 - 100 kPa (0.4-
1.0 kg /em', 6-14 psi).
CAUTION:
Use only a hand operated air pump to fill
the fork tu.bes. Do not use compressed air.
Maximum pressure ;s 300 kPa (3 kg/cm~,
43 psi ), Do nor exceed this or fork tube
component damage may occur.
With the front brake applied, pump the front
forks up and down several times. Place the motor·
cycle on its center stand. Check the air pressure
and adjust
if necessary.
Date of Issue: October, 1982
© HONDA MOTOR CO., LTD.
--
FRONT WHEE L/ SUSPENSION
2.3
15-35
-,-----------
-
